AXUH85L-ANXGBA (2020)
Toyota Venza

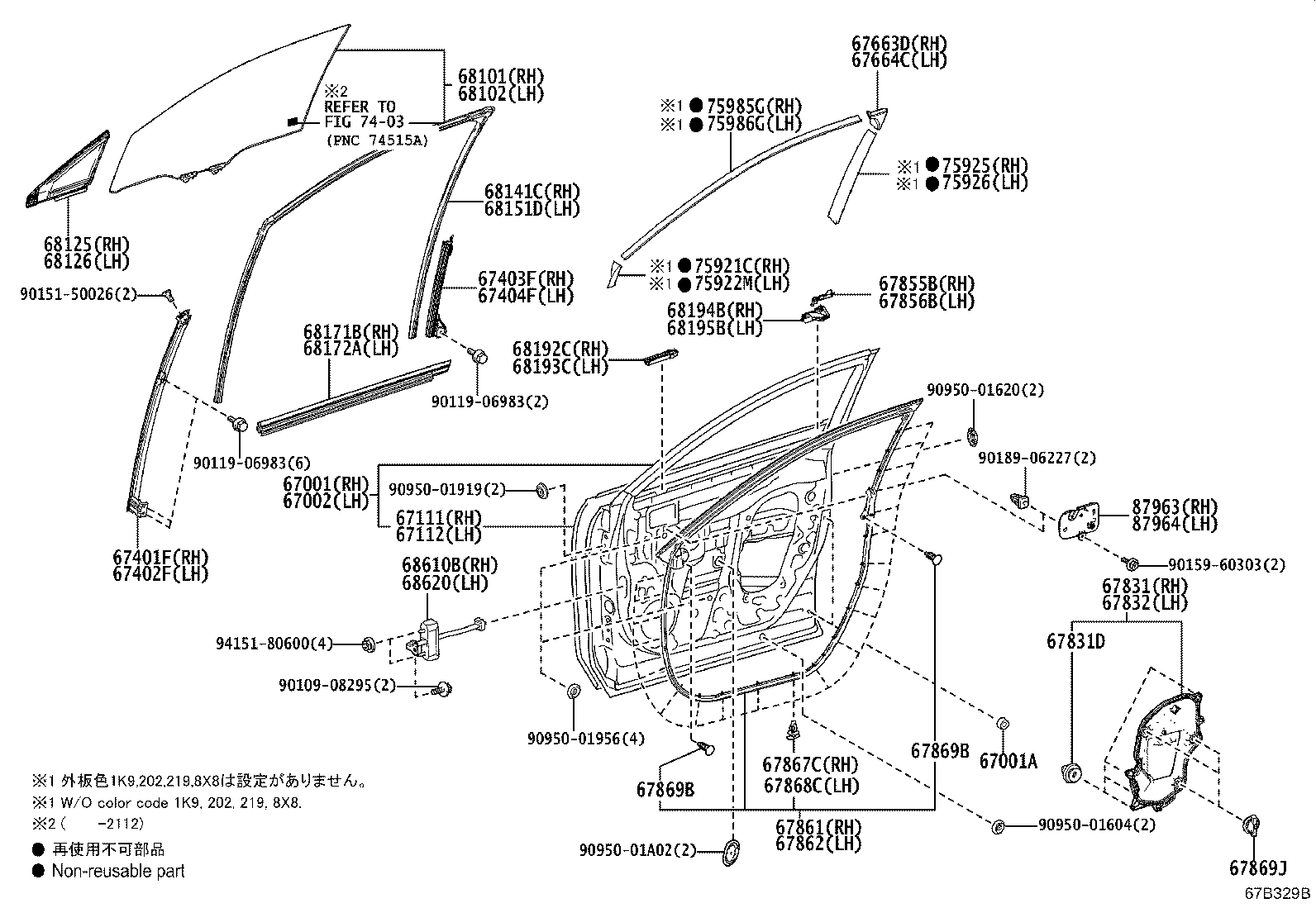

ILLUST NO. 1 OF 2(2007- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-48200 |
AXUH85..USA |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09137 |
AXUH85 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-48200 |
AXUH85..USA |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-48090 |
AXUH85 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-48090 |
AXUH85 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-48010 |
AXUH85 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-48010 |
AXUH85 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-42050 |
AXUH85 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-42050 |
AXUH85 |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48050 |
AXUH85 |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48050 |
AXUH85 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-48080 |
AXUH85 |
1 | ||
| 67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER) | ||||
| 90467-09206 |
AXUH85 |
8 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-48080 |
AXUH85 |
1 | ||
| 67855B - PROTECTOR, FRONT DOOR PANEL, RH | ||||
| 67855-42030 |
AXUH85 |
1 | ||
| 67856B - PROTECTOR, FRONT DOOR PANEL, LH | ||||
| 67856-42030 |
AXUH85 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-48130 |
AXUH85 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-48130 |
AXUH85 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AXUH85 |
21 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AXUH85 |
21 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-26050 |
AXUH85 |
4 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-26050 |
AXUH85 |
4 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-47010 |
AXUH85 |
6 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-48260 |
AXUH85..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER) |
1 | ||
| 68101-48250 |
AXUH85 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-48240 |
AXUH85 |
1 | ||
| 68102-48250 |
AXUH85..USA ANTI-THEFT SYSTEM-WITH(IMMOBILIZER) |
1 | ||
| 68125 - GLASS, FRONT DOOR FIX WINDOW, RH | ||||
| 68125-48030 |
AXUH85 |
1 | ||
| 68126 - GLASS, FRONT DOOR FIX WINDOW, LH | ||||
| 68126-48030 |
AXUH85 |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-48090 |
AXUH85 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-48090 |
AXUH85 |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-48080 |
AXUH85 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-48080 |
AXUH85 |
1 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-48010 |
AXUH85 |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68193-48010 |
AXUH85 |
1 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-48010 |
AXUH85 |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-48010 |
AXUH85 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-48100 |
AXUH85 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-48100 |
AXUH85 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-48070 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-48070 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75925 - TAPE, BLACK OUT, NO.3 RH | ||||
| 75965-48020 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75926 - TAPE, BLACK OUT, NO.3 LH | ||||
| 75966-48020 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75985G - STRIPE, FRONT DOOR OUTSIDE, RH | ||||
| 75985-48080 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75986G - STRIPE, FRONT DOOR OUTSIDE, LH | ||||
| 75986-48080 |
AXUH85 0 OR 1PIECE,REF.ILL. |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-48030 |
AXUH85 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-48030 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06983 | ||||
| 90151-50026 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90950-01604 | ||||
| 90950-01620 | ||||
| 90950-01919 | ||||
| 90950-01956 | ||||
| 90950-01A02 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7403 | ||||

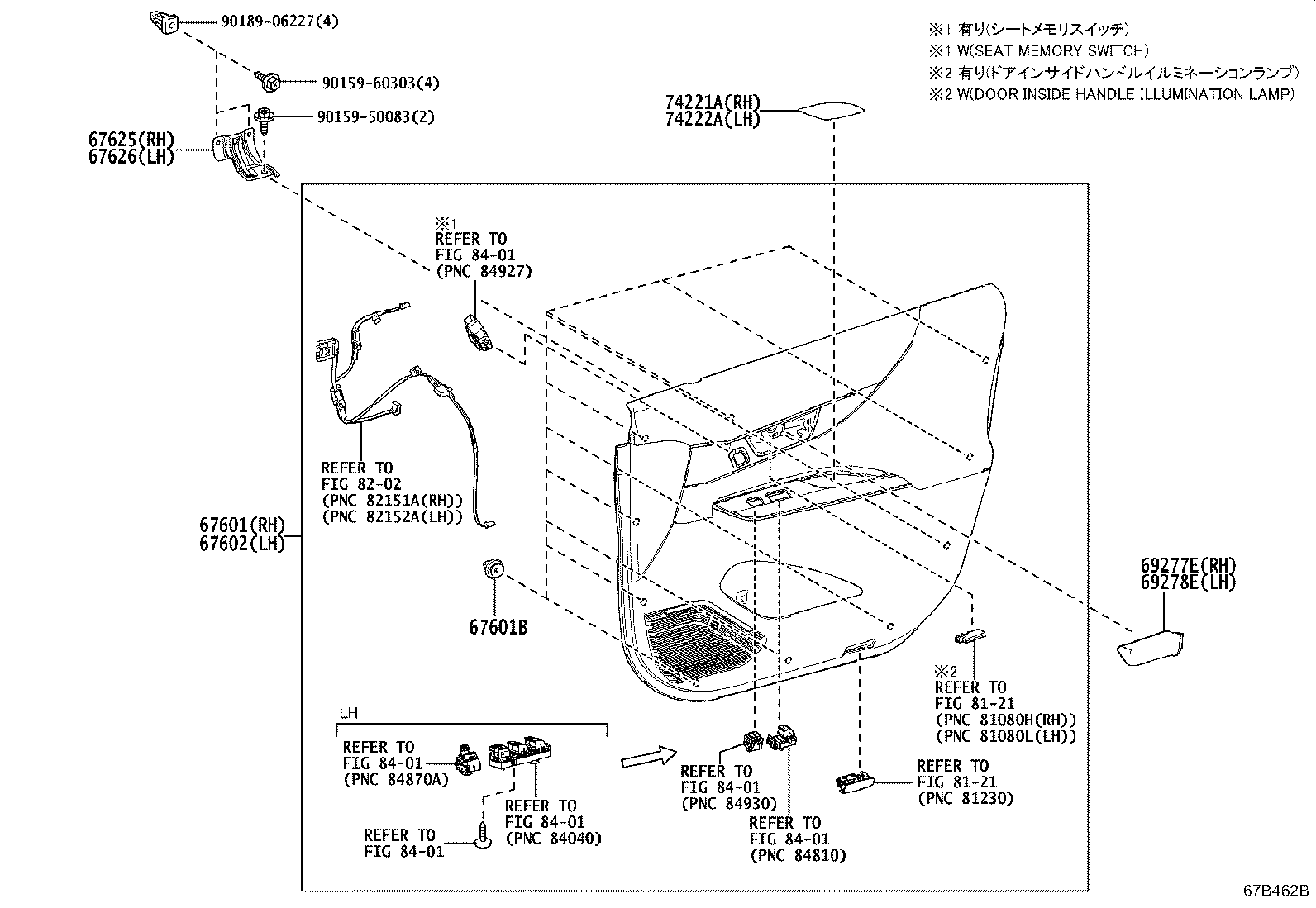

ILLUST NO. 2 OF 2(2007- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-48E90C2 |
AXUH85..G,S BLACK/DK.GRAY/DK.CHESTNUT,TRIM4# |
1 | ||
| 67610-48E90C4 |
AXUH85..G,S BLACK/BLACK,TRIM2# |
1 | ||
| 67610-48E90C0 |
AXUH85..G,S BLACK/DK.GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AXUH85 |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-48E90C4 |
AXUH85..G,S BLACK/BLACK,TRIM2# |
1 | ||
| 67620-48E90C2 |
AXUH85..G,S BLACK/DK.GRAY/DK.CHESTNUT,TRIM4# |
1 | ||
| 67620-48E90C0 |
AXUH85..G,S BLACK/DK.GRAY/MEDIUM GRAY,TRIM1# |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-48020 |
AXUH85 |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67626-48020 |
AXUH85 |
1 | ||
| 69277E - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-48070 |
AXUH85 |
1 | ||
| 69278E - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69278-48070 |
AXUH85 |
1 | ||
| 74221A - COVER, FRONT DOOR ARMREST, RH | ||||
| 74221-48050 |
AXUH85 |
1 | ||
| 74222A - COVER, FRONT DOOR ARMREST, LH | ||||
| 74221-48050 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90159-50083 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
