AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

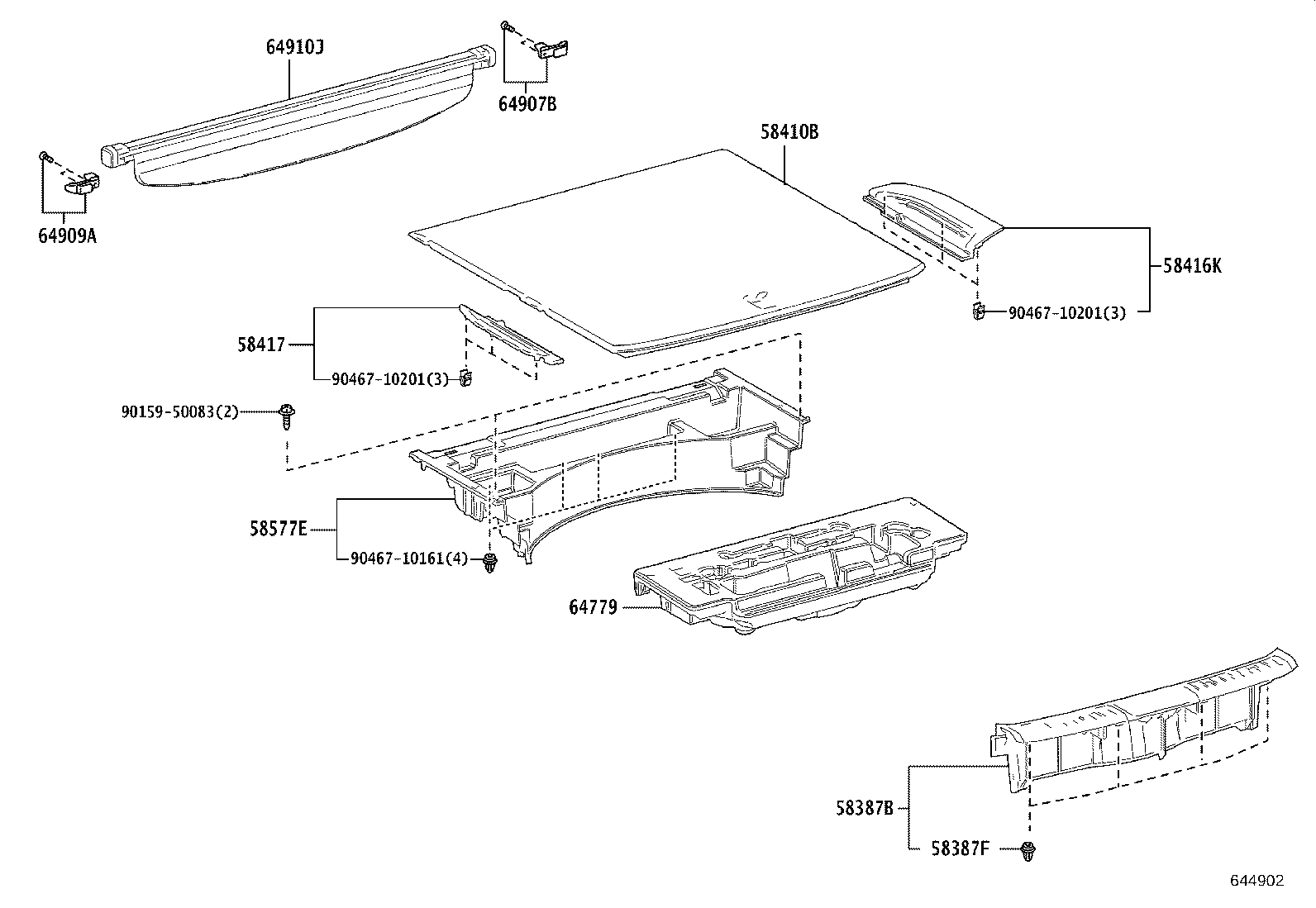

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

diagram 58387B 58387F 58410B 58416K 58417 58577E 64779 64907B 64909A 64910J 9015950083 9046710161 9046710201 9046710201
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58387-48130C0

AXUH85..G,S

BLACK,TRIM1#,2#,4#

 1
58387F - CLIP, REAR FLOOR FINISH PLATE
90467-10161

AXUH85

 4
58410B - BOARD ASSY, DECK
58410-48200C7

AXUH85..G,S

BLACK,TRIM1#,2#,4#

 1
58416K - BOARD, REAR FLOOR, NO.2
58416-48030C0

AXUH85..G,S

BLACK,TRIM1#,2#,4#

 1
58417 - BOARD, REAR FLOOR, NO.3
58417-48070C0

AXUH85..G,S

BLACK,TRIM1#,2#,4#

 1
58577E - PLATE, REAR FLOOR MAT SUPPORT SIDE, NO.1
58577-48030

AXUH85

 1
64779 - TRAY, SPARE WHEEL COVER
64779-48070

AXUH85

 1
64907B - STOPPER SUB-ASSY, TONNEAU COVER, RH
64907-48010

AXUH85

 1
64909A - STOPPER SUB-ASSY, TONNEAU COVER, LH
64909-48010

AXUH85

 1
64910J - COVER ASSY, TONNEAU
64910-48160C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
Common parts
90159-50083
90467-10161
90467-10201

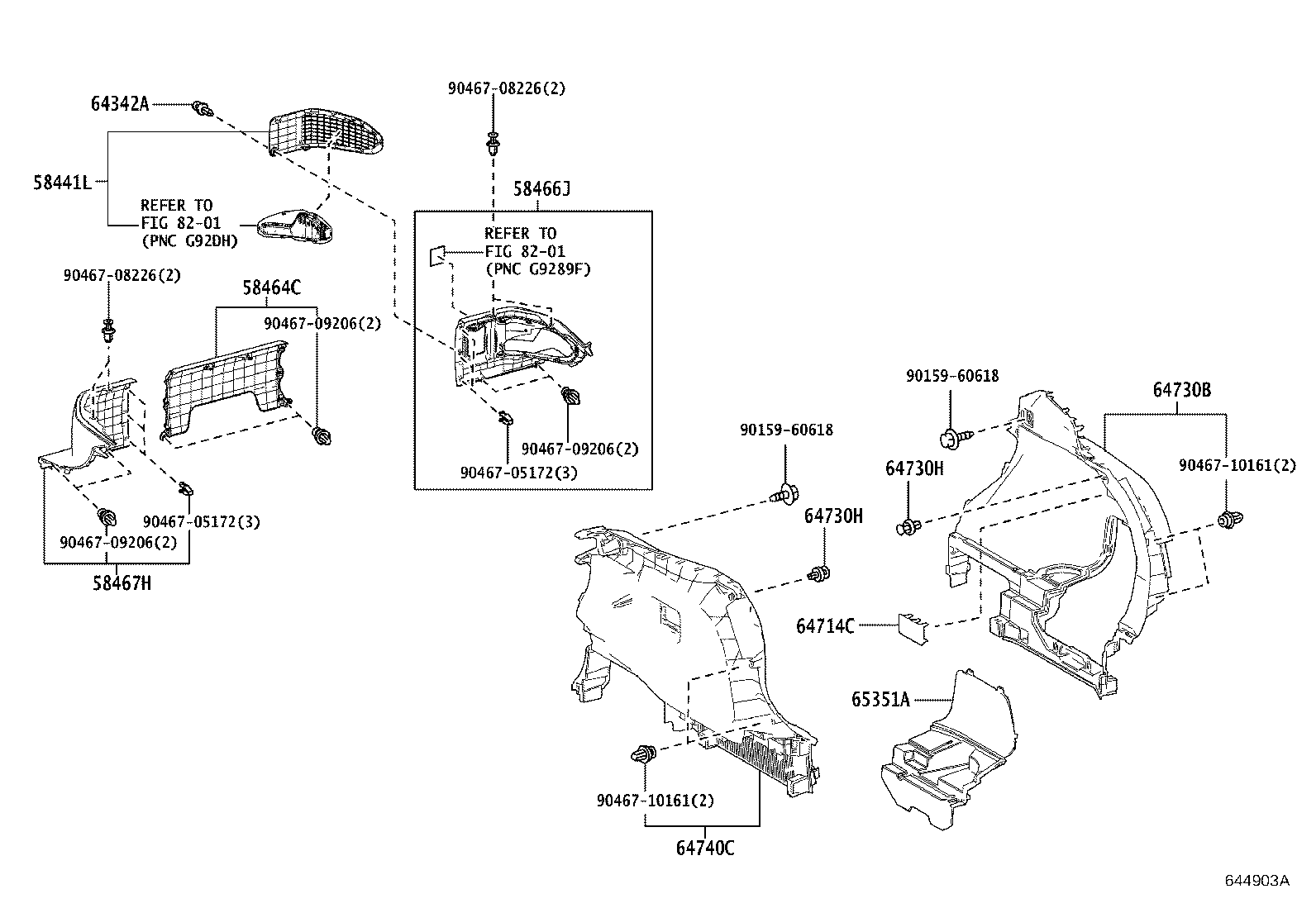

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

diagram 58441L 58464C 58466J 58467H 64342A 64714C 64730B 64730H 64730H 64740C 65351A 8201 8201 9015960618 9015960618 9046705172 9046705172 9046708226 9046708226 9046709206 9046709206 9046709206 9046710161 9046710161
Part # Description Qty Price
58441L - COVER, BATTERY SERVICE HOLE
58441-42020C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
58464C - BOARD, BATTERY SERVICE COVER, NO.1
58464-42010C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
58466J - BOARD, BATTERY SERVICE COVER, NO.2
58466-42010C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
58467H - BOARD, BATTERY SERVICE COVER, NO.3
58467-42010C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
64342A - CLIP
90467-06165C3

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
64714C - COVER, DECK SIDE TRIM, RH
64714-48150C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-48200C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-09242

AXUH85

 2
64730H - CLIP(FOR DECK TRIM SIDE PANEL)
90467-09242

AXUH85

 2
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-48180C0

AXUH85..S..USA

GUAM,SAIPAN SPEC,BLACK,TRIM1#,2#,4#

 1
64740-48190C0

AXUH85..S

BLACK,TRIM1#,2#,4#

 1
64740-48180C0

AXUH85..G..USA;AXUH85..(G,M)..CND

BLACK,TRIM1#,2#,4#

 1
64740-48190C0

AXUH85..G..USA

AUDIO-JBL & 12.3INCH DISPLAY T2 & XM(USA),BLACK,TRIM1#,2#,4#

 1
65351A - COVER, BATTERY HOLE
65351-48010C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
Common parts
90159-60618
90467-05172
90467-08226
90467-09206
90467-10161
Linked diagrams
8201
