AXUH85L-ANXGBA (2020)
Toyota Venza

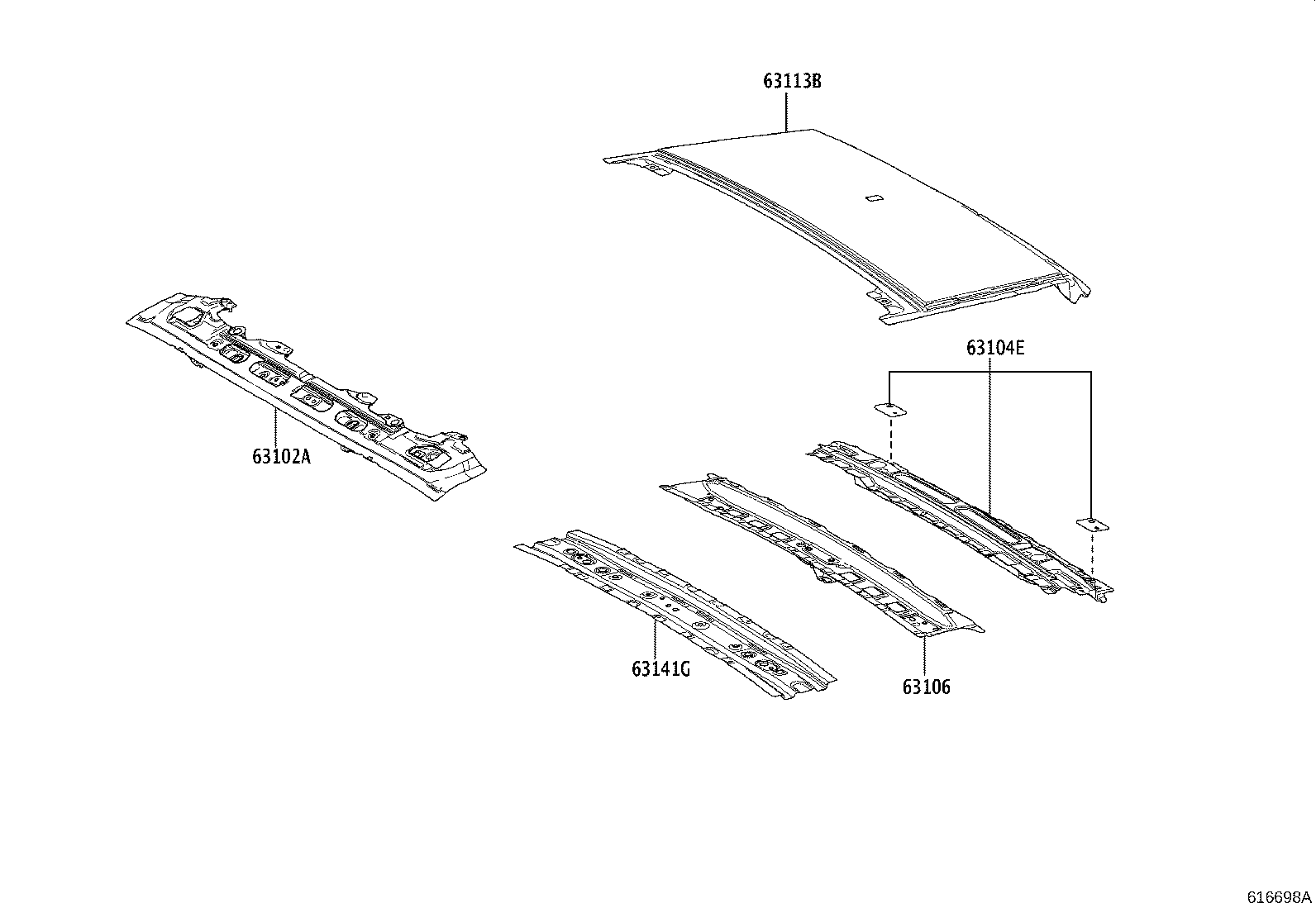

ILLUST NO. 1 OF 3(2007- )G,S
ROOF PANEL(PANORAMA ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-48918 |
AXUH85 |
1 | ||
| 63102-48250 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-48040 |
AXUH85 |
1 | ||
| 63106 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4 | ||||
| 63106-48030 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63113B - PANEL, ROOF, REAR | ||||
| 63113-48030 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-48100 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||

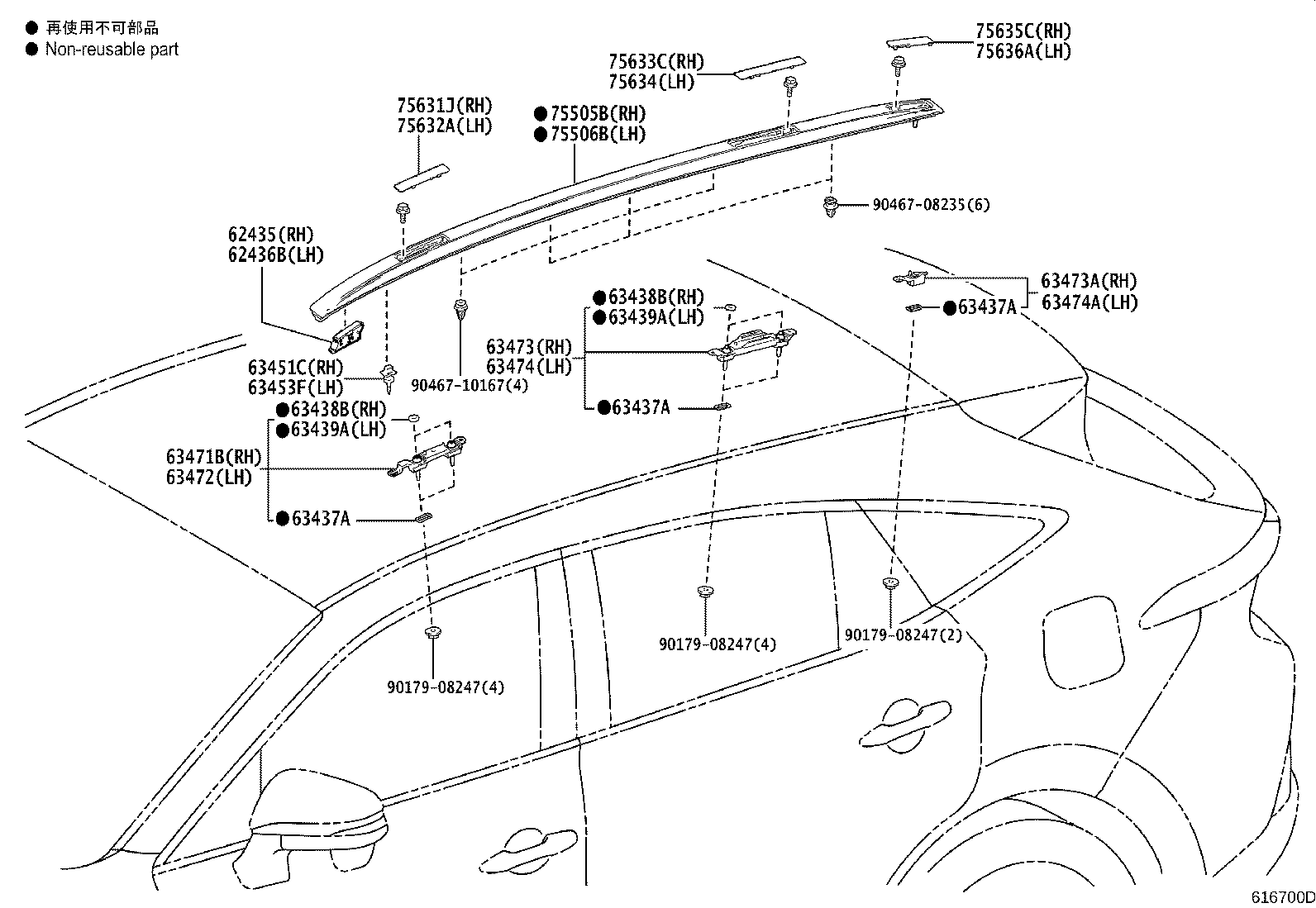

ILLUST NO. 3 OF 3(2007- )
ROOF RACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62435 - PAD, ROOF SIDE RAIL GARNISH, RH | ||||
| 62435-48030 |
AXUH85..G,S |
1 | ||
| 62436B - PAD, ROOF SIDE RAIL GARNISH, LH | ||||
| 62436-48030 |
AXUH85..G,S |
1 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-48030 |
AXUH85..G,S |
10 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-48030 |
AXUH85..G,S |
10 | ||
| 63437A - SEAL, ROOF CARRIER, NO.2 | ||||
| 63437-48030 |
AXUH85..G,S |
10 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-20010 |
AXUH85..G,S |
4 | ||
| 63438B - SEAL, ROOF CARRIER, NO.3 RH | ||||
| 63438-20010 |
AXUH85..G,S |
4 | ||
| 63439A - SEAL, ROOF CARRIER, NO.3 LH | ||||
| 63438-20010 |
AXUH85..G,S |
4 | ||
| 63439A - SEAL, ROOF CARRIER, NO.3 LH | ||||
| 63438-20010 |
AXUH85..G,S |
4 | ||
| 63451C - RETAINER, ROOF RACK, FRONT RH | ||||
| 63451-42010 |
AXUH85..G,S |
1 | ||
| 63453F - RETAINER, ROOF RACK, FRONT LH | ||||
| 63451-42010 |
AXUH85..G,S |
1 | ||
| 63471B - LEG, ROOF RACK, FRONT RH | ||||
| 63471-48080 |
AXUH85..G,S |
1 | ||
| 63472 - LEG, ROOF RACK, FRONT LH | ||||
| 63472-48060 |
AXUH85..G,S |
1 | ||
| 63473 - LEG, ROOF RACK, REAR RH | ||||
| 63473-48060 |
AXUH85..G,S |
1 | ||
| 63473A - LEG, ROOF RACK, REAR NO.2 RH | ||||
| 63473-48070 |
AXUH85..G,S |
1 | ||
| 63474 - LEG, ROOF RACK, REAR LH | ||||
| 63474-48060 |
AXUH85..G,S |
1 | ||
| 63474A - LEG, ROOF RACK, REAR NO.2 LH | ||||
| 63474-48070 |
AXUH85..G,S |
1 | ||
| 75505B - GARNISH SUB-ASSY, ROOF SIDE, FRONT RH | ||||
| 75505-48030B1 |
AXUH85..G,S SILVER ME.,070 ,1K4 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| 75506B - GARNISH SUB-ASSY, ROOF SIDE, FRONT LH | ||||
| 75506-48030B1 |
AXUH85..G,S SILVER ME.,070 ,1K4 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| 75631J - LID, ROOF SIDE GARNISH, NO.1 RH | ||||
| 75631-48010B1 |
AXUH85..G,S SILVER ME.,070 ,1K4 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| 75632A - LID, ROOF SIDE GARNISH, NO.1 LH | ||||
| 75632-48010B1 |
AXUH85..G,S SILVER ME.,070 ,1K4 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| 75633C - LID, ROOF SIDE GARNISH, NO.2 RH | ||||
| 75633-48010B1 |
AXUH85..G,S SILVER ME.,070 ,1K4 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| 75634 - LID, ROOF SIDE GARNISH, NO.2 LH | ||||
| 75634-48010B1 |
AXUH85..G,S SILVER ME.,070 ,1K4 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| 75635C - LID, ROOF SIDE GARNISH, NO.3 RH | ||||
| 75635-48010B1 |
AXUH85..G,S SILVER ME.,070 ,1K4 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| 75636A - LID, ROOF SIDE GARNISH, NO.3 LH | ||||
| 75636-48020B1 |
AXUH85..G,S SILVER ME.,070 ,1K4 ,1K9 ,202 ,219 ,3T3 ,4X1 ,8X8 |
1 | ||
| Common parts | ||||
| 90179-08247 | ||||
| 90467-08235 | ||||
| 90467-10167 | ||||

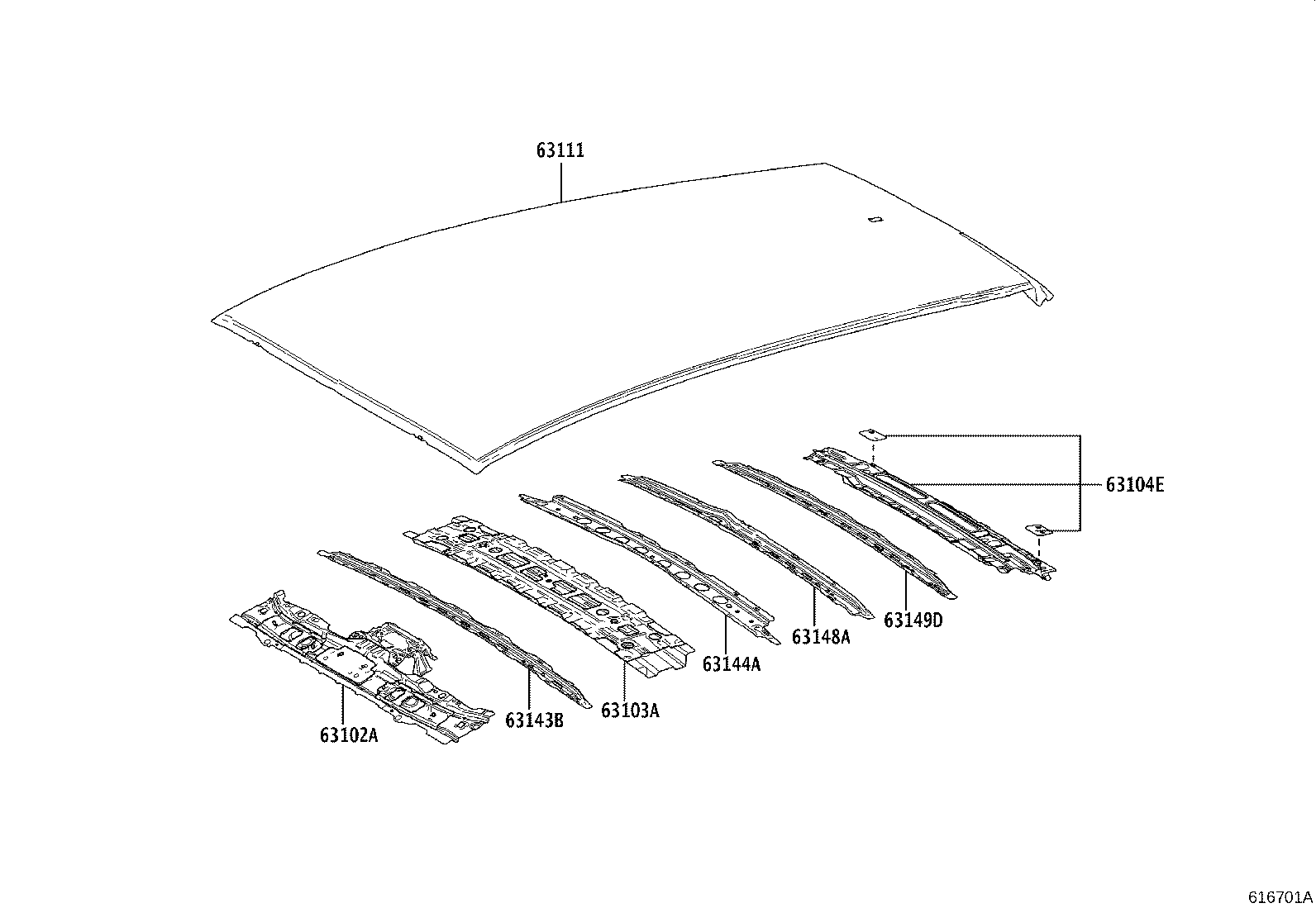

ILLUST NO. 1 OF 3(2007- )
ROOF POANEL(NORMAL ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-48918 |
AXUH85 |
1 | ||
| 63102-48250 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL | ||||
| 63103-48070 |
AXUH85 |
1 | ||
| 63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR | ||||
| 63104-48040 |
AXUH85 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-48410 |
AXUH85..G,S |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-48120 |
AXUH85 |
1 | ||
| 63144A - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63144-48110 |
AXUH85 |
1 | ||
| 63148A - REINFORCEMENT, ROOF PANEL, NO.7 | ||||
| 63148-48050 |
AXUH85 |
1 | ||
| 63149D - REINFORCEMENT, ROOF PANEL, NO.8 | ||||
| 63149-48050 |
AXUH85 |
1 | ||

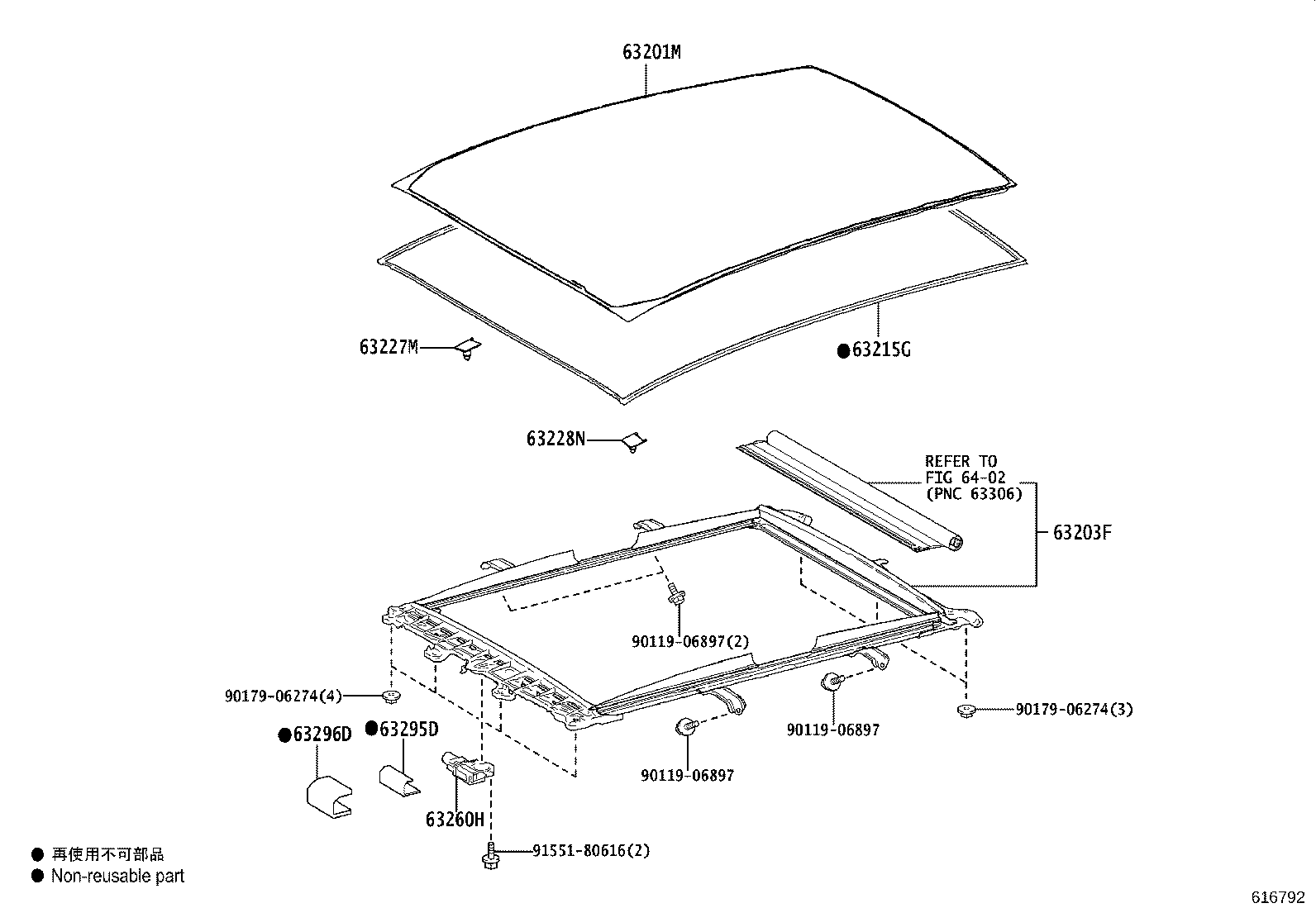

ILLUST NO. 2 OF 3(2007- )G,S
SLIDING ROOF(PANORAMA ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201M - GLASS SUB-ASSY, ROOF WINDOW, NO.1 | ||||
| 63201-48901 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63201-48902 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-48210C0 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE,BLACK,TRIM2#,4# |
1 | ||
| 63203-48210B0 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE,LT. GRAY,TRIM1# |
1 | ||
| 63215G - MOULDING, MOON ROOF, FRONT | ||||
| 63215-48020 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63227M - CLIP, ROOF WINDOW, LOWER | ||||
| 63227-48020 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63228N - CLIP, ROOF WINDOW, SIDE | ||||
| 63228-48020 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63260H - GEAR ASSY, SLIDING ROOF DRIVE | ||||
| 63260-48130 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63295D - PAD, SLIDING ROOF HOUSING | ||||
| 63295-50010 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 63296D - PAD, SLIDING ROOF HOUSING, NO.2 | ||||
| 63296-48010 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| Common parts | ||||
| 90119-06897 | ||||
| 90179-06274 | ||||
| 91551-80616 | ||||
| Linked diagrams | ||||
| 6402 | ||||
