AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

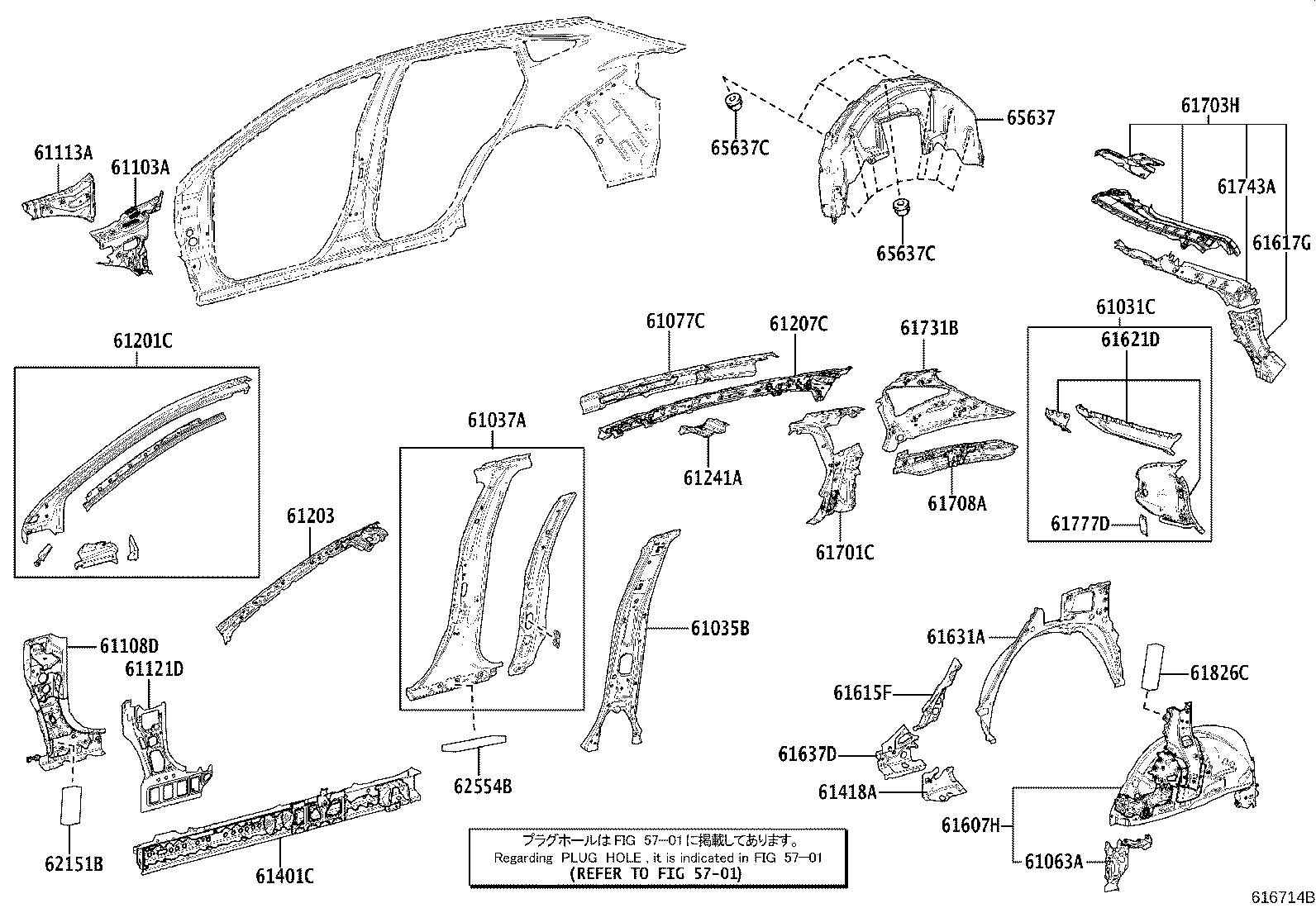

ILLUST NO. 2 OF 3(2007- )
Click highlighted areas on diagram
INNER PANEL, RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61031C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 61031-48020 |
AXUH85 |
1 | ||
| 61035B - PILLAR SUB-ASSY, NO.4 INNER, RH | ||||
| 61035-48020 |
AXUH85 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-48907 |
AXUH85 |
1 | ||
| 61063A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH | ||||
| 61063-42020 |
AXUH85 |
1 | ||
| 61077C - RAIL SUB-ASSY, NO.1 UPPER OUTER, RH | ||||
| 61077-48010 |
AXUH85 |
1 | ||
| 61103A - REINFORCEMENT SUB-ASSY, COWL SIDE, RH | ||||
| 61103-48050 |
AXUH85 |
1 | ||
| 61108D - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH | ||||
| 61108-48110 |
AXUH85 |
1 | ||
| 61113A - PANEL, SIDE, OUTER NO.2 RH | ||||
| 61113-48040 |
AXUH85 |
1 | ||
| 61121D - PANEL, COWL SIDE, RH | ||||
| 61121-42060 |
AXUH85 |
1 | ||
| 61201C - RAIL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61201-48905 |
AXUH85 |
1 | ||
| 61203 - RAIL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61203-48080 |
AXUH85 |
1 | ||
| 61207C - RAIL SUB-ASSY, ROOF SIDE, INNER NO.2 RH | ||||
| 61207-48010 |
AXUH85 |
1 | ||
| 61241A - GUSSET, ROOF SIDE RAIL, REAR RH | ||||
| 61241-48030 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 61241-48020 |
AXUH85 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-42020 |
AXUH85 |
1 | ||
| 61418A - REINFORCEMENT, ROCKER PANEL, RH | ||||
| 61418-48070 |
AXUH85 |
1 | ||
| 61607H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-42110 |
AXUH85 |
1 | ||
| 61615F - REINFORCEMENT, QUARTER PANEL, OUTER RH | ||||
| 61615-42030 |
AXUH85 |
1 | ||
| 61617G - PANEL, QUARTER, INNER REAR RH | ||||
| 61617-48050 |
AXUH85 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-48080 |
AXUH85 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-48100 |
AXUH85 |
1 | ||
| 61637D - REINFORCEMENT, QUARTER, INNER RH | ||||
| 61637-48050 |
AXUH85 |
1 | ||
| 61701C - PANEL SUB-ASSY, ROOF SIDE, OUTER RH | ||||
| 61701-48030 |
AXUH85 |
1 | ||
| 61703H - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61703-48050 |
AXUH85 |
1 | ||
| 61708A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH | ||||
| 61708-48060 |
AXUH85 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-48100 |
AXUH85 |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-48040 |
AXUH85 |
1 | ||
| 61777D - RETAINER, BACK DOOR SIDE STOPPER, RH | ||||
| 61777-28030 |
AXUH85 |
1 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-42020 |
AXUH85 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-42030 |
AXUH85 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-42100 |
AXUH85 |
2 | ||
| 65637 - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-48080 |
AXUH85 |
1 | ||
| 65637C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
AXUH85 BLACK |
12 | ||
| 65637C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
AXUH85 BLACK |
12 | ||
| Linked diagrams | ||||
| 5701 | ||||

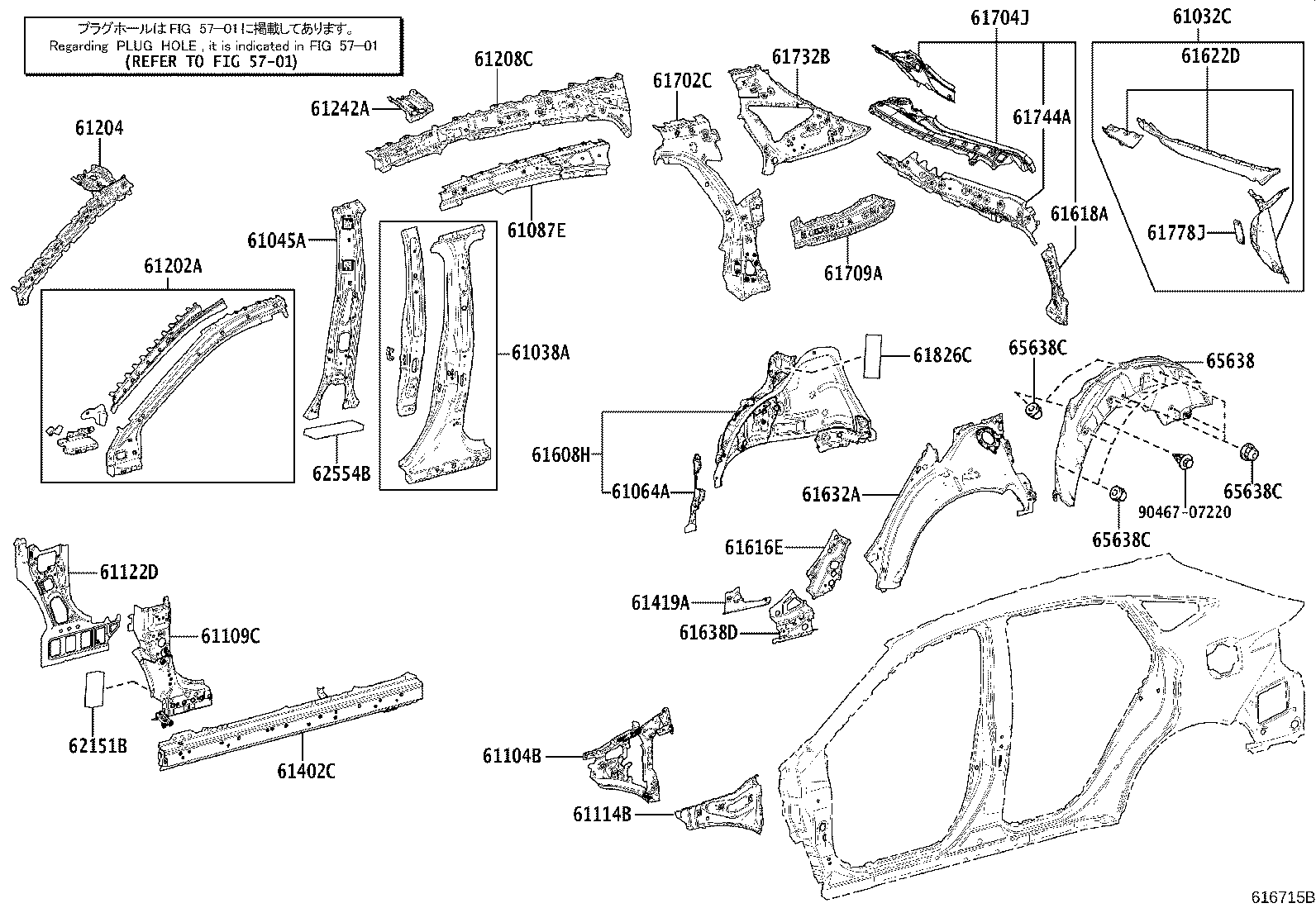

ILLUST NO. 3 OF 3(2007- )
Click highlighted areas on diagram
INNER PANEL, LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61032C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 61032-48020 |
AXUH85 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-48908 |
AXUH85 |
1 | ||
| 61045A - PILLAR SUB-ASSY, NO.4 INNER, LH | ||||
| 61045-48030 |
AXUH85 |
1 | ||
| 61064A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH | ||||
| 61064-42020 |
AXUH85 |
1 | ||
| 61087E - RAIL SUB-ASSY, NO.1 UPPER OUTER, LH | ||||
| 61087-48010 |
AXUH85 |
1 | ||
| 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH | ||||
| 61104-48050 |
AXUH85 |
1 | ||
| 61109C - REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER LH | ||||
| 61109-48100 |
AXUH85 |
1 | ||
| 61114B - PANEL, SIDE, OUTER NO.2 LH | ||||
| 61114-48040 |
AXUH85 |
1 | ||
| 61122D - PANEL, COWL SIDE, LH | ||||
| 61122-42070 |
AXUH85 |
1 | ||
| 61202A - RAIL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61202-48905 |
AXUH85 |
1 | ||
| 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61204-48080 |
AXUH85 |
1 | ||
| 61208C - RAIL SUB-ASSY, ROOF SIDE, INNER NO.2 LH | ||||
| 61208-48010 |
AXUH85 |
1 | ||
| 61242A - GUSSET, ROOF SIDE RAIL, REAR LH | ||||
| 61242-48030 |
AXUH85..G,S MOON ROOF-DIMMING PANORAMA ROOF & ELECTRIC SHADE |
1 | ||
| 61242-48020 |
AXUH85 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-42030 |
AXUH85 |
1 | ||
| 61419A - REINFORCEMENT, ROCKER PANEL, LH | ||||
| 61419-48070 |
AXUH85 |
1 | ||
| 61608H - PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-42110 |
AXUH85 |
1 | ||
| 61616E - REINFORCEMENT, QUARTER PANEL, OUTER LH | ||||
| 61616-42010 |
AXUH85 |
1 | ||
| 61618A - PANEL, QUARTER, INNER REAR LH | ||||
| 61618-48050 |
AXUH85 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-48080 |
AXUH85 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-48906 |
AXUH85 |
1 | ||
| 61638D - REINFORCEMENT, QUARTER, INNER LH | ||||
| 61638-48050 |
AXUH85 |
1 | ||
| 61702C - PANEL SUB-ASSY, ROOF SIDE, OUTER LH | ||||
| 61702-48030 |
AXUH85 |
1 | ||
| 61704J - REINFORCEMENT SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61704-48050 |
AXUH85 |
1 | ||
| 61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 61709-48020 |
AXUH85 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-48100 |
AXUH85 |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-48050 |
AXUH85 |
1 | ||
| 61778J - RETAINER, BACK DOOR SIDE STOPPER, LH | ||||
| 61777-28030 |
AXUH85 |
1 | ||
| 61826C - PAD, NOISE SHUTTER, NO.3 | ||||
| 61826-42020 |
AXUH85 |
2 | ||
| 62151B - PAD, COWL SIDE SILENCER | ||||
| 62151-42030 |
AXUH85 |
2 | ||
| 62554B - PAD, PILLAR, NO.4 | ||||
| 62554-42100 |
AXUH85 |
2 | ||
| 65638 - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-48080 |
AXUH85 |
1 | ||
| 65638C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
AXUH85 BLACK |
10 | ||
| 65638C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
AXUH85 BLACK |
10 | ||
| 65638C - CLIP, REAR WHEEL HOUSE LINER | ||||
| 90467-06206C0 |
AXUH85 BLACK |
10 | ||
| Common parts | ||||
| 90467-07220 | ||||
| Linked diagrams | ||||
| 5701 | ||||

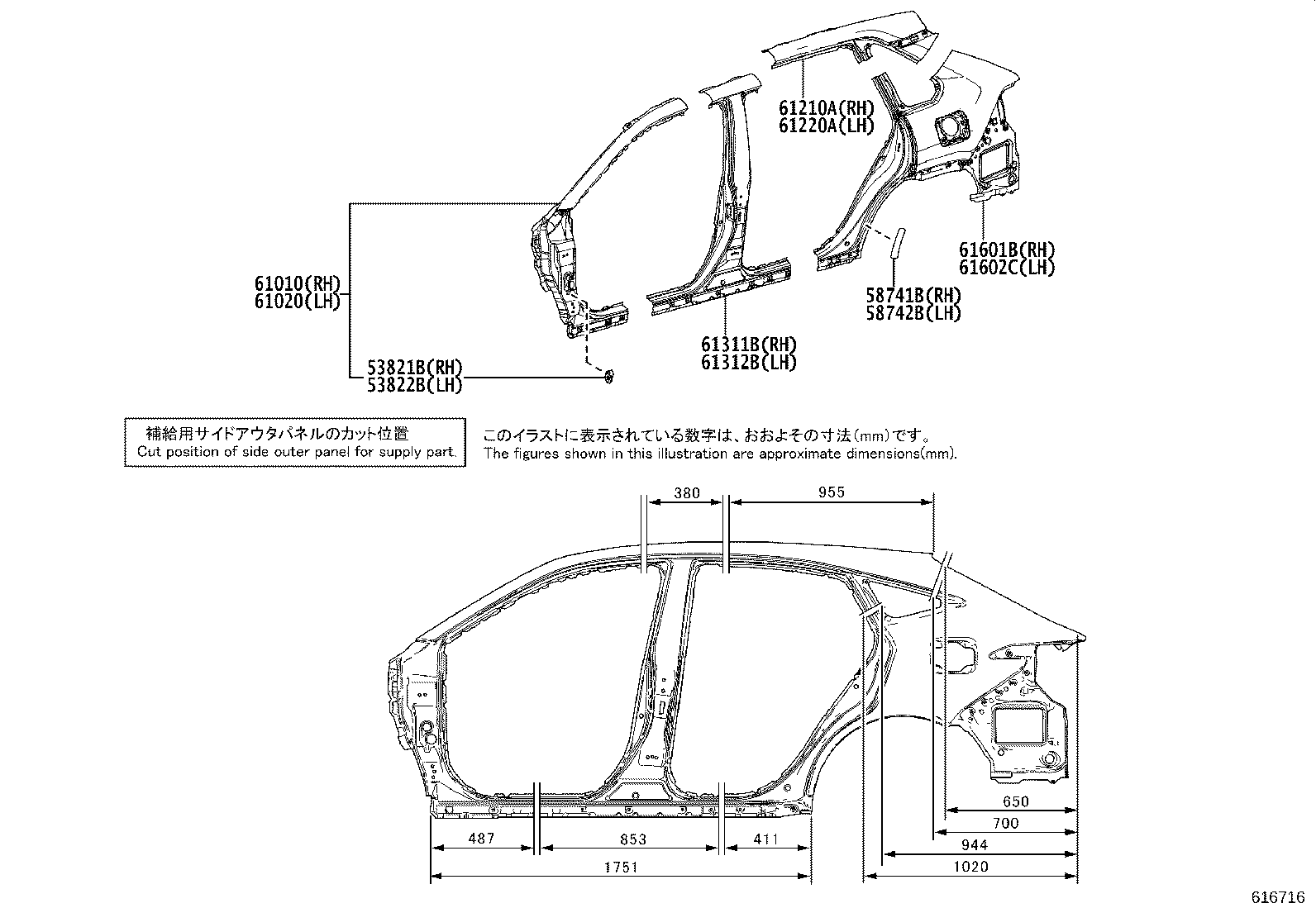

ILLUST NO. 1 OF 3(2007- )
Click highlighted areas on diagram
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-42030 |
AXUH85 |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53821-42030 |
AXUH85 |
1 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-48020 |
AXUH85 |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-48020 |
AXUH85 |
1 | ||
| 61010 - MEMBER ASSY, SIDE, RH | ||||
| 61010-48010 |
AXUH85 |
1 | ||
| 61020 - MEMBER ASSY, SIDE, LH | ||||
| 61020-48010 |
AXUH85 |
1 | ||
| 61210A - RAIL ASSY, ROOF SIDE, RH | ||||
| 61210-48010 |
AXUH85 |
1 | ||
| 61220A - RAIL ASSY, ROOF SIDE, LH | ||||
| 61220-48010 |
AXUH85 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-48090 |
AXUH85 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-48090 |
AXUH85 |
1 | ||
| 61601B - PANEL SUB-ASSY, QUARTER, RH | ||||
| 61601-48110 |
AXUH85 |
1 | ||
| 61602C - PANEL SUB-ASSY, QUARTER, LH | ||||
| 61602-48110 |
AXUH85 |
1 | ||
