AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

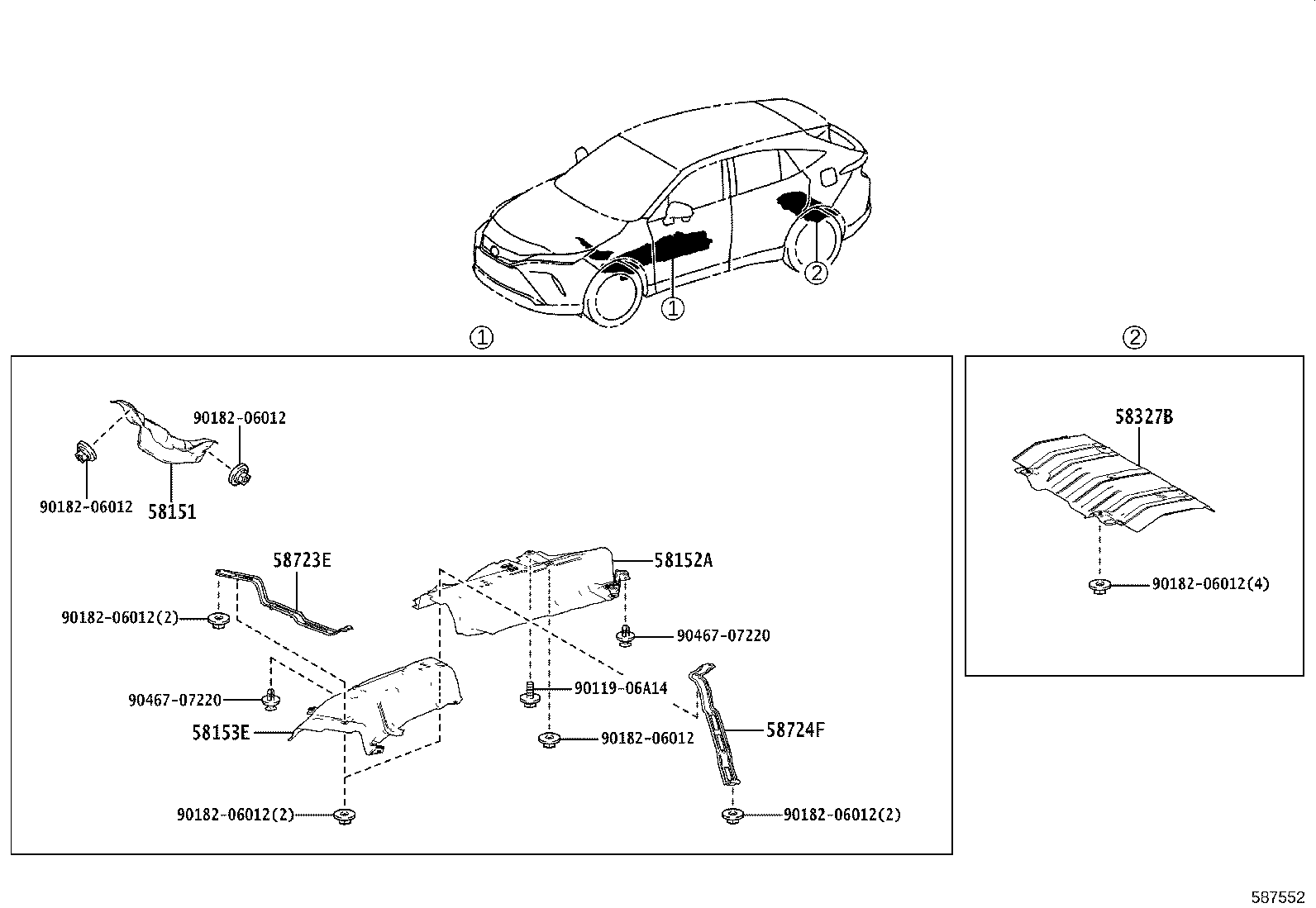

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-42060 |
AXUH85 |
1 | ||
| 58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER | ||||
| 58152-42050 |
AXUH85 |
1 | ||
| 58153E - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-42020 |
AXUH85 |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-42030 |
AXUH85 |
1 | ||
| 58723E - CUSHION, ENGINE SERVICE COVER | ||||
| 58723-42040 |
AXUH85 |
1 | ||
| 58724F - CUSHION, ENGINE SERVICE COVER, NO.2 | ||||
| 58724-42040 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90182-06012 | ||||
| 90467-07220 | ||||
