AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

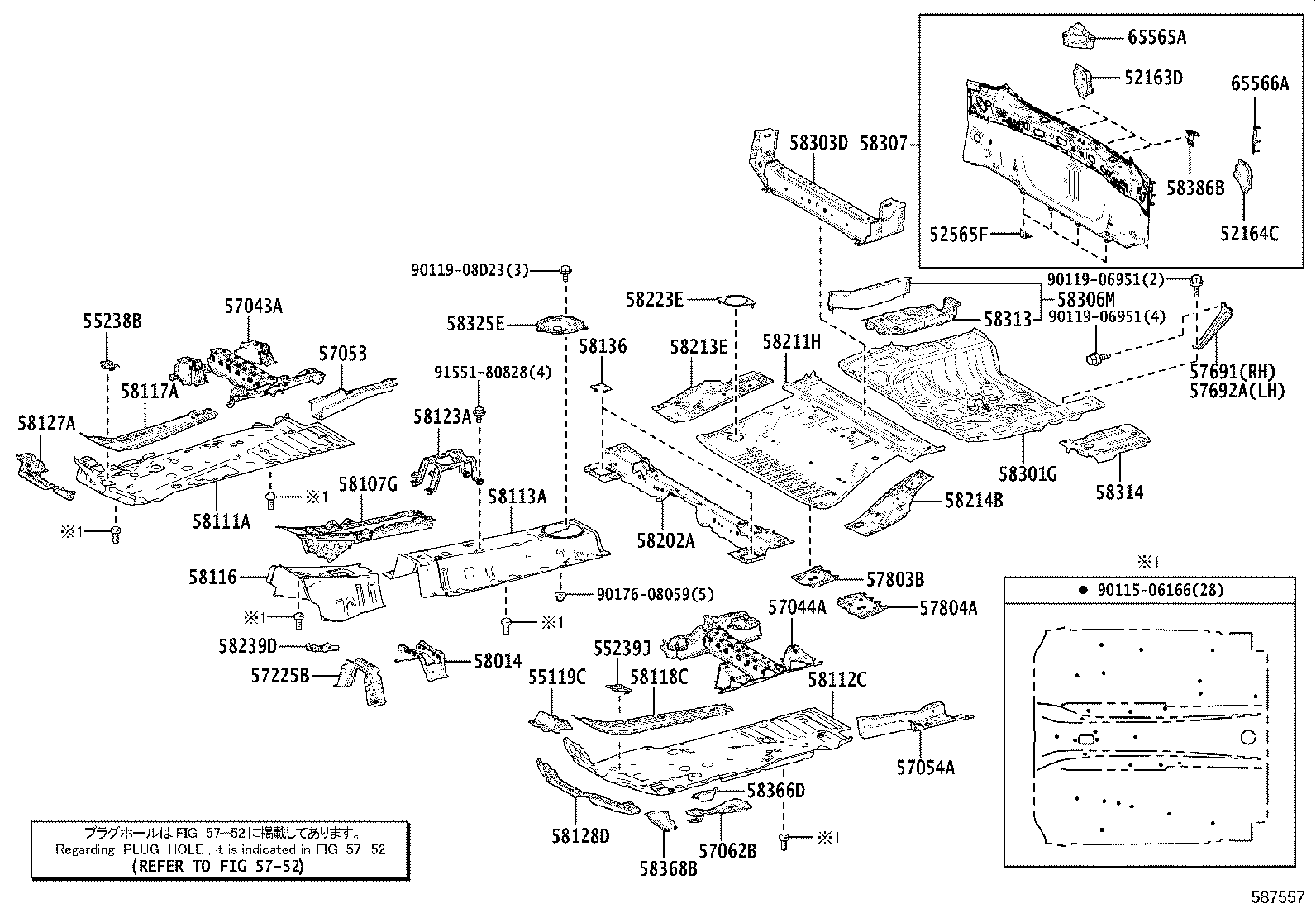

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52163D - PLATE, REAR BUMPER REINFORCEMENT, RH | ||||
| 52163-42030 |
AXUH85 |
1 | ||
| 52164C - PLATE, REAR BUMPER REINFORCEMENT, LH | ||||
| 52164-42030 |
AXUH85 |
1 | ||
| 52565F - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-48050 |
AXUH85 |
4 | ||
| 55119C - BRACKET, CLUTCH BOOSTER | ||||
| 55119-42010 |
AXUH85 |
1 | ||
| 55238B - PLATE, DASH PANEL INSULATOR, LOWER RH | ||||
| 55238-42010 |
AXUH85 |
1 | ||
| 55239J - PLATE, DASH PANEL INSULATOR, LOWER LH | ||||
| 55239-42010 |
AXUH85 |
1 | ||
| 57043A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH | ||||
| 57043-42020 |
AXUH85 |
1 | ||
| 57044A - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH | ||||
| 57044-42020 |
AXUH85 |
1 | ||
| 57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH | ||||
| 57053-42020 |
AXUH85 |
1 | ||
| 57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH | ||||
| 57054-42030 |
AXUH85 |
1 | ||
| 57062B - BRACKET SUB-ASSY, FUEL TANK SUPPORT, LH | ||||
| 57062-48050 |
AXUH85 |
1 | ||
| 57225B - BRACE, FRONT MOUNTING BRACKET | ||||
| 57225-42010 |
AXUH85 |
1 | ||
| 57691 - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER RH | ||||
| 57691-48040 |
AXUH85 |
1 | ||
| 57692A - BRACE, REAR FLOOR NO.2 CROSSMEMBER, INNER LH | ||||
| 57692-48010 |
AXUH85 |
1 | ||
| 57803B - REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 RH | ||||
| 57803-42020 |
AXUH85 |
1 | ||
| 57804A - REINFORCE SUB-ASSY, BELT ANCHOR, NO.2 LH | ||||
| 57804-42020 |
AXUH85 |
1 | ||
| 58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER | ||||
| 58014-42010 |
AXUH85 |
1 | ||
| 58107G - REINFORCE SUB-ASSY, PARKING BRAKE BASE | ||||
| 58107-42020 |
AXUH85 |
1 | ||
| 58111A - PAN, FRONT FLOOR, RH | ||||
| 58111-42220 |
AXUH85 |
1 | ||
| 58112C - PAN, FRONT FLOOR, LH | ||||
| 58112-42030 |
AXUH85 |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-42040 |
AXUH85 |
1 | ||
| 58116 - PLATE, SHIFT CABLE MOUNTING | ||||
| 58116-42030 |
AXUH85 |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-42020 |
AXUH85 |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-42030 |
AXUH85 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-48060 |
AXUH85 |
1 | ||
| 58127A - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH | ||||
| 58127-42011 |
AXUH85 |
1 | ||
| 58128D - REINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH | ||||
| 58128-42021 |
AXUH85 |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-42030 |
AXUH85 |
2 | ||
| 58202A - PAN SUB-ASSY, CENTER FLOOR, FRONT | ||||
| 58202-42040 |
AXUH85 |
1 | ||
| 58211H - PAN, CENTER FLOOR | ||||
| 58211-42030 |
AXUH85 |
1 | ||
| 58213E - PANEL, SEAT FLOOR SIDE, RH | ||||
| 58213-48050 |
AXUH85 |
1 | ||
| 58214B - PANEL, SEAT FLOOR SIDE, LH | ||||
| 58214-48040 |
AXUH85 |
1 | ||
| 58223E - REINFORCEMENT, FLOOR PANEL SIDE, RH | ||||
| 58223-42010 |
AXUH85 |
1 | ||
| 58239D - BRACKET, CABLE CLAMP | ||||
| 58239-42010 |
AXUH85 |
1 | ||
| 58301G - PAN SUB-ASSY, REAR FLOOR | ||||
| 58301-42901 |
AXUH85 |
1 | ||
| 58303D - PANEL SUB-ASSY, REAR FLOOR PARTITION | ||||
| 58303-42020 |
AXUH85 |
1 | ||
| 58306M - PANEL SUB-ASSY, REAR FLOOR SIDE | ||||
| 58306-42070 |
AXUH85 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-48140 |
AXUH85 |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-42070 |
AXUH85 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-42060 |
AXUH85 |
1 | ||
| 58325E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-42040 |
AXUH85 |
1 | ||
| 58366D - REINFORCEMENT, FUEL TANK SUPPORT, REAR | ||||
| 58366-42010 |
AXUH85 |
1 | ||
| 58368B - BRACKET, FUEL TUBE, NO.2 | ||||
| 58368-42010 |
AXUH85 |
1 | ||
| 58386B - BRACKET, REAR BUMPER COVER, NO.2 | ||||
| 58386-47020 |
AXUH85 |
4 | ||
| 65565A - PATCH, SIDE PANEL REAR END, RH | ||||
| 65565-50010 |
AXUH85 |
1 | ||
| 65566A - PATCH, SIDE PANEL REAR END, LH | ||||
| 65565-50010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90115-06166 | ||||
| 90119-06951 | ||||
| 90119-08D23 | ||||
| 90176-08059 | ||||
| 91551-80828 | ||||
| Linked diagrams | ||||
| 5752 | ||||
