AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

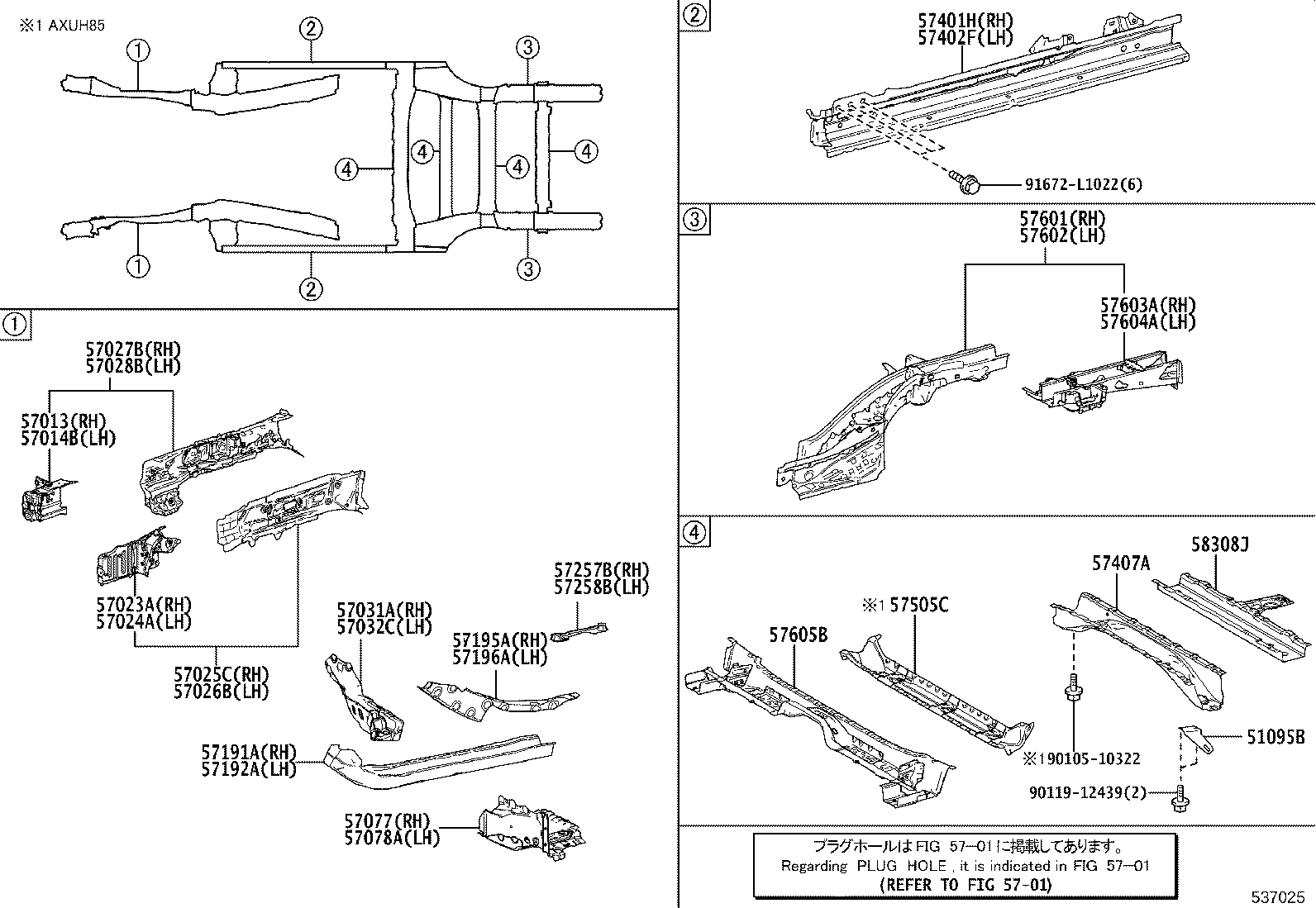

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51095B - HOOK SUB-ASSY, TRANSPORT, REAR RH | ||||
| 51095-42010 |
AXUH85 |
1 | ||
| 57013 - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-42010 |
AXUH85 |
1 | ||
| 57014B - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-42010 |
AXUH85 |
1 | ||
| 57023A - MEMBER SUB-ASSY, REAR SIDE, RH | ||||
| 57023-42010 |
AXUH85 |
1 | ||
| 57024A - MEMBER SUB-ASSY, REAR SIDE, LH | ||||
| 57024-42010 |
AXUH85 |
1 | ||
| 57025C - MEMBER SUB-ASSY, FRONT SIDE, OUTER RH | ||||
| 57025-42010 |
AXUH85 |
1 | ||
| 57026B - MEMBER SUB-ASSY, FRONT SIDE, OUTER LH | ||||
| 57026-42020 |
AXUH85 |
1 | ||
| 57027B - MEMBER SUB-ASSY, FRONT SIDE, INNER RH | ||||
| 57027-42020 |
AXUH85 |
1 | ||
| 57028B - MEMBER SUB-ASSY, FRONT SIDE, INNER LH | ||||
| 57028-42020 |
AXUH85 |
1 | ||
| 57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH | ||||
| 57031-42010 |
AXUH85 |
1 | ||
| 57032C - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH | ||||
| 57032-42010 |
AXUH85 |
1 | ||
| 57077 - BOX SUB-ASSY, TORQUE, FRONT RH | ||||
| 57077-42020 |
AXUH85 |
1 | ||
| 57078A - BOX SUB-ASSY, TORQUE, FRONT LH | ||||
| 57078-42020 |
AXUH85 |
1 | ||
| 57191A - MEMBER, FRONT SIDE, INNER REAR RH | ||||
| 57191-42070 |
AXUH85 |
1 | ||
| 57192A - MEMBER, FRONT SIDE, INNER REAR LH | ||||
| 57192-42070 |
AXUH85 |
1 | ||
| 57195A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT RH | ||||
| 57195-42040 |
AXUH85 |
1 | ||
| 57196A - REINFORCEMENT, FRONT SIDE MEMBER, FRONT LH | ||||
| 57196-42030 |
AXUH85 |
1 | ||
| 57257B - BRACKET, ENGINE REAR MOUNTING MEMBER, RH | ||||
| 57257-42030 |
AXUH85 |
1 | ||
| 57258B - BRACKET, ENGINE REAR MOUNTING MEMBER, LH | ||||
| 57258-42030 |
AXUH85 |
1 | ||
| 57401H - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH | ||||
| 57401-48080 |
AXUH85 |
1 | ||
| 57402F - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH | ||||
| 57402-48080 |
AXUH85 |
1 | ||
| 57407A - MEMBER SUB-ASSY, CENTER FLOOR CROSS | ||||
| 57407-42021 |
AXUH85 |
1 | ||
| 57407-42022 |
AXUH85 |
1 | ||
| 57505C - REINFORCEMENT SUB-ASSY, FRONT FLOOR UNDER | ||||
| 57505-42120 |
AXUH85 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-42130 |
AXUH85 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-42130 |
AXUH85 |
1 | ||
| 57603A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH | ||||
| 57603-42040 |
AXUH85 |
1 | ||
| 57604A - MEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH | ||||
| 57604-42040 |
AXUH85 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-42030 |
AXUH85 |
1 | ||
| 58308J - BRACKET SUB-ASSY, REAR FLOOR CROSSMEMBER | ||||
| 58308-42020 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90105-10322 | ||||
| 90119-12439 | ||||
| 91672-L1022 | ||||
| Linked diagrams | ||||
| 5701 | ||||
