AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

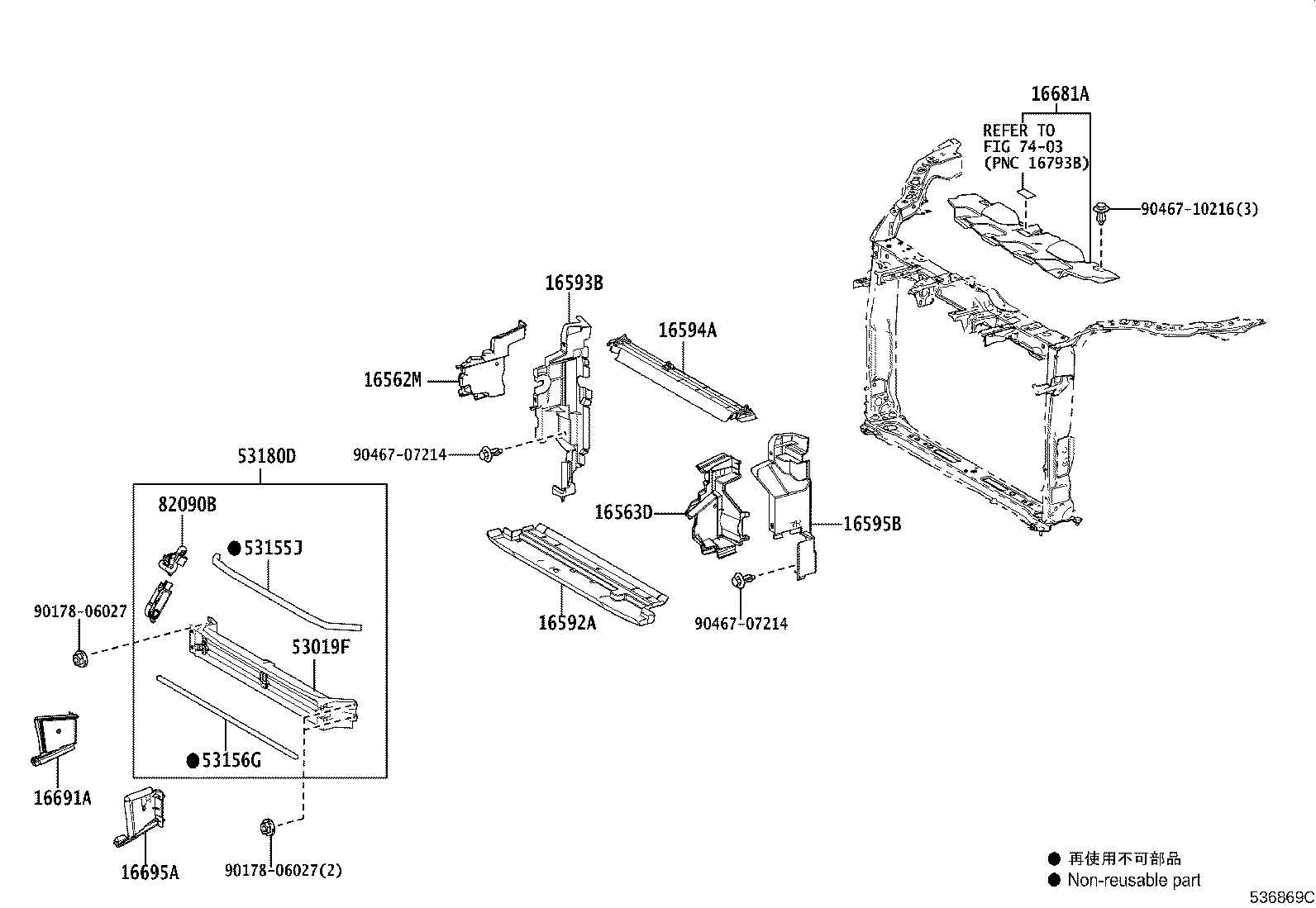

ILLUST NO. 1 OF 3(2007- )
Click highlighted areas on diagram
AIR GUIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16562M - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16562-24030 |
A25AFXS..AXUH85 |
1 | ||
| 16563D - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16563-24030 |
A25AFXS..AXUH85 |
1 | ||
| 16592A - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-25040 |
A25AFXS..AXUH85 |
1 | ||
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-25150 |
A25AFXS..AXUH85 |
1 | ||
| 16594A - GUIDE, RADIATOR AIR, NO.2 | ||||
| 16594-25020 |
A25AFXS..AXUH85 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-25150 |
A25AFXS..AXUH85 |
1 | ||
| 16681A - PLATE, RADIATOR UPPER AIR GUIDE | ||||
| 16681-25030 |
A25AFXS..AXUH85 |
1 | ||
| 16691A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT RH | ||||
| 16691-24030 |
A25AFXS..AXUH85 |
1 | ||
| 16695A - PLATE, RADIATOR SIDE AIR GUIDE, FRONT LH | ||||
| 16695-24010 |
A25AFXS..AXUH85 |
1 | ||
| 53019F - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-42050 |
AXUH85 |
1 | ||
| 53155J - SEAL, RADIATOR GRILLE, NO.1 | ||||
| 53155-48130 |
AXUH85 |
1 | ||
| 53156G - SEAL, RADIATOR GRILLE, NO.2 | ||||
| 53156-48060 |
AXUH85 |
1 | ||
| 53180D - SHUTTER ASSY, RADIATOR | ||||
| 53180-42050 |
AXUH85 |
1 | ||
| 82090B - WIRE ASSY, EXTENSION | ||||
| 82090-48040 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90178-06027 | ||||
| 90467-07214 | ||||
| 90467-10216 | ||||
| Linked diagrams | ||||
| 7403 | ||||
ILLUST NO. 2 OF 3(2007-2101)
Click highlighted areas on diagram
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52129C - ARM, FRONT BUMPER, UPPER NO.2 RH | ||||
| 52129-48030 |
AXUH85 |
1 | ||
| 52139C - ARM, FRONT BUMPER, UPPER NO.2 LH | ||||
| 52139-48020 |
AXUH85 |
1 | ||
| 52141H - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-48070 |
AXUH85 |
1 | ||
| 52142J - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-48050 |
AXUH85 |
1 | ||
| 53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-48040 |
AXUH85 |
1 | ||
| 53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-48040 |
AXUH85 |
1 | ||
| 53155K - SEAL, RADIATOR GRILLE, RH | ||||
| 53155-48120 |
AXUH85 |
1 | ||
| 53156J - SEAL, RADIATOR GRILLE, LH | ||||
| 53156-48050 |
AXUH85 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-48901 |
AXUH85 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-48902 |
AXUH85 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-48900 |
AXUH85 |
1 | ||
| 53223C - BRACKET, RADIATOR GRILLE MOUNTING, RH | ||||
| 53223-48030 |
AXUH85 |
1 | ||
| 53224B - BRACKET, RADIATOR GRILLE MOUNTING, LH | ||||
| 53224-48030 |
AXUH85 |
1 | ||
| 53384G - CUSHION, HOOD, CENTER | ||||
| 53384-50010 |
AXUH85 |
2 | ||
| 53384G - CUSHION, HOOD, CENTER | ||||
| 53384-50010 |
AXUH85 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-48900 |
AXUH85 |
1 | ||
| 53701-48120 |
AXUH85 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-48080 |
AXUH85 |
1 | ||
| 53702-48900 |
AXUH85 |
1 | ||
| 53703D - APRON SUB-ASSY, FRONT FENDER, NO.2 RH | ||||
| 53703-42030 |
AXUH85 |
1 | ||
| 53704G - APRON SUB-ASSY, FRONT FENDER, NO.2 LH | ||||
| 53704-42040 |
AXUH85 |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-42020 |
AXUH85 |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-42020 |
AXUH85 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-42070 |
AXUH85 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-42060 |
AXUH85 |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-42030 |
AXUH85 |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-42030 |
AXUH85 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-42050 |
AXUH85 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-42010 |
AXUH85 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-48030 |
AXUH85 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-48030 |
AXUH85 |
1 | ||
| 53785A - GUSSET, FRONT FENDER APRON, UPPER RH | ||||
| 53785-42010 |
AXUH85 |
1 | ||
| 53786B - GUSSET, FRONT FENDER APRON, UPPER LH | ||||
| 53786-42010 |
AXUH85 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-48020 |
AXUH85 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-48010 |
AXUH85 |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-48080 |
AXUH85 |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-48070 |
AXUH85 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-42090 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90109-06400 | ||||
| 90109-08307 | ||||
| 90119-06A13 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5752 | ||||

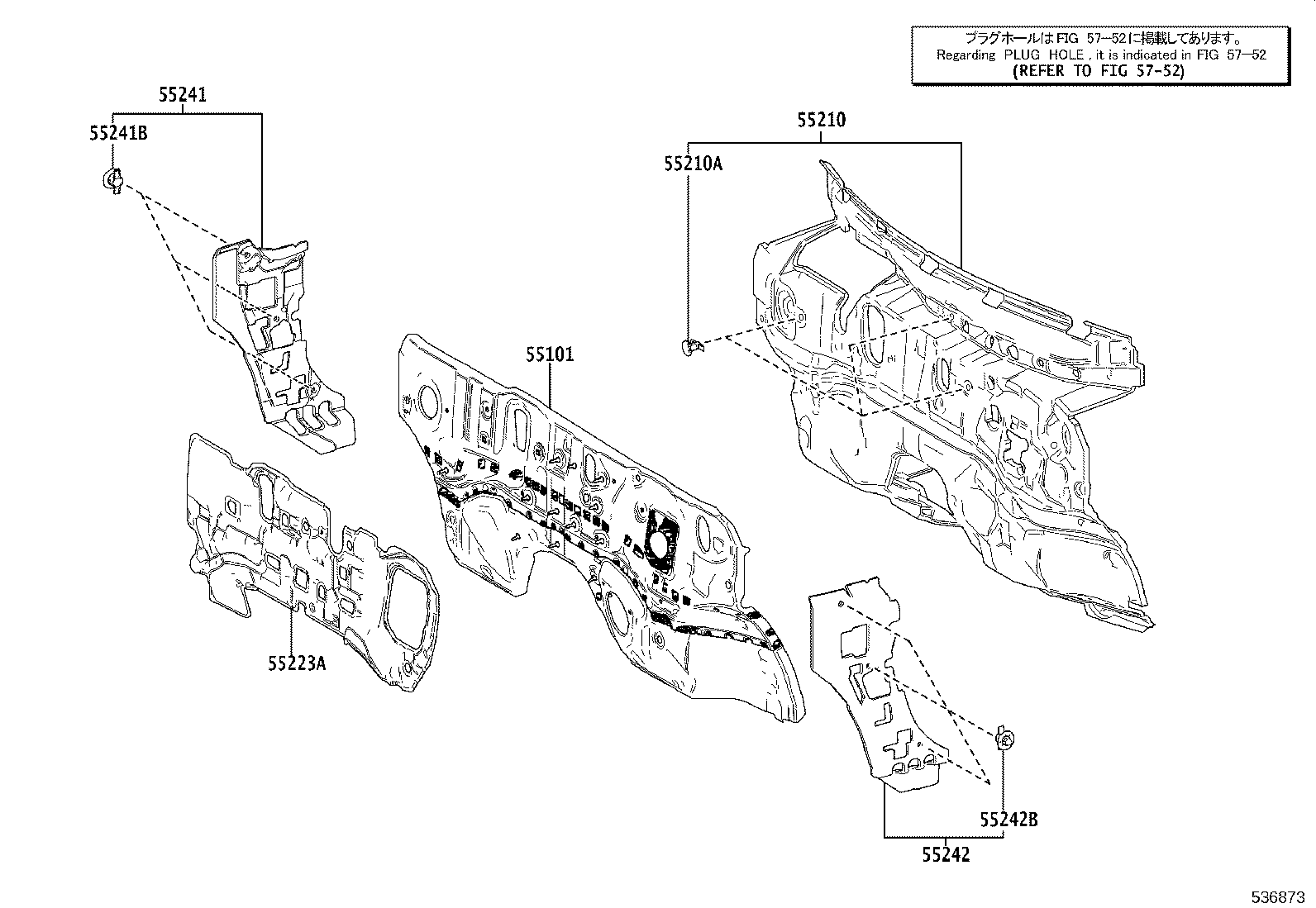

ILLUST NO. 3 OF 3(2007- )
Click highlighted areas on diagram
DASH PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-42550 |
AXUH85 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-48220 |
AXUH85 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
AXUH85 |
3 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-48230 |
AXUH85 |
1 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-42010 |
AXUH85 |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-10217 |
AXUH85 |
3 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-42010 |
AXUH85 |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-10217 |
AXUH85 |
3 | ||
| Linked diagrams | ||||
| 5752 | ||||

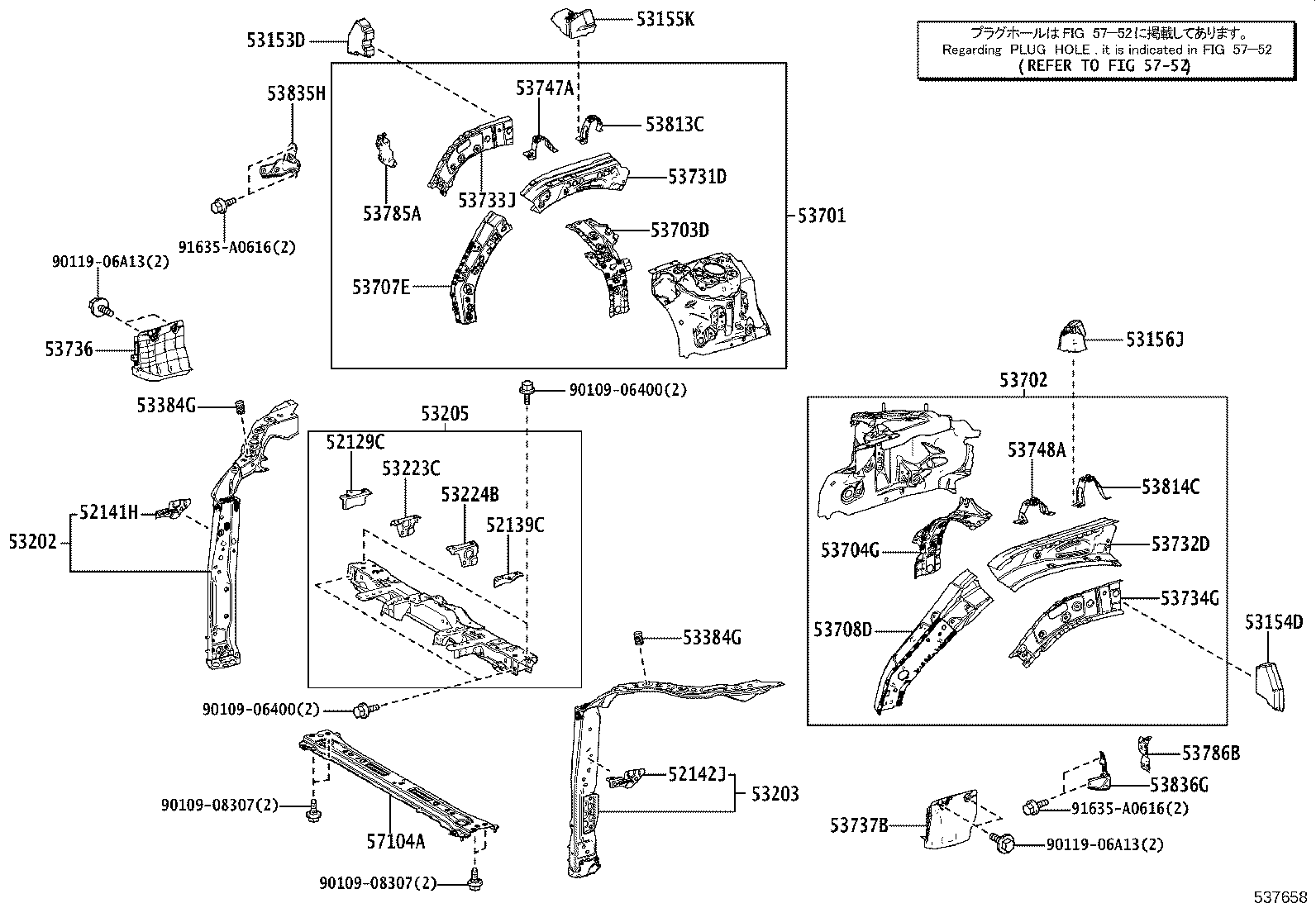

ILLUST NO. 2 OF 3(2101- )
Click highlighted areas on diagram
RADIATOR SUPPORT & FENDER APRON
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52129C - ARM, FRONT BUMPER, UPPER NO.2 RH | ||||
| 52129-48030 |
AXUH85 |
1 | ||
| 52139C - ARM, FRONT BUMPER, UPPER NO.2 LH | ||||
| 52139-48020 |
AXUH85 |
1 | ||
| 52141H - ARM, FRONT BUMPER, UPPER RH | ||||
| 52141-48070 |
AXUH85 |
1 | ||
| 52142J - ARM, FRONT BUMPER, UPPER LH | ||||
| 52142-48050 |
AXUH85 |
1 | ||
| 53153D - GUIDE, RADIATOR GRILLE SIDE AIR, RH | ||||
| 53153-48040 |
AXUH85 |
1 | ||
| 53154D - GUIDE, RADIATOR GRILLE SIDE AIR, LH | ||||
| 53154-48040 |
AXUH85 |
1 | ||
| 53155K - SEAL, RADIATOR GRILLE, RH | ||||
| 53155-48120 |
AXUH85 |
1 | ||
| 53156J - SEAL, RADIATOR GRILLE, LH | ||||
| 53156-48050 |
AXUH85 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-48901 |
AXUH85 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-48902 |
AXUH85 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-48900 |
AXUH85 |
1 | ||
| 53223C - BRACKET, RADIATOR GRILLE MOUNTING, RH | ||||
| 53223-48030 |
AXUH85 |
1 | ||
| 53224B - BRACKET, RADIATOR GRILLE MOUNTING, LH | ||||
| 53224-48030 |
AXUH85 |
1 | ||
| 53384G - CUSHION, HOOD, CENTER | ||||
| 53384-50010 |
AXUH85 |
2 | ||
| 53384G - CUSHION, HOOD, CENTER | ||||
| 53384-50010 |
AXUH85 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-48900 |
AXUH85 |
1 | ||
| 53701-48120 |
AXUH85 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-48080 |
AXUH85 |
1 | ||
| 53702-48900 |
AXUH85 |
1 | ||
| 53703D - APRON SUB-ASSY, FRONT FENDER, NO.2 RH | ||||
| 53703-42030 |
AXUH85 |
1 | ||
| 53704G - APRON SUB-ASSY, FRONT FENDER, NO.2 LH | ||||
| 53704-42040 |
AXUH85 |
1 | ||
| 53707E - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-42020 |
AXUH85 |
1 | ||
| 53708D - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-42020 |
AXUH85 |
1 | ||
| 53731D - MEMBER, FRONT APRON TO COWL SIDE, UPPER RH | ||||
| 53731-42070 |
AXUH85 |
1 | ||
| 53732D - MEMBER, FRONT APRON TO COWL SIDE, UPPER LH | ||||
| 53732-42060 |
AXUH85 |
1 | ||
| 53733J - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT RH | ||||
| 53733-42030 |
AXUH85 |
1 | ||
| 53734G - MEMBER, FRONT APRON TO COWL SIDE, OUTER FRONT LH | ||||
| 53734-42030 |
AXUH85 |
1 | ||
| 53736 - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-42050 |
AXUH85 |
1 | ||
| 53737B - SEAL, FRONT FENDER APRON, LH | ||||
| 53737-42010 |
AXUH85 |
1 | ||
| 53747A - EXTENSION, APRON FENDER SIDE, RH | ||||
| 53747-48030 |
AXUH85 |
1 | ||
| 53748A - EXTENSION, APRON FENDER SIDE, LH | ||||
| 53748-48030 |
AXUH85 |
1 | ||
| 53785A - GUSSET, FRONT FENDER APRON, UPPER RH | ||||
| 53785-42010 |
AXUH85 |
1 | ||
| 53786B - GUSSET, FRONT FENDER APRON, UPPER LH | ||||
| 53786-42010 |
AXUH85 |
1 | ||
| 53813C - EXTENSION, FRONT FENDER, RH | ||||
| 53813-48020 |
AXUH85 |
1 | ||
| 53814C - EXTENSION, FRONT FENDER, LH | ||||
| 53814-48010 |
AXUH85 |
1 | ||
| 53835H - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-48080 |
AXUH85 |
1 | ||
| 53836G - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53836-48070 |
AXUH85 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-42090 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90109-06400 | ||||
| 90109-08307 | ||||
| 90119-06A13 | ||||
| 91635-A0616 | ||||
| Linked diagrams | ||||
| 5752 | ||||
