AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

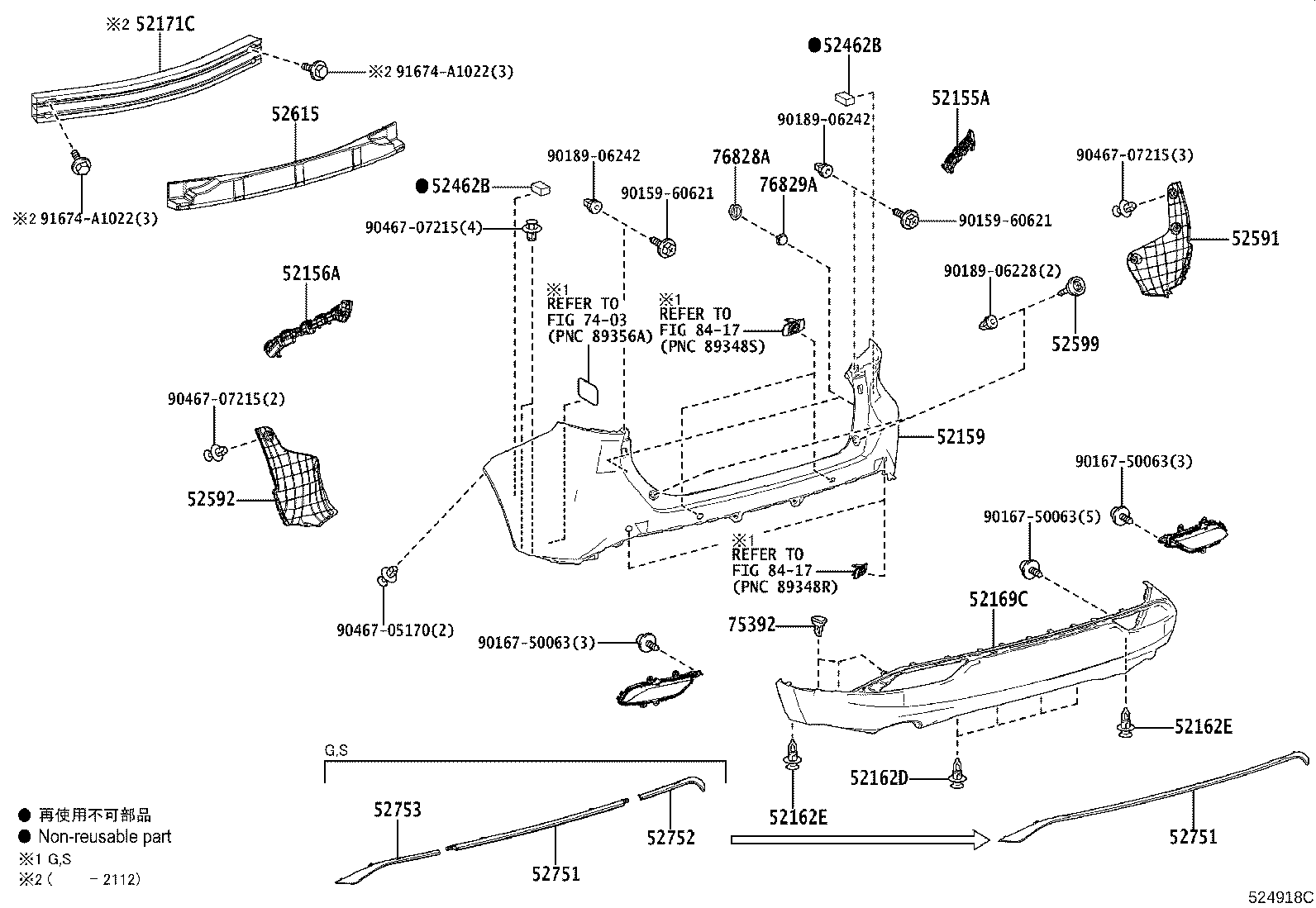

Click highlighted areas on diagram

diagram 52155A 52156A 52159 52162D 52162E 52162E 52169C 52171C 52462B 52462B 52591 52592 52599 52615 52751 52751 52752 52753 7403 75392 76828A 76829A 8417 8417 9015960621 9015960621 9016750063 9016750063 9016750063 9018906228 9018906242 9018906242 9046705170 9046707215 9046707215 9046707215 91674A1022 91674A1022
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-48060

AXUH85

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-48060

AXUH85

 1
52159 - COVER, REAR BUMPER
52159-48966

AXUH85..G,S

PAINT REQ.

 1
52162D - PIECE, REAR BUMPER
52161-16010

AXUH85

 4
52162E - PIECE, REAR BUMPER
52161-16010

AXUH85

 2
52162E - PIECE, REAR BUMPER
52161-16010

AXUH85

 2
52169C - COVER, REAR BUMPER, LOWER
52169-48160

AXUH85

NO PAINT REQ.

 1
52171C - REINFORCEMENT, REAR BUMPER
52023-48020

AXUH85

 1
52462B - PAD, REAR BUMPER
52462-48030

AXUH85

 2
52462B - PAD, REAR BUMPER
52462-48030

AXUH85

 2
52591 - SEAL, REAR BUMPER SIDE, RH
52591-48170

AXUH85

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-48100

AXUH85

 1
52599 - STOPPER, REAR BUMPER, UPPER
52599-68030

AXUH85

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-48330

AXUH85

 1
52751 - MOULDING, REAR BUMPER
52751-48100

AXUH85..G,S

 1
52751 - MOULDING, REAR BUMPER
52751-48100

AXUH85..G,S

 1
52752 - MOULDING, REAR BUMPER SIDE, RH
52752-48060

AXUH85..G,S

 1
52753 - MOULDING, REAR BUMPER SIDE, LH
52753-48060

AXUH85..G,S

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

AXUH85

 6
76828A - RETAINER, BACK DOOR GARNISH, NO.3
76828-60030

AXUH85

 2
76829A - RETAINER, BACK DOOR GARNISH
76829-60020

AXUH85

 2
Common parts
90159-60621
90167-50063
90189-06228
90189-06242
90467-05170
90467-07215
91674-A1022
Linked diagrams
7403
8417
