AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

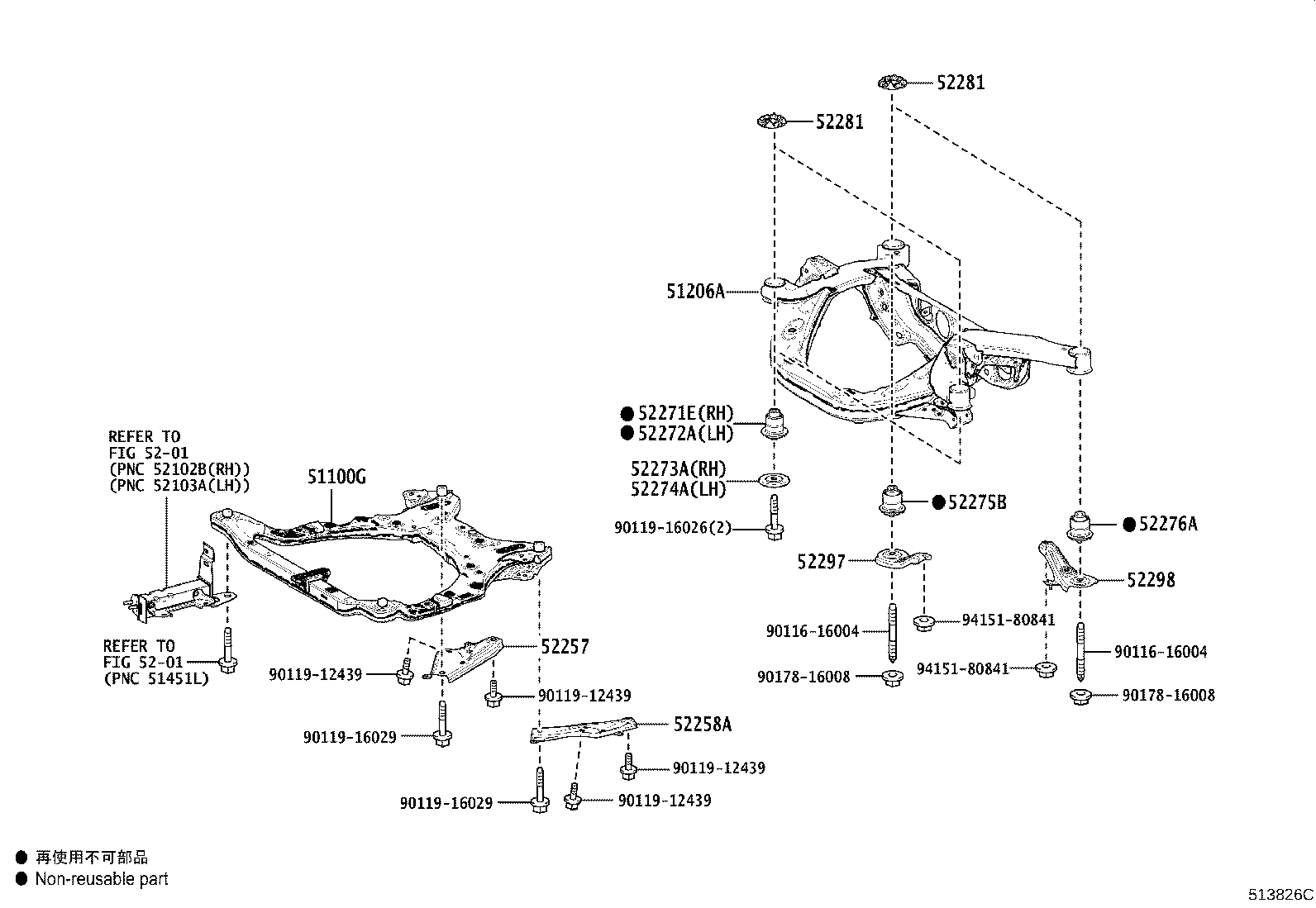

ILLUST NO. 1 OF 2(2007- )
Click highlighted areas on diagram
SUSPENSION CROSSMEMBER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-42011 |
AXUH85 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-42080 |
AXUH85 |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 52257-42020 |
AXUH85 |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 52258-42020 |
AXUH85 |
1 | ||
| 52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH | ||||
| 52271-42010 |
AXUH85 |
1 | ||
| 52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH | ||||
| 52271-42010 |
AXUH85 |
1 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-33030 |
AXUH85 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52273-33030 |
AXUH85 |
1 | ||
| 52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH | ||||
| 52275-42010 |
AXUH85 |
1 | ||
| 52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH | ||||
| 52276-42010 |
AXUH85 |
1 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-33020 |
AXUH85 |
4 | ||
| 52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER | ||||
| 52281-33020 |
AXUH85 |
4 | ||
| 52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH | ||||
| 52297-42020 |
AXUH85 |
1 | ||
| 52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH | ||||
| 52298-42010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90116-16004 | ||||
| 90119-12439 | ||||
| 90119-16026 | ||||
| 90119-16029 | ||||
| 90178-16008 | ||||
| 94151-80841 | ||||
| Linked diagrams | ||||
| 5201 | ||||

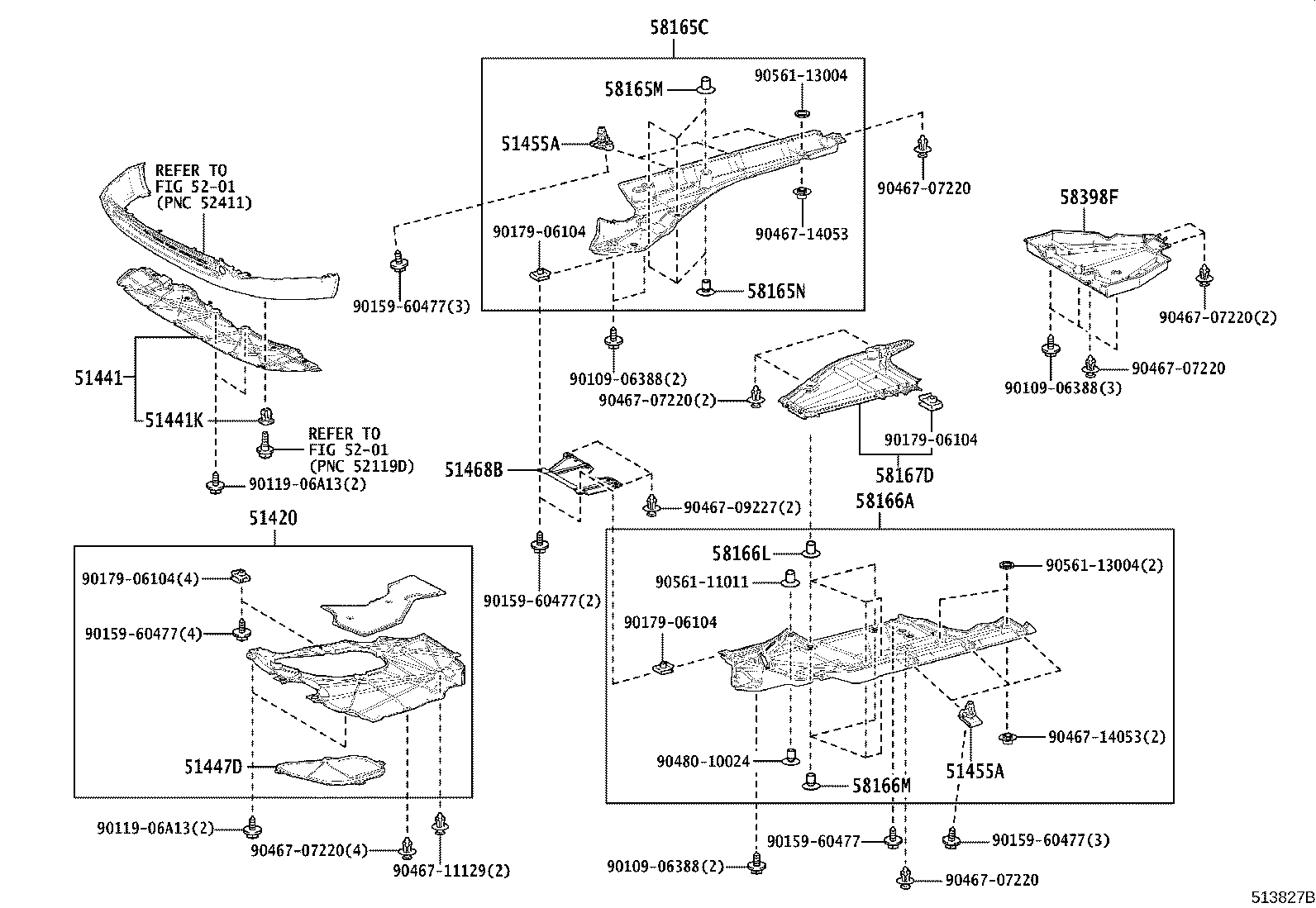

ILLUST NO. 2 OF 2(2007- )
Click highlighted areas on diagram
UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51420 - COVER ASSY, ENGINE UNDER, NO.2 | ||||
| 51420-48040 |
AXUH85 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-48160 |
AXUH85 |
1 | ||
| 51441K - GROMMET(FOR ENGINE UNDER COVER) | ||||
| 90189-06237 |
AXUH85 |
6 | ||
| 51447D - COVER, ENGINE UNDER, NO.4 CENTER | ||||
| 51447-42080 |
AXUH85 |
1 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-48020 |
AXUH85 |
6 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-48020 |
AXUH85 |
6 | ||
| 51468B - INSULATOR, ENGINE UNDER COVER HEAT | ||||
| 51468-42020 |
AXUH85 |
1 | ||
| 58165C - COVER, FRONT FLOOR, RH | ||||
| 58165-42040 |
AXUH85 |
1 | ||
| 58165M - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
AXUH85 SUPER WHITE 2 |
3 | ||
| 58165N - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
AXUH85 BLACK |
3 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-42030 |
AXUH85 |
1 | ||
| 58166L - CLIP, FRONT FLOOR COVER, NO.1 | ||||
| 90467-17026A0 |
AXUH85 SUPER WHITE 2 |
4 | ||
| 58166M - CLIP, FRONT FLOOR COVER, NO.2 | ||||
| 90467-17027C0 |
AXUH85 BLACK |
4 | ||
| 58167D - COVER, FRONT FLOOR, CENTER RH | ||||
| 58167-42010 |
AXUH85 |
1 | ||
| 58398F - COVER, FLOOR UNDER, NO.1 | ||||
| 58398-42040 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90119-06A13 | ||||
| 90159-60477 | ||||
| 90179-06104 | ||||
| 90467-07220 | ||||
| 90467-09227 | ||||
| 90467-11129 | ||||
| 90467-14053 | ||||
| 90480-10024 | ||||
| 90561-11011 | ||||
| 90561-13004 | ||||
| Linked diagrams | ||||
| 5201 | ||||
