AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

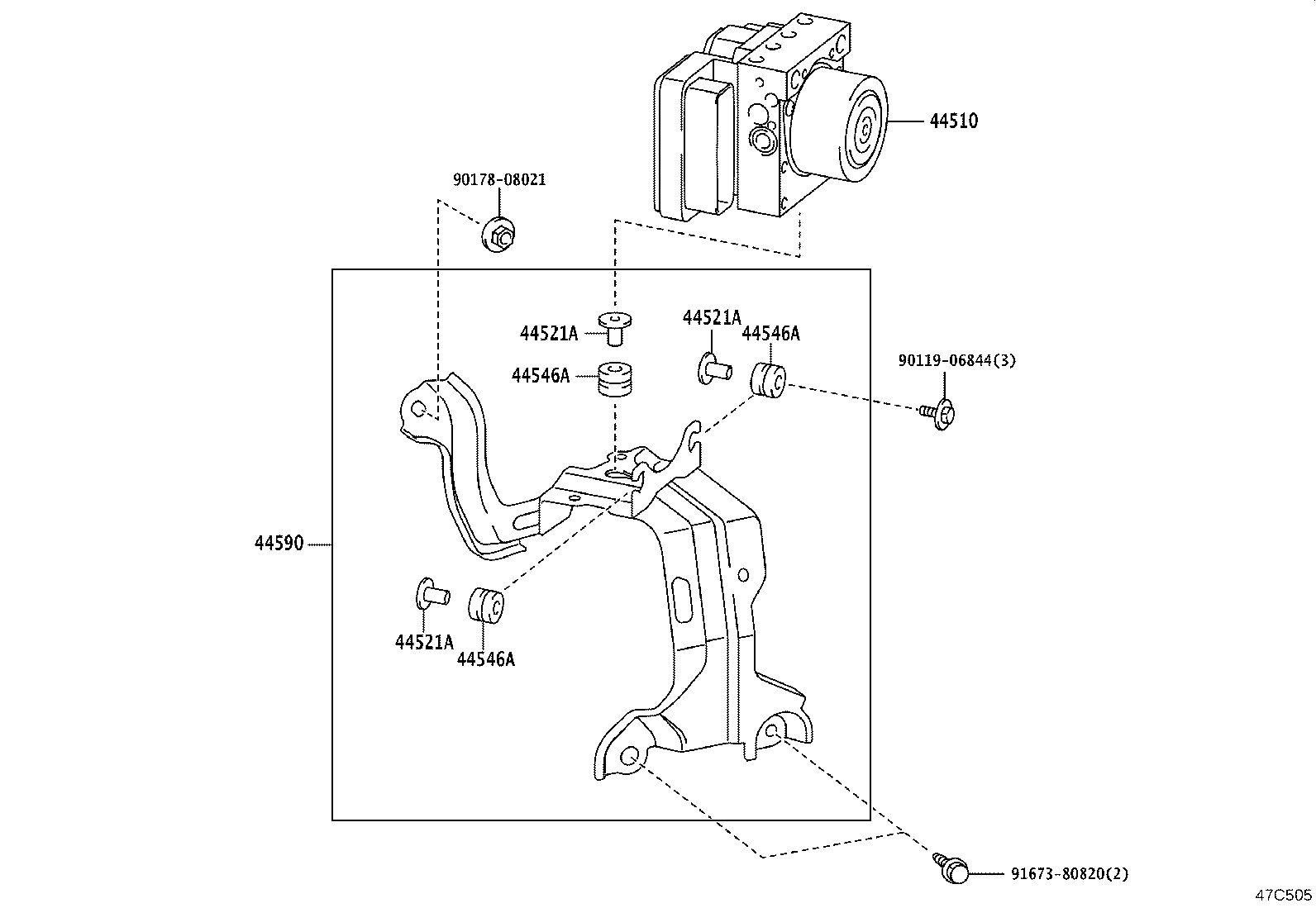

ILLUST NO. 2 OF 2(2007- )
Click highlighted areas on diagram
BRAKE ACTUATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-48C20 |
AXUH85 *614 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
AXUH85 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
AXUH85 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
AXUH85 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
AXUH85 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
AXUH85 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
AXUH85 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-42190 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06844 | ||||
| 90178-08021 | ||||
| 91673-80820 | ||||

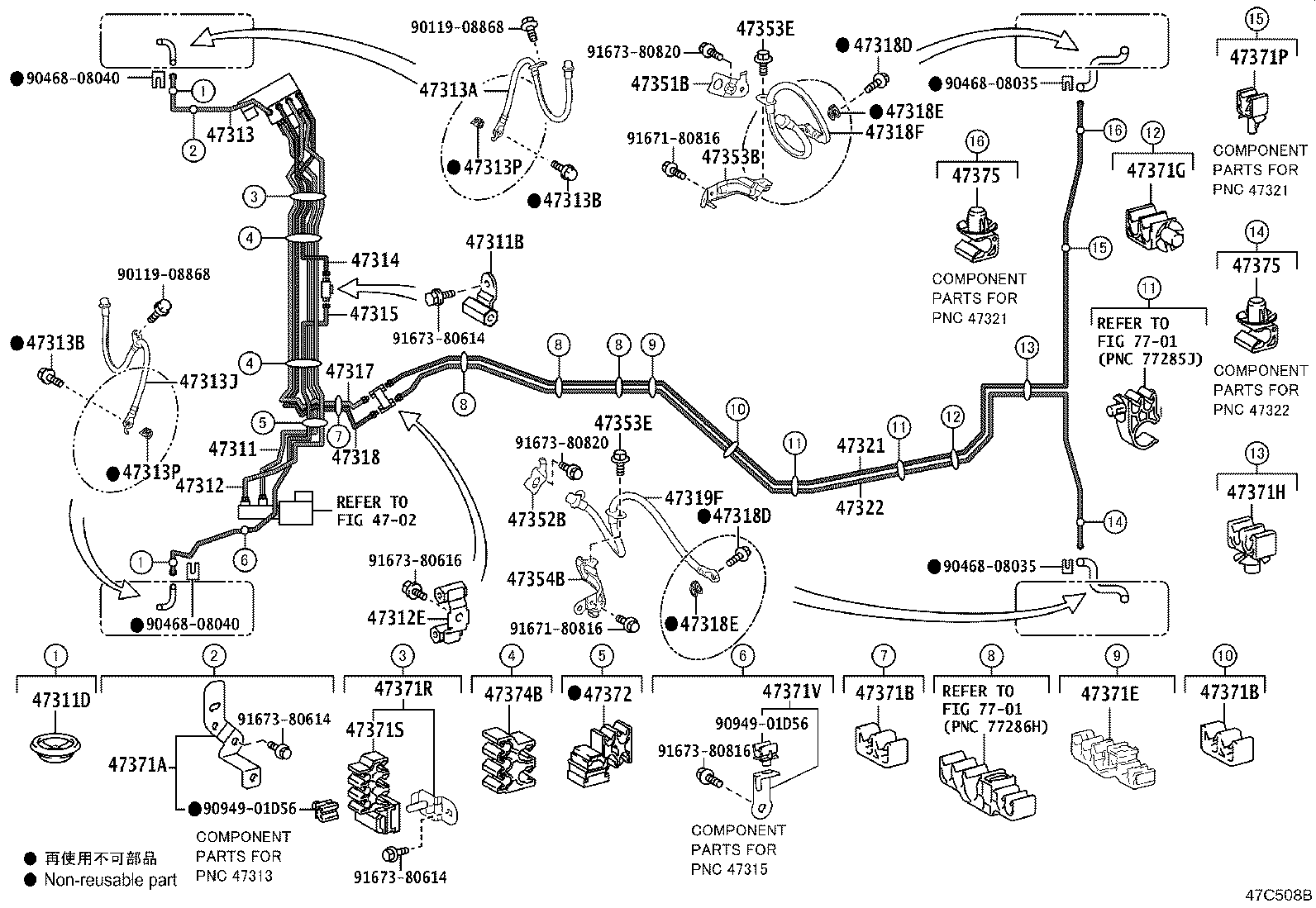

ILLUST NO. 1 OF 2(2007- )
Click highlighted areas on diagram
BRAKE TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-42260 |
AXUH85 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10272 |
AXUH85 |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
AXUH85 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-42430 |
AXUH85 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
AXUH85 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-48070 |
AXUH85 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02J10 |
AXUH85 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXUH85 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXUH85 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02J11 |
AXUH85 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXUH85 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXUH85 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-42280 |
AXUH85 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-42310 |
AXUH85 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-42290 |
AXUH85 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-42290 |
AXUH85 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXUH85 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AXUH85 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXUH85 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
AXUH85 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02J08 |
AXUH85 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02J09 |
AXUH85 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-42210 |
AXUH85 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-42190 |
AXUH85 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-47030 |
AXUH85 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-47030 |
AXUH85 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-10110 |
AXUH85 |
1 | ||
| 47353E - BOLT(FOR FLEXIBLE HOSE BRACKET) | ||||
| 90119-08868 |
AXUH85 |
2 | ||
| 47353E - BOLT(FOR FLEXIBLE HOSE BRACKET) | ||||
| 90119-08868 |
AXUH85 |
2 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-10060 |
AXUH85 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-42130 |
AXUH85 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90464-00903 |
AXUH85 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90464-00903 |
AXUH85 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 77285-42150 |
AXUH85 |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01D13 |
AXUH85 |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 90949-01D12 |
AXUH85 |
1 | ||
| 47371P - CLAMP, BRAKE TUBE, NO.14 | ||||
| 90949-01E01 |
AXUH85 |
1 | ||
| 47371R - CLAMP, BRAKE TUBE, NO.16 | ||||
| 47371-42150 |
AXUH85 |
1 | ||
| 47371S - CLAMP, BRAKE TUBE, NO.17 | ||||
| 90949-01E31 |
AXUH85 |
1 | ||
| 47371V - CLAMP, BRAKE TUBE, NO.20 | ||||
| 47371-42140 |
AXUH85 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01E30 |
AXUH85 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01E40 |
AXUH85 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D17 |
AXUH85 |
2 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D17 |
AXUH85 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 90468-08040 | ||||
| 90949-01D56 | ||||
| 91671-80816 | ||||
| 91673-80614 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||
