AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

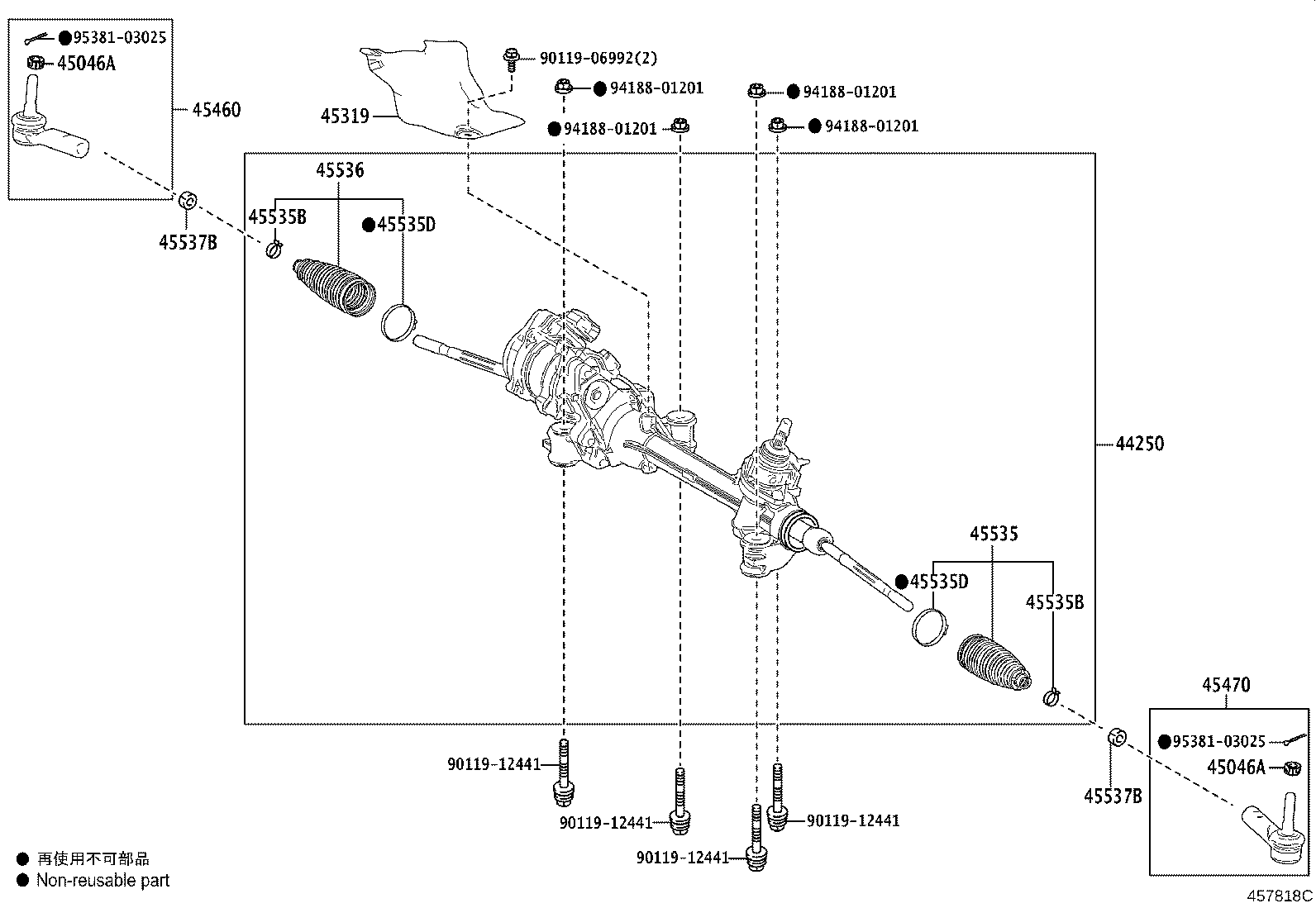

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-48160 |
AXUH85..G,S *614 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12015 |
AXUH85 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12015 |
AXUH85 |
2 | ||
| 45319 - INSULATOR, STEERING GEAR HEAT | ||||
| 45319-42020 |
AXUH85 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-49095 |
AXUH85 |
1 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-49095 |
AXUH85 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-09500 |
AXUH85 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 45537-02020 |
AXUH85 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 45537-02020 |
AXUH85 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 45538-0T010 |
AXUH85 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 45538-0T010 |
AXUH85 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-09500 |
AXUH85 |
1 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90178-16001 |
AXUH85 (J) |
2 | ||
| 90178-A0013 |
AXUH85 (L) |
2 | ||
| 45537B - NUT, RACK END LOCK | ||||
| 90178-16001 |
AXUH85 (J) |
2 | ||
| 90178-A0013 |
AXUH85 (L) |
2 | ||
| Common parts | ||||
| 90119-06992 | ||||
| 90119-12441 | ||||
| 94188-01201 | ||||
| 95381-03025 | ||||
