AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

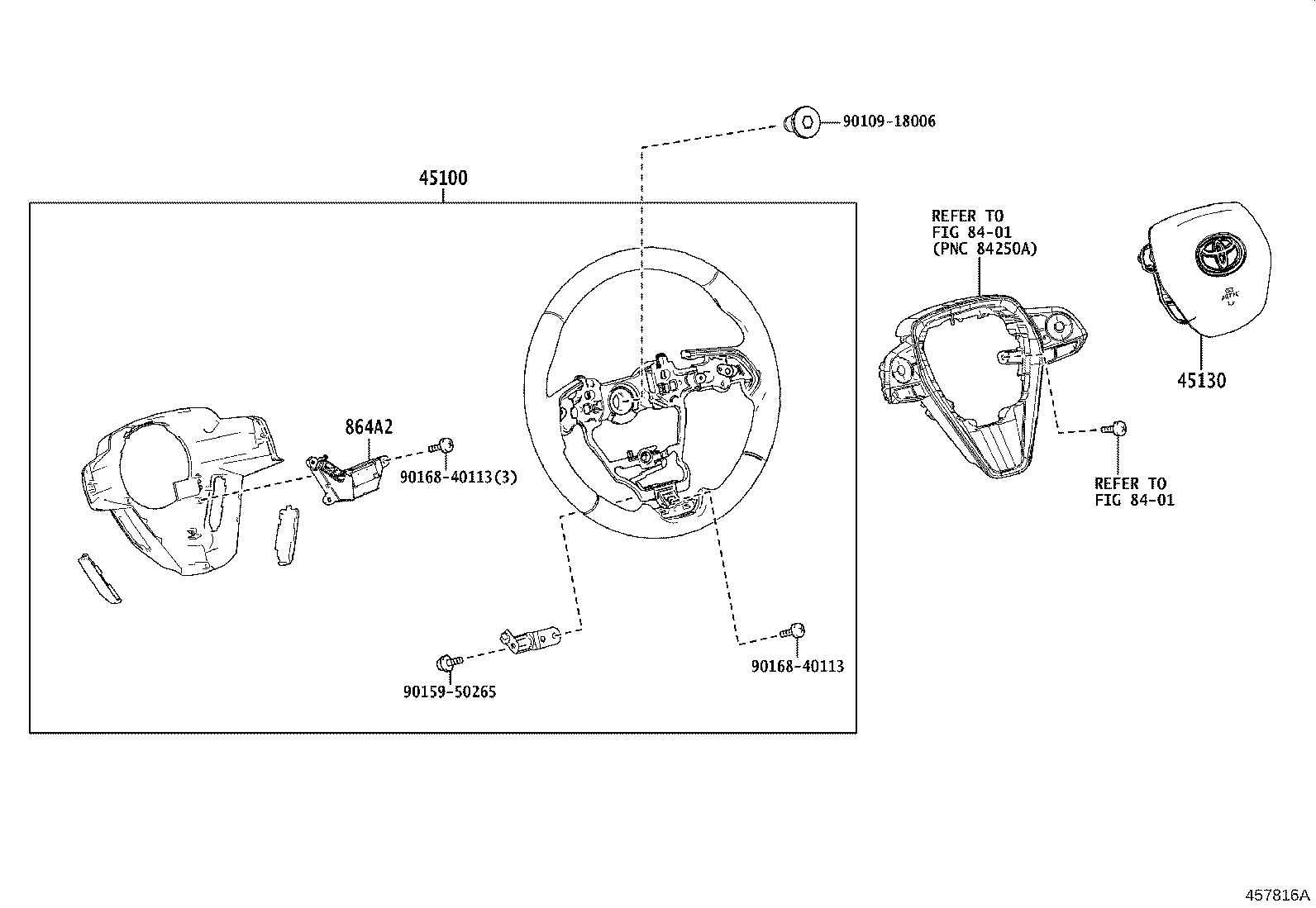

Click highlighted areas on diagram

diagram 45100 45130 8401 8401 864A2 9010918006 9015950265 9016840113 9016840113
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-48680C0

AXUH85..G..USA;AXUH85..(G,M)..CND

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

 1
45100-48690C0

AXUH85..G

3-SPOKE,LEATHER,"LEATHER PACKAGE"*(S),BLACK,TRIM1#,2#,4#

 1
45100-48690C0

AXUH85..S

3-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#

 1
45130 - BUTTON ASSY, HORN
45130-48370C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
864A2 - COMPUTER, STEERING VIBRATION
864A1-42010

AXUH85..G

"LEATHER PACKAGE"*(S)

 1
864A1-42010

AXUH85..S

 1
864A1-42020

AXUH85..G,M

 1
Common parts
90109-18006
90159-50265
90168-40113
Linked diagrams
8401
