AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

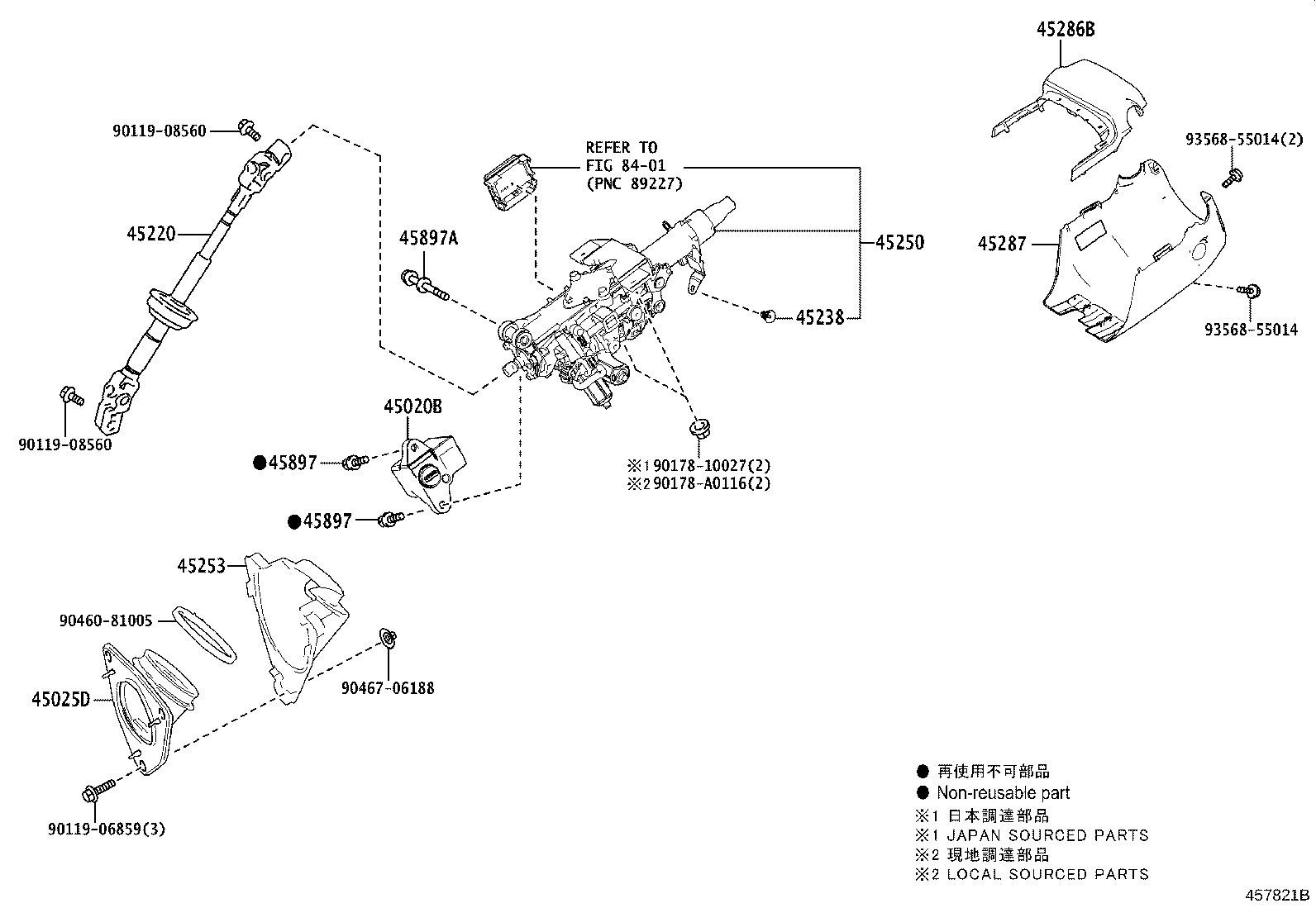

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020B - ACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK | ||||
| 45020-48120 |
AXUH85 |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-42090 |
AXUH85 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-42010 |
AXUH85 |
1 | ||
| 45238 - CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING) | ||||
| 45238-11010 |
AXUH85 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-48420 |
AXUH85 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-42030 |
AXUH85 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-33290C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45024-33240C0 |
AXUH85..CND;AXUH85..(G,S)..USA BLACK,TRIM1#,2#,4# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AXUH85 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
AXUH85 |
2 | ||
| 45897A - BOLT, TILT STEERING PAWL SET | ||||
| 90119-10980 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06859 | ||||
| 90119-08560 | ||||
| 90178-10027 | ||||
| 90178-A0116 | ||||
| 90460-81005 | ||||
| 90467-06188 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
