AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

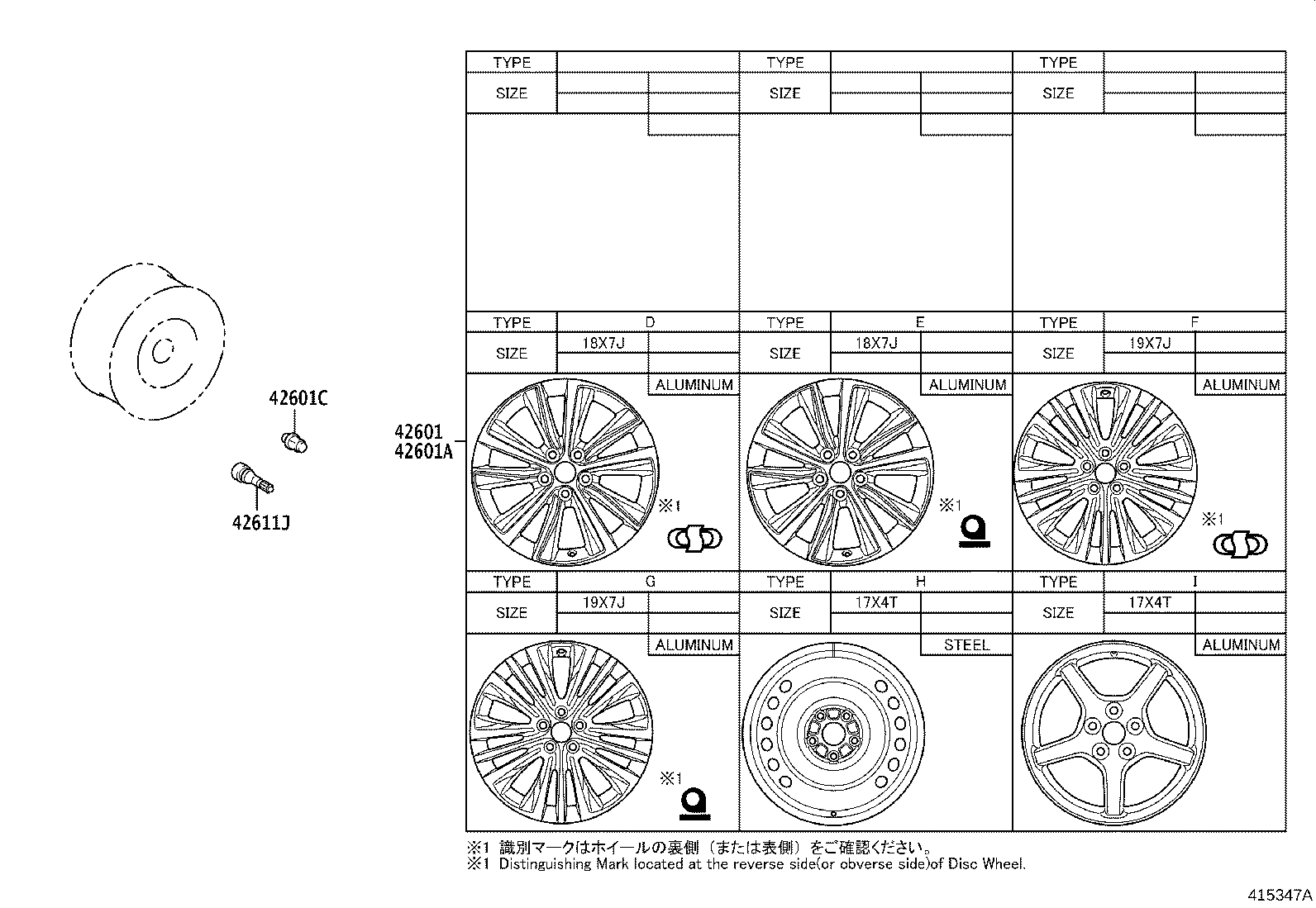

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

diagram 42601 42601A 42601C 42611J
Part # Description Qty Price
42601 - WHEEL, DISC
4261A-48290

AXUH85..G,S

19X7J, #,TYPE F:REFER ILLUST.

 4
4261A-48300

AXUH85..G,S

19X7J, #,TYPE G:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
4261B-42010

AXUH85..USA

17X4T,PUERTO RICO SPEC,TYPE H:REFER ILLUST.

 1
42611-33E70

AXUH85

17X4T,TYPE I:REFER ILLUST.

 1
4261B-42010

AXUH85..USA

17X4T,GUAM,SAIPAN SPEC,TYPE H:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

AXUH85

 20
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

AXUH85

 1

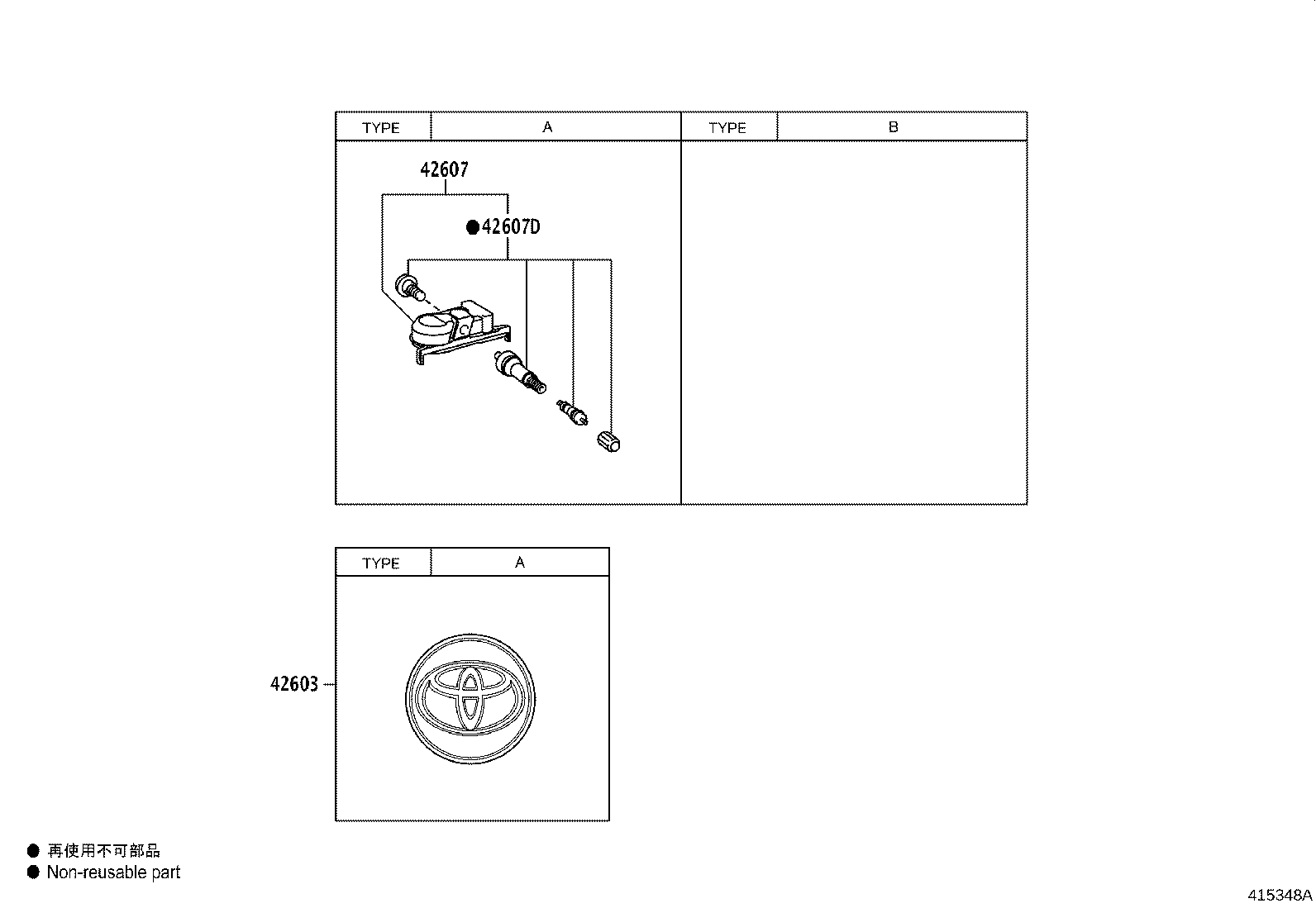

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

diagram 42603 42607 42607D
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-42130

AXUH85

*ALU,TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-12010

AXUH85..G,S

 4
42607D - VALVE, TIRE PRESSURE MONITOR
90942-05043

AXUH85..G,S

 4
