AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

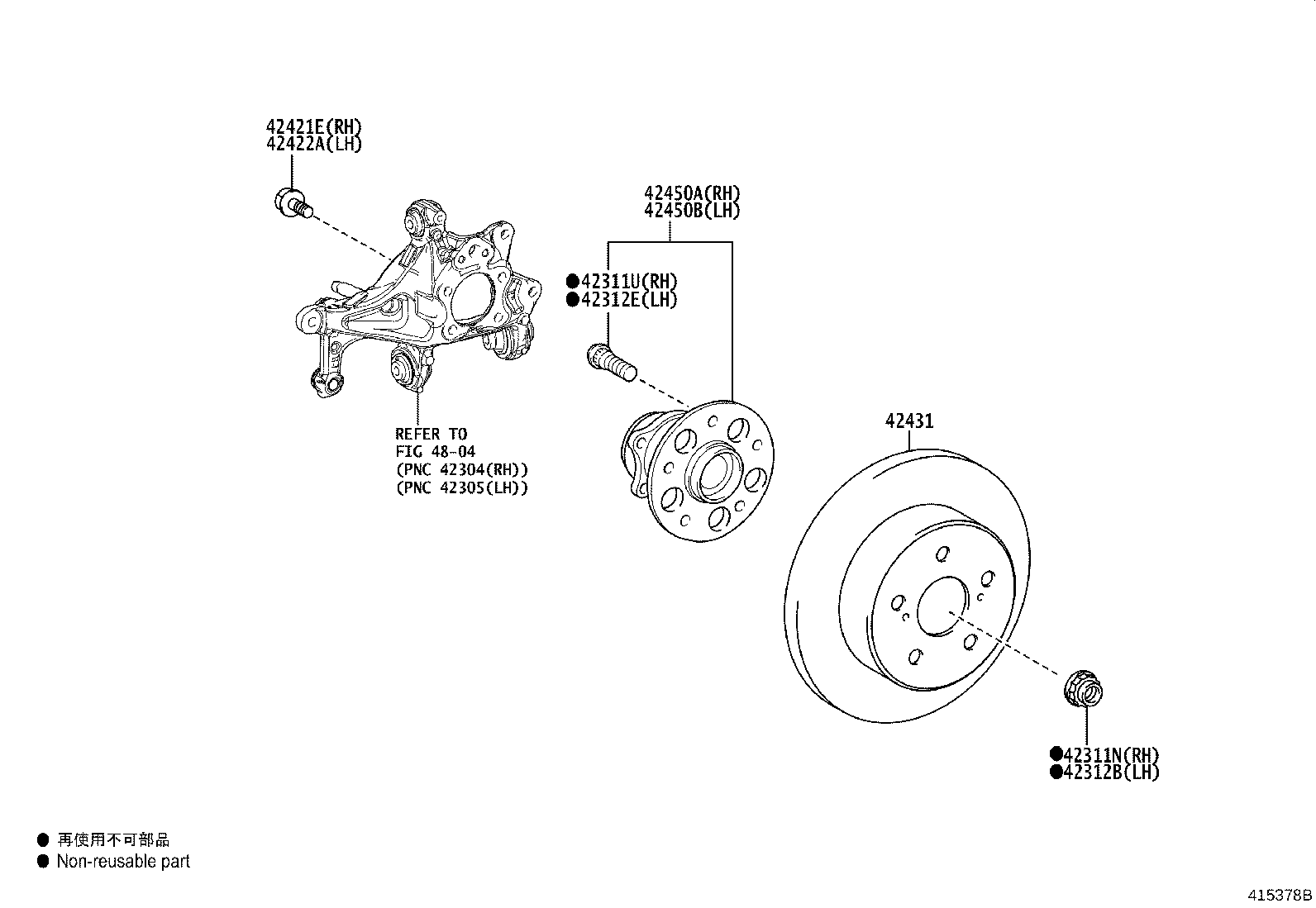

ILLUST NO. 1 OF 2(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
AXUH85 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
AXUH85 |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
AXUH85 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
AXUH85 |
5 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-12406 |
AXUH85 |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-12406 |
AXUH85 |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-78010 |
AXUH85 |
2 | ||
| 42450A - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-42060 |
AXUH85 |
1 | ||
| 42450B - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-42060 |
AXUH85 |
1 | ||
| Linked diagrams | ||||
| 4804 | ||||

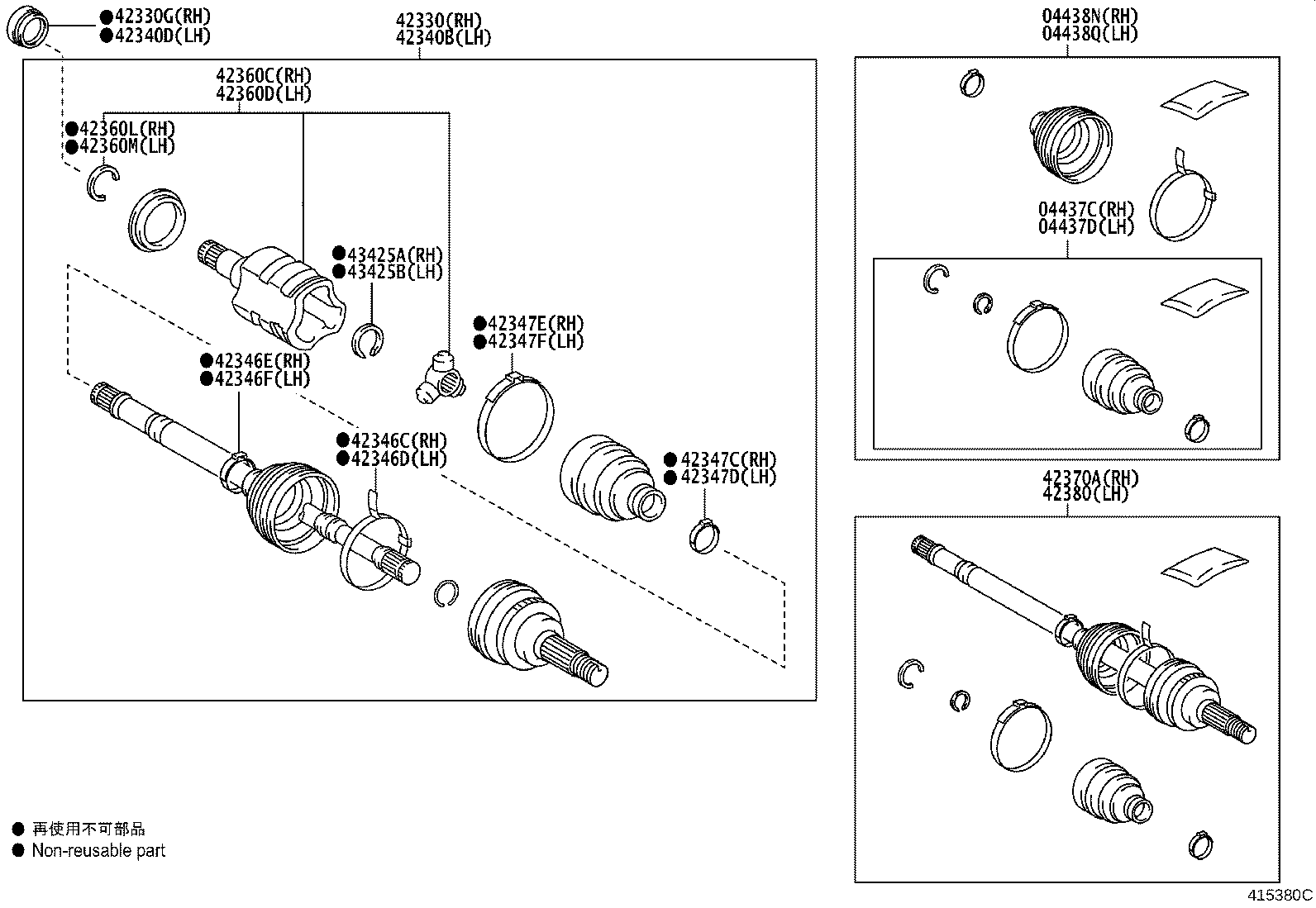

ILLUST NO. 2 OF 2(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04437C - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04439-48050 |
AXUH85 |
1 | ||
| 04437D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04439-48050 |
AXUH85 |
1 | ||
| 04438N - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH | ||||
| 04429-48071 |
AXUH85 |
1 | ||
| 04438Q - BOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH | ||||
| 04429-48071 |
AXUH85 |
1 | ||
| 42330 - SHAFT ASSY, REAR DRIVE, RH | ||||
| 42330-42080 |
AXUH85 |
1 | ||
| 42330G - OIL SEAL, REAR DRIVE SHAFT, RH | ||||
| 90311-42057 |
AXUH85 |
1 | ||
| 42340B - SHAFT ASSY, REAR DRIVE, LH | ||||
| 42340-42060 |
AXUH85 |
1 | ||
| 42340D - OIL SEAL, REAR DRIVE SHAFT, LH | ||||
| 90311-42058 |
AXUH85 |
1 | ||
| 42346C - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH) | ||||
| 42345-58120 |
AXUH85 ID=74.1 |
1 | ||
| 42346D - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH) | ||||
| 42345-58120 |
AXUH85 ID=74.1 |
1 | ||
| 42346E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT R | ||||
| 42345-74040 |
AXUH85 |
1 | ||
| 42346F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT L | ||||
| 42345-74040 |
AXUH85 |
1 | ||
| 42347C - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH) | ||||
| 42345-48210 |
AXUH85 ID=28.1 |
1 | ||
| 42347D - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH) | ||||
| 42345-48210 |
AXUH85 ID=28.1 |
1 | ||
| 42347E - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH | ||||
| 42345-48200 |
AXUH85 |
1 | ||
| 42347F - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH | ||||
| 42345-48200 |
AXUH85 |
1 | ||
| 42360C - JOINT ASSY, REAR DRIVE SHAFT INBOARD, RH | ||||
| 42360-42030 |
AXUH85 |
1 | ||
| 42360D - JOINT ASSY, REAR DRIVE SHAFT INBOARD, LH | ||||
| 42360-42030 |
AXUH85 |
1 | ||
| 42360L - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH | ||||
| 90521-26004 |
AXUH85 |
1 | ||
| 42360M - RING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH | ||||
| 90521-26004 |
AXUH85 |
1 | ||
| 42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH | ||||
| 42370-49375 |
AXUH85 |
1 | ||
| 42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH | ||||
| 42370-49395 |
AXUH85 |
1 | ||
| 43425A - RING, DRIVE SHAFT SNAP, RH | ||||
| 43425-74010 |
AXUH85 |
1 | ||
| 43425B - RING, DRIVE SHAFT SNAP, LH | ||||
| 43425-74010 |
AXUH85 |
1 | ||
