AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )

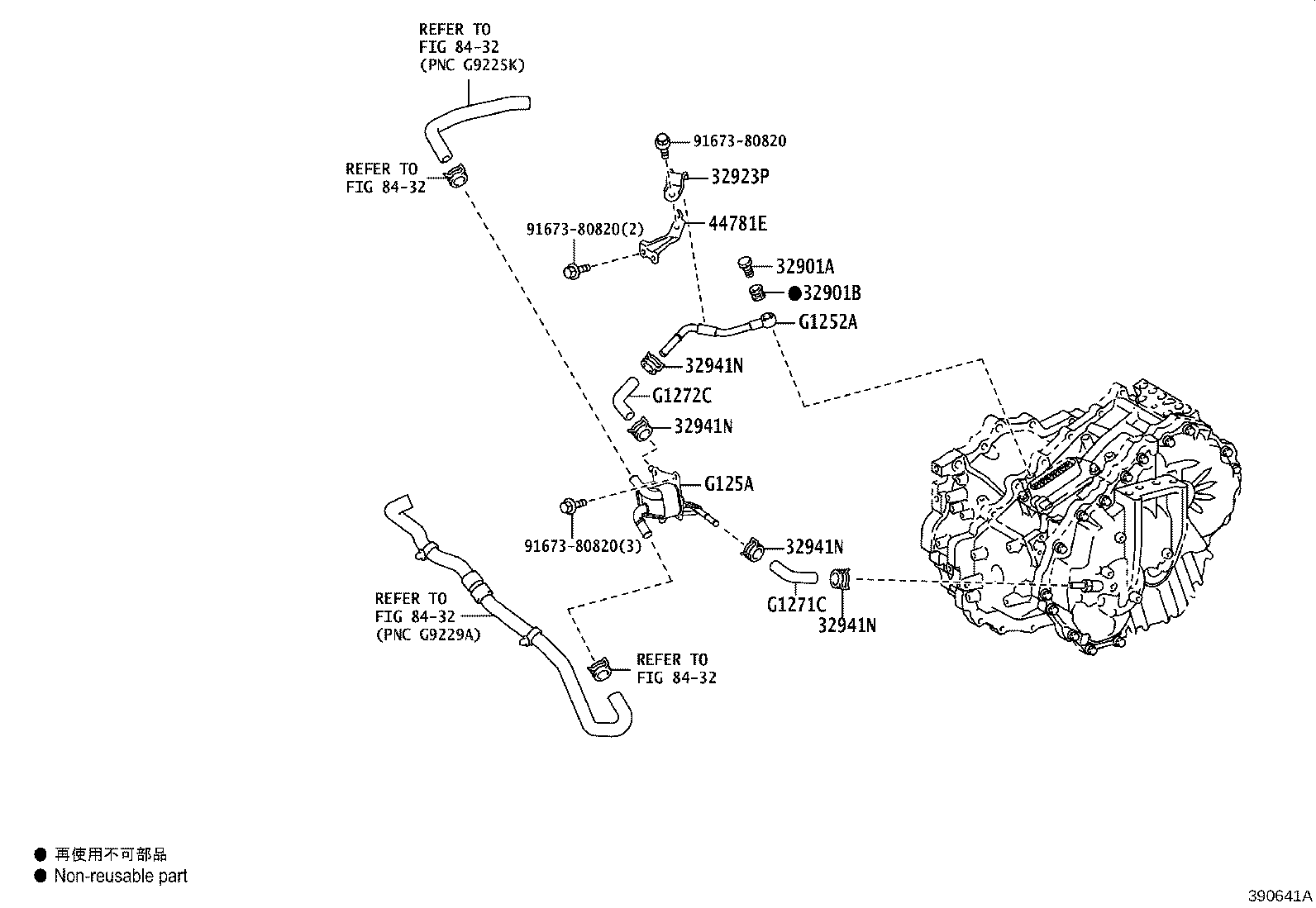

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32901A - BOLT, UNION(FOR OIL COOLER) | ||||
| 90401-12039 |
AXUH85 |
1 | ||
| 32901B - GASKET(FOR OIL COOLER UNION) | ||||
| 90430-12037 |
AXUH85 |
1 | ||
| 32923P - CLAMP, OIL COOLER TUBE, NO.1 | ||||
| 32923-52040 |
AXUH85 |
1 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AXUH85 |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AXUH85 |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AXUH85 |
4 | ||
| 32941N - CLIP, NO.1(FOR OIL COOLER HOSE) | ||||
| 90466-16004 |
AXUH85 |
4 | ||
| 44781E - BRACKET, HOSE | ||||
| 44781-33020 |
AXUH85 |
1 | ||
| G1252A - PIPE, MOTOR COOLING, NO.2 | ||||
| G1252-33010 |
AXUH85 |
1 | ||
| G125A - COOLER, MOTOR COOLING | ||||
| G125A-42010 |
AXUH85 |
1 | ||
| G1271C - HOSE, MOTOR COOLING, NO.1 | ||||
| G1271-33010 |
AXUH85 |
1 | ||
| G1272C - HOSE, MOTOR COOLING, NO.2 | ||||
| G1272-33010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 8432 | ||||
