AXUH85L-ANXGBA (2020)
Toyota Venza
Production
Jul 2020
-
Sep 9999
Engine
A25AFXS
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

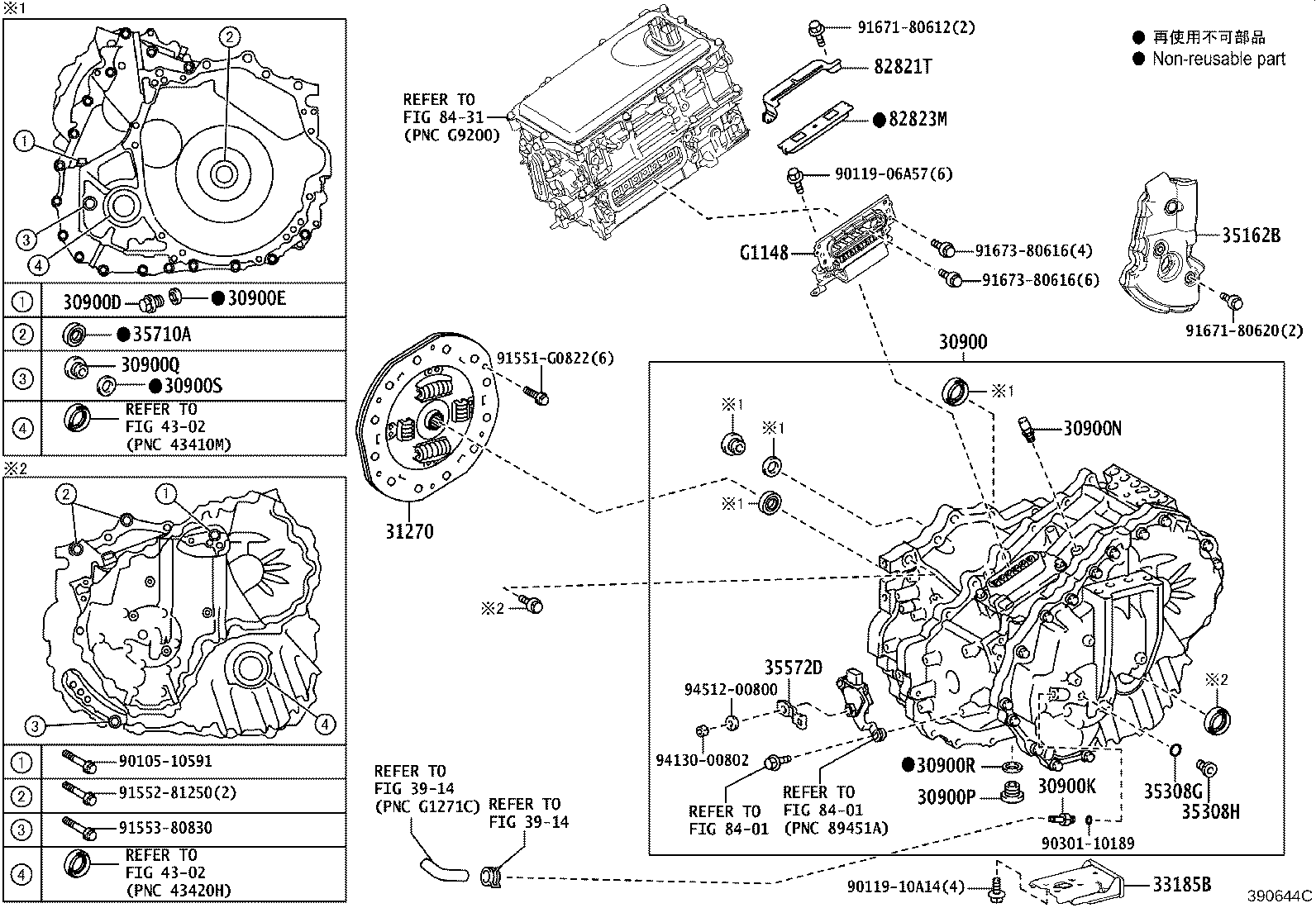

ILLUST NO. 1 OF 2(2007- )USA
Click highlighted areas on diagram
HYBRID VEHICLE TRANSAXLE ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30900 - TRANSAXLE ASSY, HYBRID VEHICLE | ||||
| 30900-42020 |
AXUH85 |
1 | ||
| 30900D - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CAS | ||||
| 90341-18060 |
AXUH85 |
1 | ||
| 30900E - GASKET(FOR TRANSAXLE HOUSING & CASE) | ||||
| 90430-18008 |
AXUH85 |
1 | ||
| 30900K - CONNECTOR, TUBE(FOR TRANSAXLE HOUSING) | ||||
| 90404-13010 |
AXUH85 |
1 | ||
| 30900N - PLUG, BREATHER(FOR TRANSAXLE) | ||||
| 90930-03201 |
AXUH85 |
1 | ||
| 30900P - PLUG, DRAIN(HV) | ||||
| 90341-18016 |
AXUH85 |
1 | ||
| 30900Q - PLUG, FILLER(HV) | ||||
| 90341-18016 |
AXUH85 |
1 | ||
| 30900R - GASKET, DRAIN PLUG(HV) | ||||
| 90430-18008 |
AXUH85 |
1 | ||
| 30900S - GASKET, FILLER PLUG(HV) | ||||
| 90430-18008 |
AXUH85 |
1 | ||
| 31270 - DAMPER ASSY, TRANSMISSION INPUT | ||||
| 31270-33030 |
AXUH85 |
1 | ||
| 33185B - BRACKET, TRANSAXLE UNDER STOPPER | ||||
| 33185-42020 |
AXUH85 |
1 | ||
| 35162B - PROTECTOR, TRANSAXLE CASE | ||||
| 35162-33020 |
AXUH85..USA |
1 | ||
| 35308G - RING, O, NO.2 (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90301-06196 |
AXUH85 |
1 | ||
| 35308H - PLUG (FOR TRANSMISSION OIL PUMP COVER) | ||||
| 90341-08001 |
AXUH85 |
1 | ||
| 35572D - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-33070 |
AXUH85 |
1 | ||
| 35710A - SEAL, TYPE T OIL(FOR INPUT SHAFT) | ||||
| 90311-27011 |
AXUH85 |
1 | ||
| 82821T - COVER, CONNECTOR | ||||
| 82821-47240 |
AXUH85 |
1 | ||
| 82823M - CAP, TERMINAL | ||||
| 82823-47040 |
AXUH85 |
1 | ||
| G1148 - CABLE, MOTOR | ||||
| G1148-33050 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90105-10591 | ||||
| 90119-06A57 | ||||
| 90119-10A14 | ||||
| 90301-10189 | ||||
| 91551-G0822 | ||||
| 91552-81250 | ||||
| 91553-80830 | ||||
| 91671-80612 | ||||
| 91671-80620 | ||||
| 91673-80616 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 3914 | ||||
| 4302 | ||||
| 8401 | ||||
| 8431 | ||||

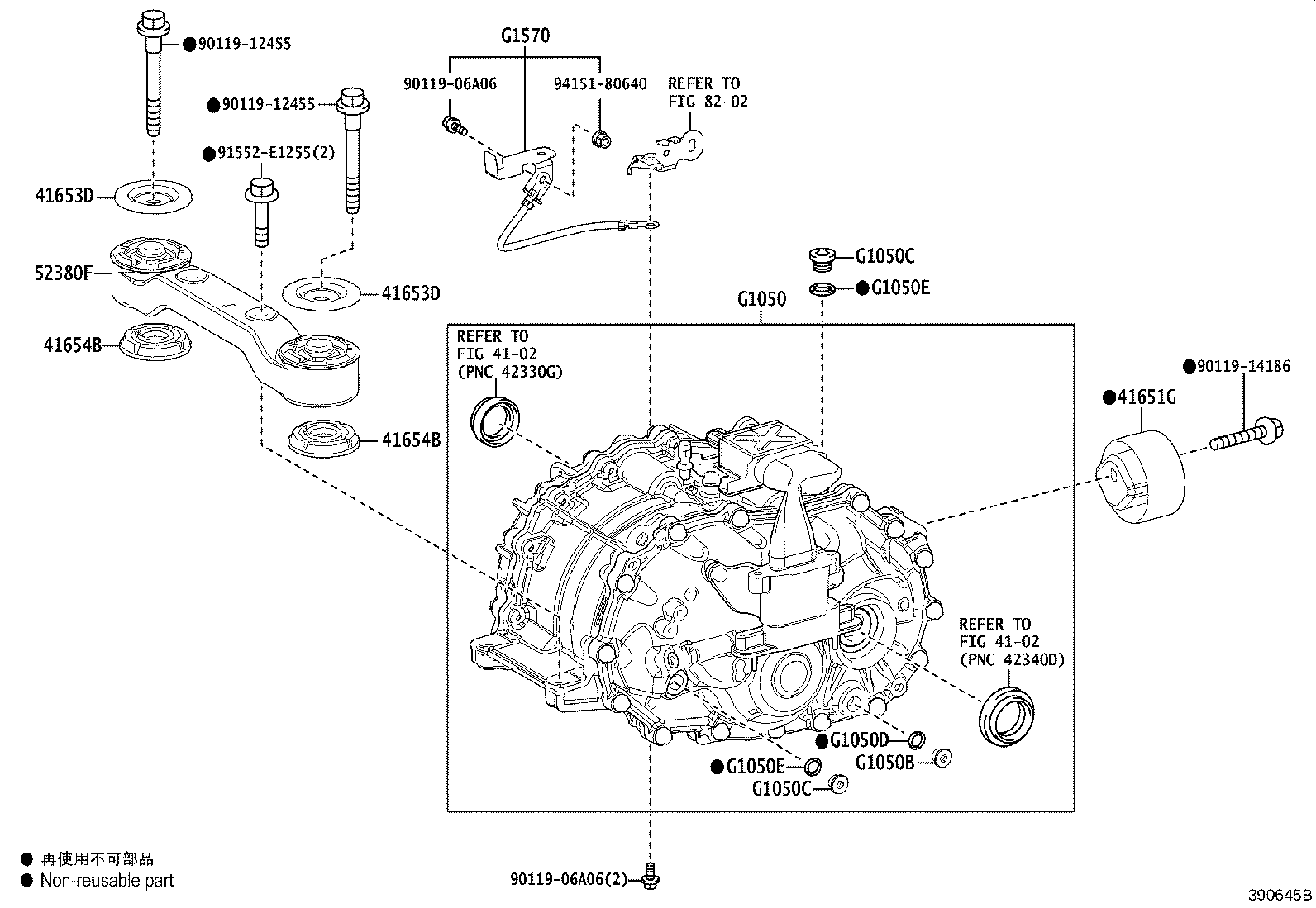

ILLUST NO. 2 OF 2(2007- )
Click highlighted areas on diagram
RR TRACTION W/TRANSAXLE MOTOR ASSY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41651G - CUSHION, DIFFERENTIAL MOUNT | ||||
| 41651-42150 |
AXUH85 |
1 | ||
| 41653D - STOPPER, DIFFERENTIAL MOUNT,UPPER | ||||
| 41653-42020 |
AXUH85 |
2 | ||
| 41653D - STOPPER, DIFFERENTIAL MOUNT,UPPER | ||||
| 41653-42020 |
AXUH85 |
2 | ||
| 41654B - STOPPER, DIFFERENTIAL MOUNT,LOWER | ||||
| 41654-42020 |
AXUH85 |
2 | ||
| 41654B - STOPPER, DIFFERENTIAL MOUNT,LOWER | ||||
| 41654-42020 |
AXUH85 |
2 | ||
| 52380F - SUPPORT ASSY, DIFFERENTIAL, FRONT | ||||
| 52380-42160 |
AXUH85 |
1 | ||
| G1050 - MOTOR ASSY, RR TRACTION W/TRANSAXLE | ||||
| G1050-42010 |
AXUH85 |
1 | ||
| G1050B - PLUG, DRAIN(FOR REAR TRACTION MOTOR) | ||||
| 90341-18051 |
AXUH85 |
1 | ||
| G1050C - PLUG, FILLER(FOR REAR TRACTION MOTOR) | ||||
| 90341-18023 |
AXUH85 |
1 | ||
| G1050C - PLUG, FILLER(FOR REAR TRACTION MOTOR) | ||||
| 90341-18023 |
AXUH85 |
1 | ||
| G1050D - GASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR) | ||||
| 90430-18008 |
AXUH85 |
1 | ||
| G1050E - GASKET, FILLER PLUG(FOR REAR TRACTION MOTOR) | ||||
| 90430-18008 |
AXUH85 |
1 | ||
| G1050E - GASKET, FILLER PLUG(FOR REAR TRACTION MOTOR) | ||||
| 90430-18008 |
AXUH85 |
1 | ||
| G1570 - CABLE ASSY, REAR TRACTION MOTOR BOND | ||||
| G1570-42010 |
AXUH85 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-12455 | ||||
| 90119-14186 | ||||
| 91552-E1255 | ||||
| 94151-80640 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8202 | ||||
