AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

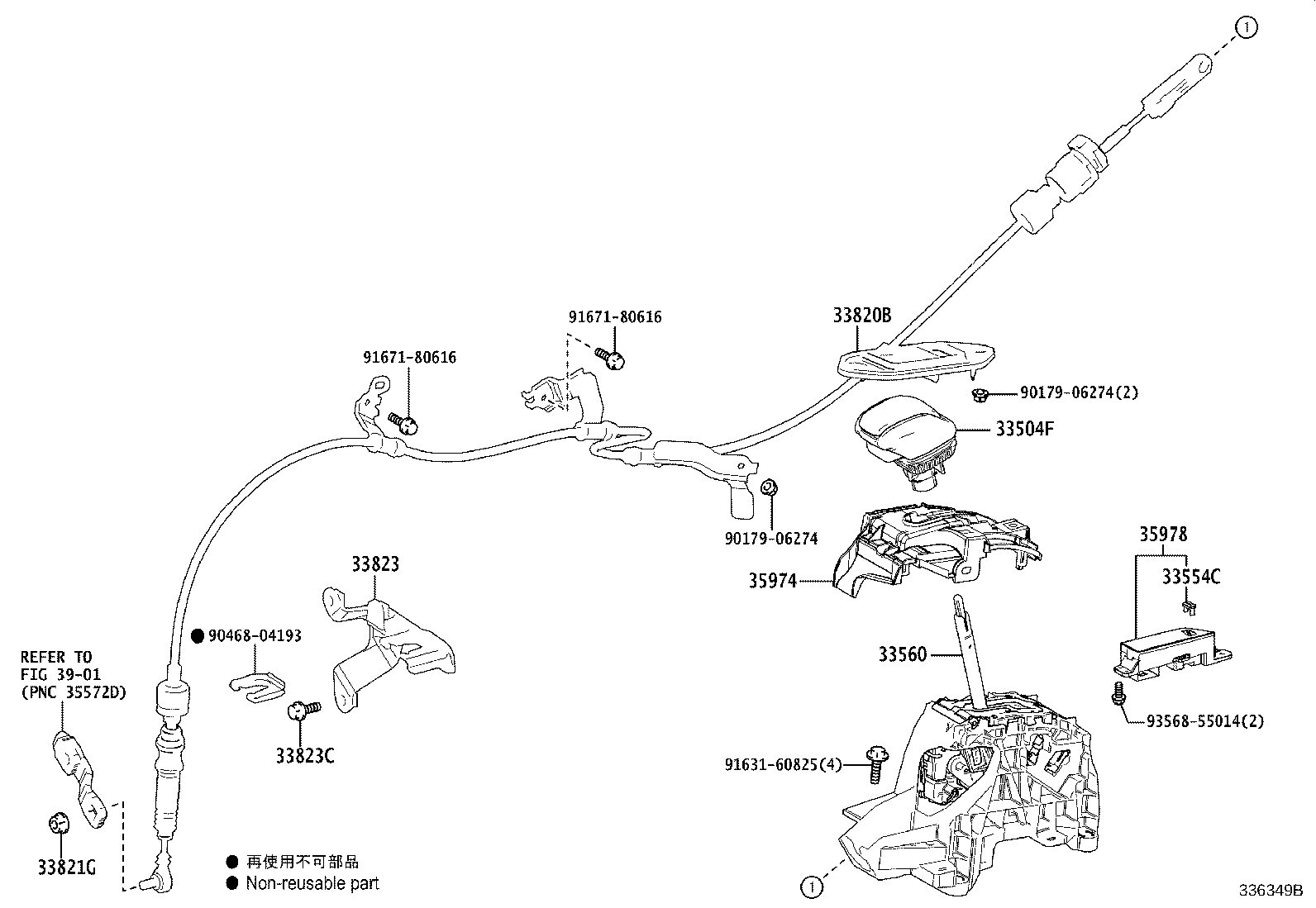

Click highlighted areas on diagram

diagram 33504F 33554C 33560 33820B 33821G 33823 33823C 35974 35978 3901 9017906274 9017906274 9046804193 9163160825 9167180616 9167180616 9356855014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-40050C0

AXUH85..CND;AXUH85..(G,S)..USA

BLACK,TRIM1#,2#,4#

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-48110

AXUH85

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12650

AXUH85

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48450

AXUH85

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

AXUH85

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-42050

AXUH85

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

AXUH85

 2
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-48180

AXUH85

 1
35978 - INDICATOR, SHIFT POSITION
35978-48080

AXUH85

 1
Common parts
90179-06274
90468-04193
91631-60825
91671-80616
93568-55014
Linked diagrams
3901
