AXUH85L-ANXGBA (2020)
Toyota Venza
(2007- )

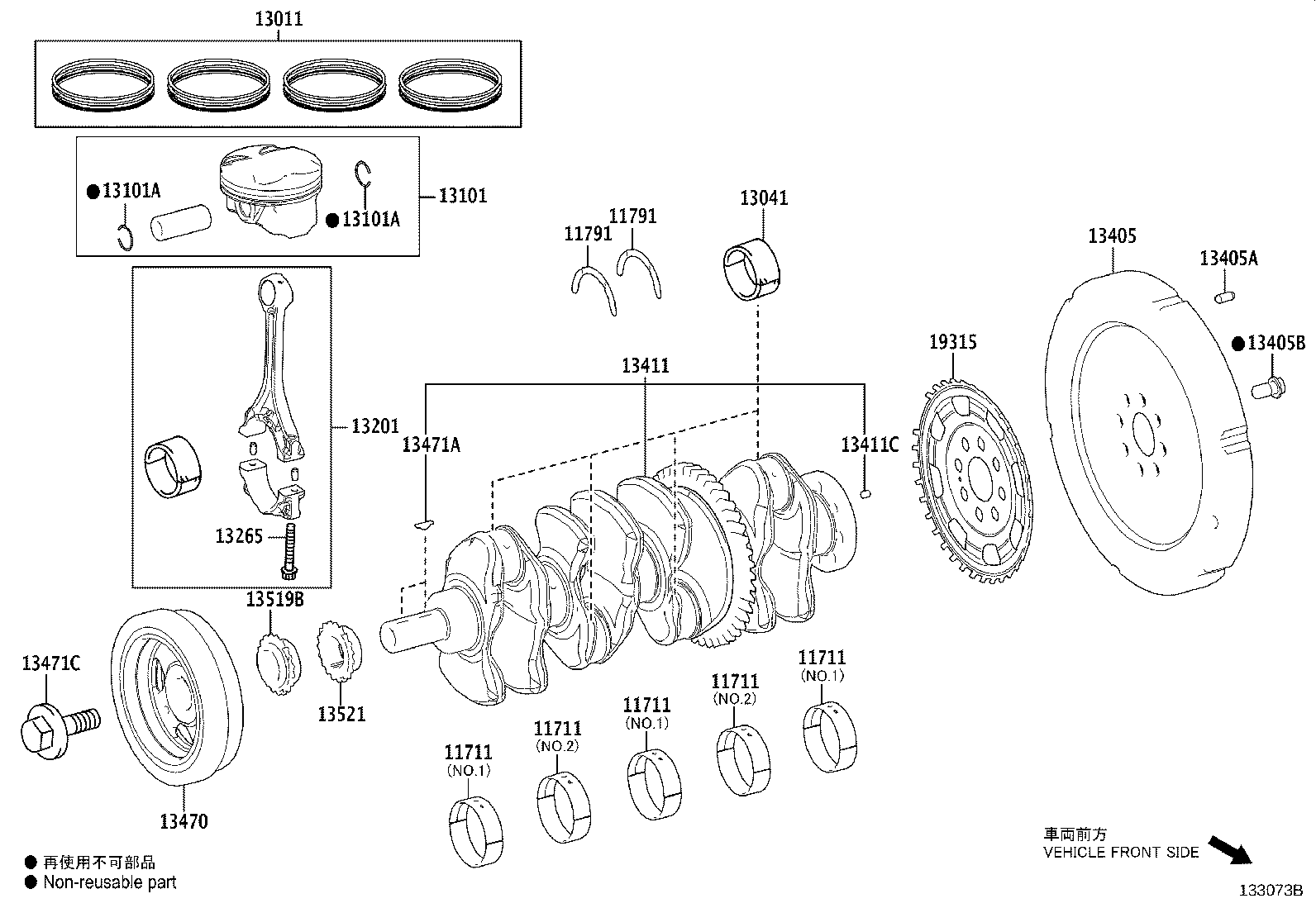

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2502003 |
A25AFXS..AXUH85 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-2502002 |
A25AFXS..AXUH85 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-2502005 |
A25AFXS..AXUH85 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-2501003 |
A25AFXS..AXUH85 MARK 3,NO.1,REFER R/M |
3 | ||
| 11701-2501004 |
A25AFXS..AXUH85 MARK 4,NO.1,REFER R/M |
3 | ||
| 11701-2502004 |
A25AFXS..AXUH85 MARK 4,NO.2,REFER R/M |
2 | ||
| 11701-2501001 |
A25AFXS..AXUH85 MARK 1,NO.1,REFER R/M |
3 | ||
| 11701-2501002 |
A25AFXS..AXUH85 MARK 2,NO.1,REFER R/M |
3 | ||
| 11701-2501005 |
A25AFXS..AXUH85 MARK 5,NO.1,REFER R/M |
3 | ||
| 11701-2502001 |
A25AFXS..AXUH85 MARK 1,NO.2,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2502003 |
A25AFXS..AXUH85 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-2502002 |
A25AFXS..AXUH85 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-2502005 |
A25AFXS..AXUH85 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-2501003 |
A25AFXS..AXUH85 MARK 3,NO.1,REFER R/M |
3 | ||
| 11701-2501004 |
A25AFXS..AXUH85 MARK 4,NO.1,REFER R/M |
3 | ||
| 11701-2502004 |
A25AFXS..AXUH85 MARK 4,NO.2,REFER R/M |
2 | ||
| 11701-2501001 |
A25AFXS..AXUH85 MARK 1,NO.1,REFER R/M |
3 | ||
| 11701-2501002 |
A25AFXS..AXUH85 MARK 2,NO.1,REFER R/M |
3 | ||
| 11701-2501005 |
A25AFXS..AXUH85 MARK 5,NO.1,REFER R/M |
3 | ||
| 11701-2502001 |
A25AFXS..AXUH85 MARK 1,NO.2,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2502003 |
A25AFXS..AXUH85 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-2502002 |
A25AFXS..AXUH85 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-2502005 |
A25AFXS..AXUH85 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-2501003 |
A25AFXS..AXUH85 MARK 3,NO.1,REFER R/M |
3 | ||
| 11701-2501004 |
A25AFXS..AXUH85 MARK 4,NO.1,REFER R/M |
3 | ||
| 11701-2502004 |
A25AFXS..AXUH85 MARK 4,NO.2,REFER R/M |
2 | ||
| 11701-2501001 |
A25AFXS..AXUH85 MARK 1,NO.1,REFER R/M |
3 | ||
| 11701-2501002 |
A25AFXS..AXUH85 MARK 2,NO.1,REFER R/M |
3 | ||
| 11701-2501005 |
A25AFXS..AXUH85 MARK 5,NO.1,REFER R/M |
3 | ||
| 11701-2502001 |
A25AFXS..AXUH85 MARK 1,NO.2,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2502003 |
A25AFXS..AXUH85 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-2502002 |
A25AFXS..AXUH85 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-2502005 |
A25AFXS..AXUH85 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-2501003 |
A25AFXS..AXUH85 MARK 3,NO.1,REFER R/M |
3 | ||
| 11701-2501004 |
A25AFXS..AXUH85 MARK 4,NO.1,REFER R/M |
3 | ||
| 11701-2502004 |
A25AFXS..AXUH85 MARK 4,NO.2,REFER R/M |
2 | ||
| 11701-2501001 |
A25AFXS..AXUH85 MARK 1,NO.1,REFER R/M |
3 | ||
| 11701-2501002 |
A25AFXS..AXUH85 MARK 2,NO.1,REFER R/M |
3 | ||
| 11701-2501005 |
A25AFXS..AXUH85 MARK 5,NO.1,REFER R/M |
3 | ||
| 11701-2502001 |
A25AFXS..AXUH85 MARK 1,NO.2,REFER R/M |
2 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-2502003 |
A25AFXS..AXUH85 MARK 3,NO.2,REFER R/M |
2 | ||
| 11701-2502002 |
A25AFXS..AXUH85 MARK 2,NO.2,REFER R/M |
2 | ||
| 11701-2502005 |
A25AFXS..AXUH85 MARK 5,NO.2,REFER R/M |
2 | ||
| 11701-2501003 |
A25AFXS..AXUH85 MARK 3,NO.1,REFER R/M |
3 | ||
| 11701-2501004 |
A25AFXS..AXUH85 MARK 4,NO.1,REFER R/M |
3 | ||
| 11701-2502004 |
A25AFXS..AXUH85 MARK 4,NO.2,REFER R/M |
2 | ||
| 11701-2501001 |
A25AFXS..AXUH85 MARK 1,NO.1,REFER R/M |
3 | ||
| 11701-2501002 |
A25AFXS..AXUH85 MARK 2,NO.1,REFER R/M |
3 | ||
| 11701-2501005 |
A25AFXS..AXUH85 MARK 5,NO.1,REFER R/M |
3 | ||
| 11701-2502001 |
A25AFXS..AXUH85 MARK 1,NO.2,REFER R/M |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-25030 |
A25AFXS..AXUH85 STD |
2 | ||
| 11791-25040 |
A25AFXS..AXUH85 STD |
2 | ||
| 11791 - WASHER, CRANKSHAFT THRUST, UPPER | ||||
| 11791-25030 |
A25AFXS..AXUH85 STD |
2 | ||
| 11791-25040 |
A25AFXS..AXUH85 STD |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-25080 |
A25AFXS..AXUH85 STD |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-2502001 |
A25AFXS..AXUH85 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-2502003 |
A25AFXS..AXUH85 MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13041-2502002 |
A25AFXS..AXUH85 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-25040 |
A25AFXS..AXUH85 STD |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-21024 |
A25AFXS..AXUH85 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-21024 |
A25AFXS..AXUH85 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-29815B0 |
A25AFXS..AXUH85 MARK B,REFER REPAIR MANUAL |
4 | ||
| 13201-29815A0 |
A25AFXS..AXUH85 MARK A,REFER REPAIR MANUAL |
4 | ||
| 13201-29815C0 |
A25AFXS..AXUH85 MARK C,REFER REPAIR MANUAL |
4 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-25020 |
A25AFXS..AXUH85 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13451-25030 |
A25AFXS..AXUH85 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08120 |
A25AFXS..AXUH85 L=18,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12404 |
A25AFXS..AXUH85 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-25010 |
A25AFXS..AXUH85 |
1 | ||
| 13411C - PIN, STRAIGHT(FOR CRANKSHAFT) | ||||
| 90250-06035 |
A25AFXS..AXUH85 |
1 | ||
| 13470 - PULLEY ASSY, CRANKSHAFT | ||||
| 13470-25020 |
A25AFXS..AXUH85 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-04001 |
A25AFXS..AXUH85 |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-16020 |
A25AFXS..AXUH85 |
1 | ||
| 13519B - SPROCKET, OIL PUMP DRIVE | ||||
| 13519-25010 |
A25AFXS..AXUH85 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-25010 |
A25AFXS..AXUH85 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-25011 |
A25AFXS..AXUH85 |
1 | ||
