AXUH85L-ANXGBA (2020)

Toyota Venza

Production Jul 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

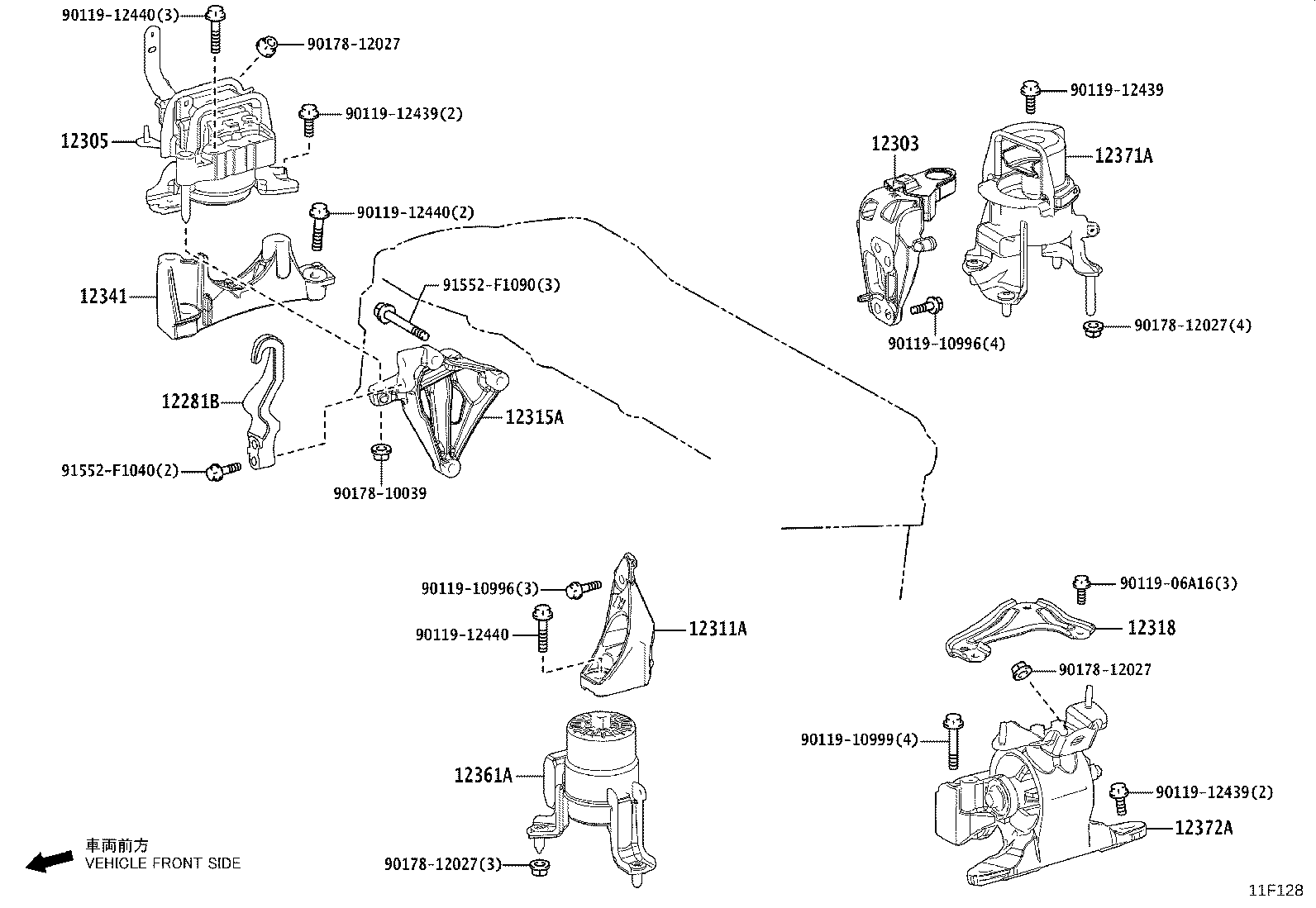

Click highlighted areas on diagram

diagram 12281B 12303 12305 12311A 12315A 12318 12341 12361A 12371A 12372A 9011906A16 9011910996 9011910996 9011910999 9011912439 9011912439 9011912439 9011912440 9011912440 9011912440 9017810039 9017812027 9017812027 9017812027 9017812027 91552F1040 91552F1090
Part # Description Qty Price
12281B - HANGER, ENGINE, NO.1
12281-25030

A25AFXS..AXUH85

 1
12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR
12303-25020

A25AFXS..AXUH85

 1
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-25040

A25AFXS..AXUH85

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-25080

A25AFXS..AXUH85

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-25031

A25AFXS..AXUH85

 1
12318 - STAY, ENGINE MOUNTING, LH
12318-25020

A25AFXS..AXUH85

 1
12341 - SPACER, ENGINE MOUNTING
12341-25010

A25AFXS..AXUH85

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-25090

A25AFXS..AXUH85

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-25120

A25AFXS..AXUH85

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12306-25020

A25AFXS..AXUH85

 1
Common parts
90119-06A16
90119-10996
90119-10999
90119-12439
90119-12440
90178-10039
90178-12027
91552-F1040
91552-F1090
