AGV15L-AWTGKA (2012)

Toyota Venza

Production May 2012 - Dec 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1205- )

Click highlighted areas on diagram

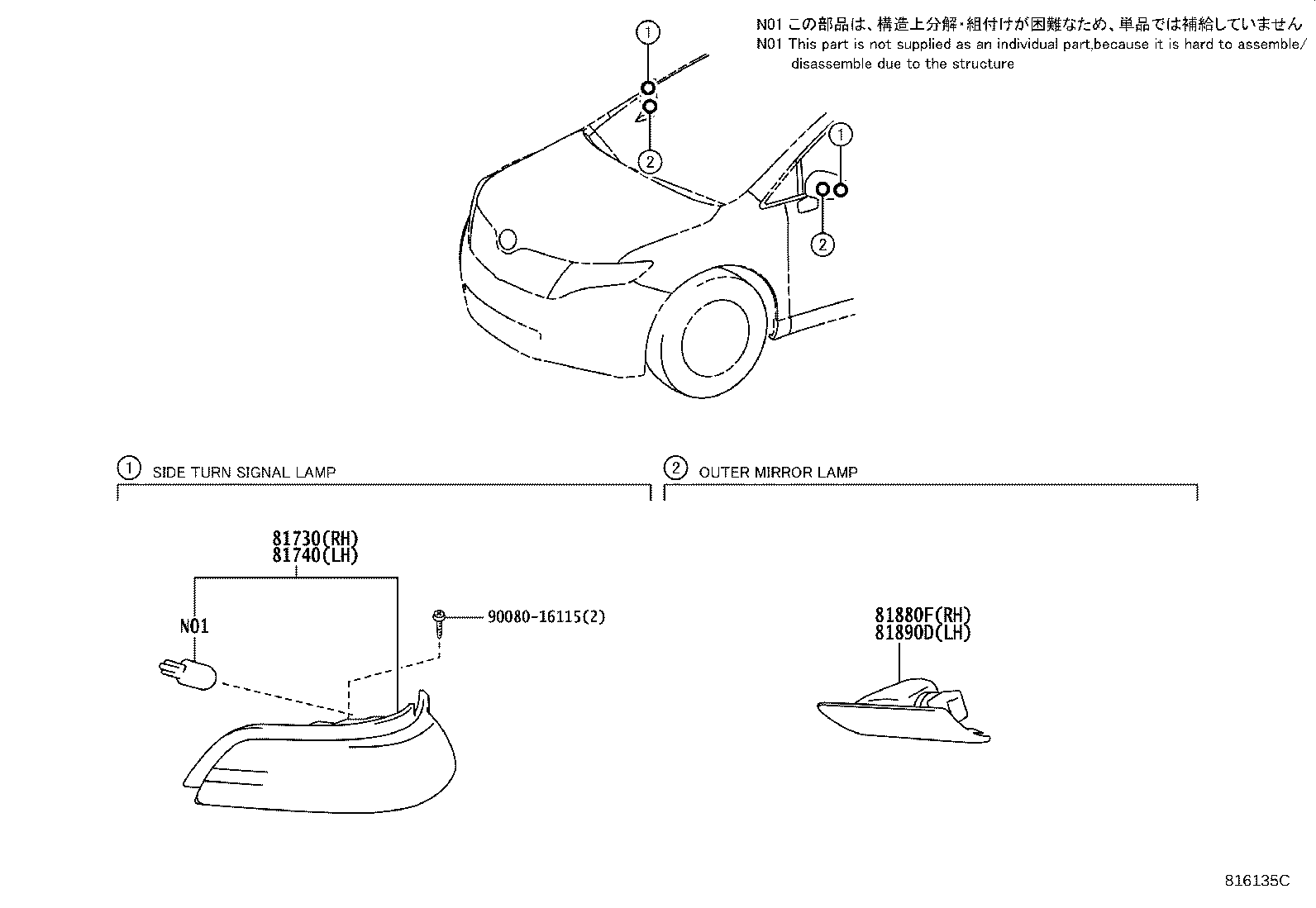

diagram 81730 81740 81880F 81890D 9008016115
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-52100

AGV1#,GGV1#

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-52050

AGV1#,GGV1#

 1
81880F - LAMP ASSY, OUTER MIRROR, RH
81880-0T010

AGV1#,GGV1#

 1
81890D - LAMP ASSY, OUTER MIRROR, LH
81890-0T010

AGV1#,GGV1#

 1
Common parts
90080-16115
