AGV10L-AWTGKA (2012)

Toyota Venza

Production May 2012 - Dec 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

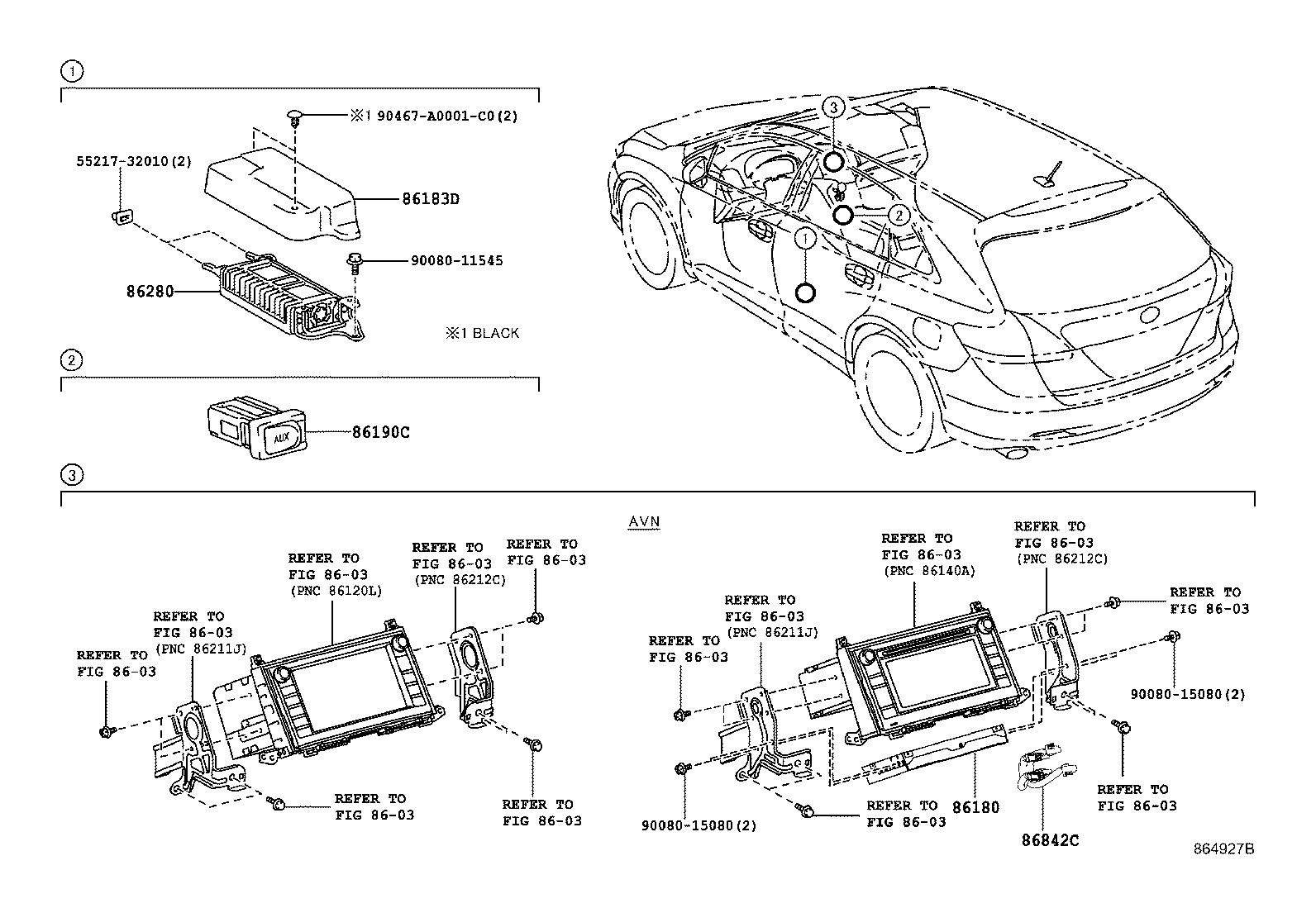

ILLUST NO. 1 OF 2(1205- )

Click highlighted areas on diagram

diagram 5521732010 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 8603 86180 86183D 86190C 86280 86842C 9008011545 9008015080 9008015080 90467A0001C0
Part # Description Qty Price
86180 - TUNER ASSY, STEREO COMPONENT
86180-0E011

AGV1#,GGV1#

PIONEER,AUDIO-13CY AVN JBL 13SP (T4)

 1
86180-0E021

AGV1#,GGV1#

PIONEER,CANADA SPEC&AUDIO-13CY DA DLX 6SP (T2)

 1
86180-0T020

AGV1#,GGV1#

CANADA SPEC&CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH

 1
86180-0E021

AGV1#,GGV1#

PIONEER,AUDIO-13CY AVN 6SP (T3)

 1
86180-0E021

AGV1#,GGV1#

PIONEER,CANADA SPEC&AUDIO-13CY AVN JBL 13SP (T4)

 1
86180-0E011

AGV1#,GGV1#

PIONEER,AUDIO-13CY AVN 6SP (T3)

 1
86180-0E021

AGV1#,GGV1#

PIONEER,AUDIO-13CY DA DLX 6SP (T2)

 1
86180-0E021

AGV1#,GGV1#

PIONEER,CANADA SPEC&AUDIO-13CY AVN 6SP (T3)

 1
86180-0T010

AGV1#,GGV1#

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH&EMV & NAVIGATION SYSTEM-WITH

 1
86180-0E011

AGV1#,GGV1#

PIONEER,AUDIO-13CY DA DLX 6SP (T2)

 1
86180-0E021

AGV1#,GGV1#

PIONEER,AUDIO-13CY AVN JBL 13SP (T4)

 1
86183D - COVER, AUDIO AMPLIFIER
86183-0T010

AGV10,GGV15

KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION)

 1
86183-0T010

AGV10,GGV15

KOREA SPEC&AUDIO-AVX JBL 13SPEAKER

 1
86183-0T010

AGV1#,GGV1#

AUDIO-DISP JBL 13SPEAKER VOICE

 1
86183-0T010

AGV1#,GGV1#

AUDIO-13CY AVN JBL 13SP (T4)

 1
86183-0T010

AGV1#,GGV1#

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH

 1
86183-0T010

AGV1#,GGV1#

AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION)

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-0E030

AGV1#,GGV1#

 1
86190-02020

AGV1#,GGV1#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0T010

AGV1#,GGV1#

CORE PACKAGE&AUDIO-6CD CHANGER,13SPEAKER,BLUETOOTH

 1
86280-0T020

AGV1#,GGV1#

AUDIO-AVN JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVN WITH(HD AUDIO & VOICE NAVIGATION)

 1
86280-0T020

AGV10,GGV15

KOREA SPEC&AUDIO-AVX JBL 13SPEAKER

 1
86280-0T030

AGV1#,GGV1#

AUDIO-13CY AVN JBL 13SP (T4)

 1
86280-0T020

AGV10,GGV15

KOREA SPEC&AUDIO-AVX JBL 13SPEAKER&EMV & NAVIGATION SYSTEM-AVX WITHOUT(VOICE NAVIGATION)

 1
86280-0T020

AGV1#,GGV1#

AUDIO-DISP JBL 13SPEAKER VOICE

 1
86842C - WIRE, NAVIGATION
86842-0E010

AGV1#,GGV1#

AUDIO-13CY AVN 6SP (T3)

 1
86842-0E010

AGV1#,GGV1#

AUDIO-13CY AVN JBL 13SP (T4)

 1
86842-0E010

AGV1#,GGV1#

CANADA SPEC&AUDIO-13CY AVN JBL 13SP (T4)

 1
86842-0E010

AGV1#,GGV1#

AUDIO-13CY DA DLX 6SP (T2)

 1
86842-0E010

AGV1#,GGV1#

CANADA SPEC&AUDIO-13CY AVN 6SP (T3)

 1
86842-0E010

AGV1#,GGV1#

CANADA SPEC&AUDIO-13CY DA DLX 6SP (T2)

 1
Common parts
55217-32010
90080-11545
90080-15080
90467-A0001C0
Linked diagrams
8603

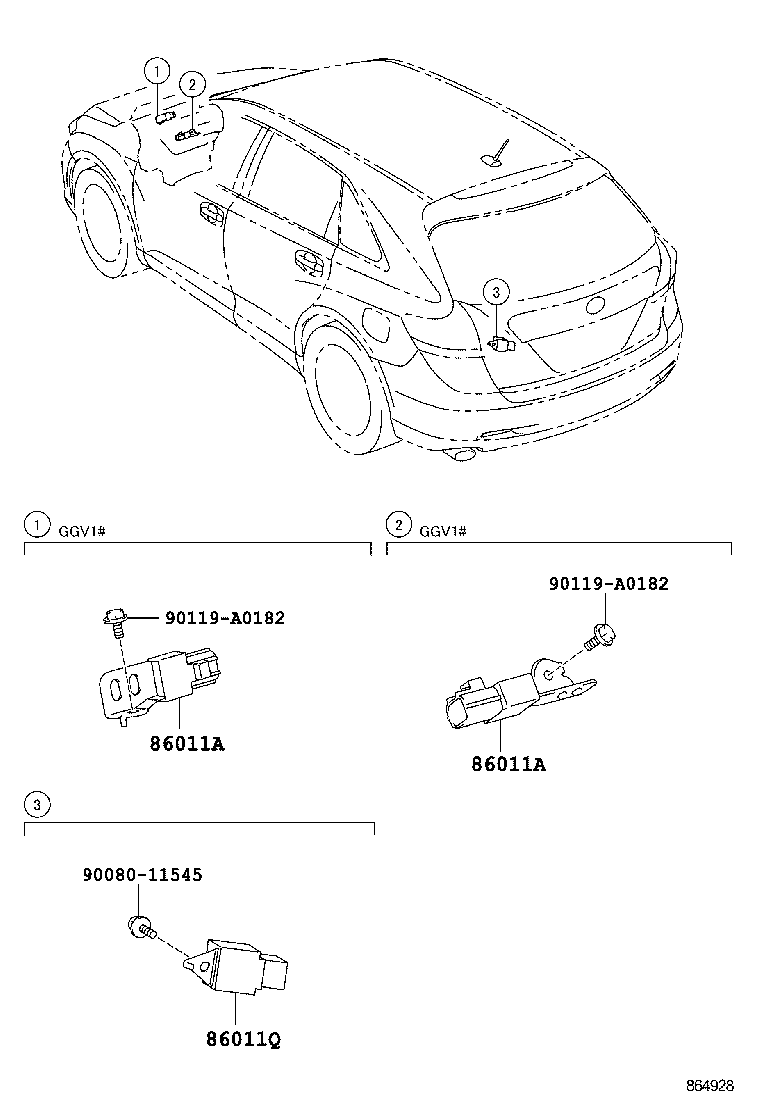

ILLUST NO. 2 OF 2(1205- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011Q 9008011545 90119A0182 90119A0182
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-A4002

AGV1#,GGV1#

 1
90980-A4002

AGV1#,GGV1#

 1
Common parts
90080-11545
90119-A0182
