AGV10L-AWTGKA (2012)

Toyota Venza

Production May 2012 - Dec 2016
Engine 1ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1205- )

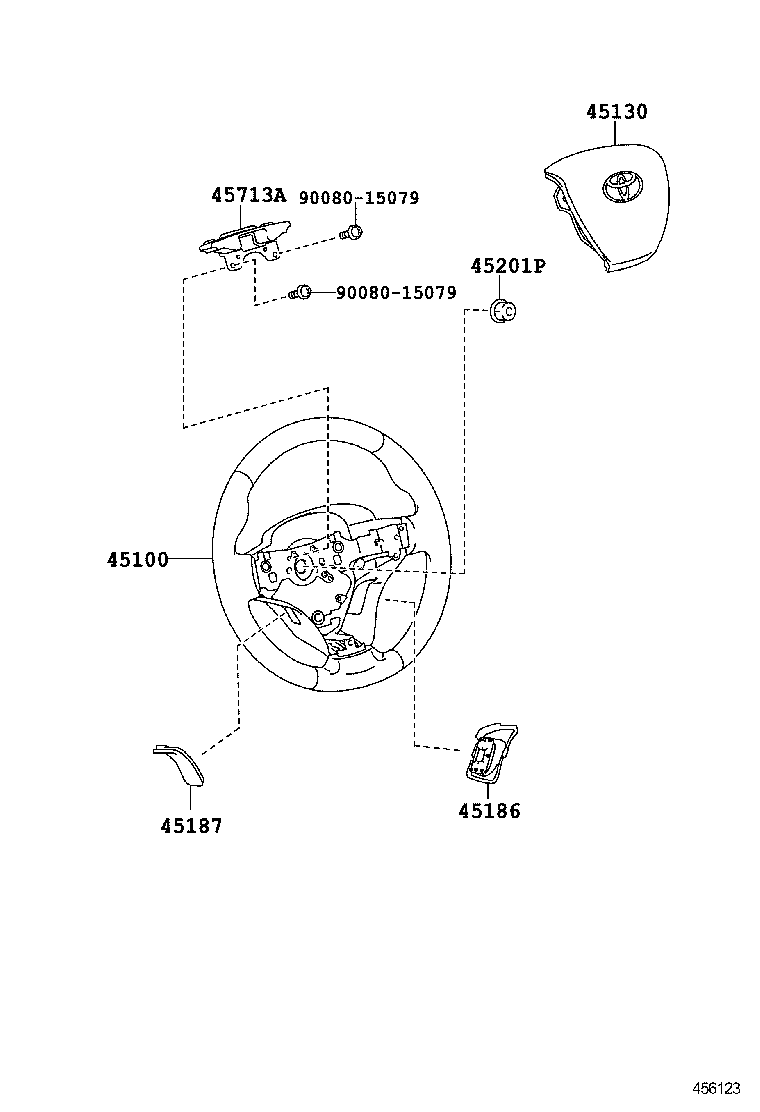

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45186 45187 45201P 45713A 9008015079 9008015079
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0T090C0

AGV1#,GGV1#

3-SPOKE,URETHANE,BLACK,TRIM0#,1#,2#

 1
45100-0T100C0

AGV1#,GGV1#

3-SPOKE,LEATHER,WITH(LEATHER & MEMORY),BLACK,TRIM0#,1#,2#

 1
45130 - BUTTON ASSY, HORN
45130-0T010C0

AGV1#,GGV1#

BLACK,TRIM0#,1#

 1
45130-06200C0

AGV1#,GGV1#

BLACK,TRIM0#,1#,2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-0T010C0

AGV1#,GGV1#

BLACK,TRIM0#,1#

 1
45186-06250C0

AGV1#,GGV1#

BLACK,TRIM0#,1#,2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-0T010C0

AGV1#,GGV1#

BLACK,TRIM0#,1#

 1
45187-06150C0

AGV1#,GGV1#

BLACK,TRIM0#,1#,2#

 1
45201P - NUT, STEERING WHEEL SET
90080-17234

AGV1#,GGV1#

 1
90080-17234

AGV1#,GGV1#

 1
45713A - DAMPER, STEERING SHAKE
45713-33210

AGV1#

 1
Common parts
90080-15079
