YR32LV-PRBEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

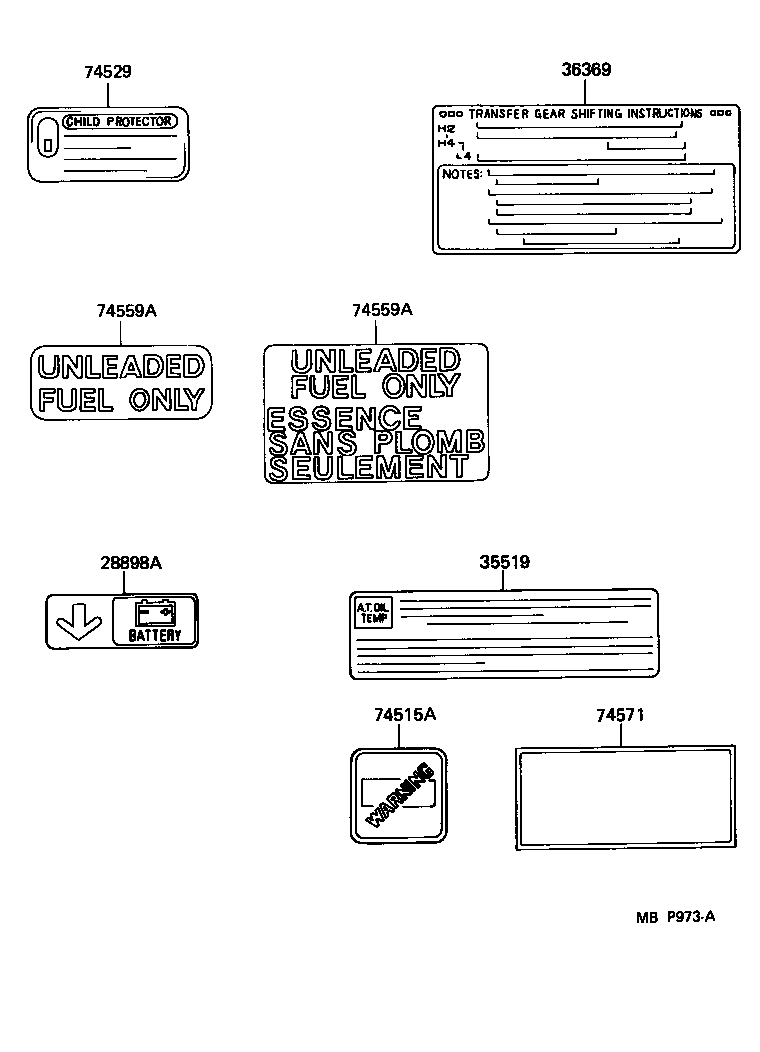

diagram 28898A 35519 36369 74515A 74529 74559A 74559A 74571
Part # Description Qty Price
28898A - PLATE, BATTERY
28898-73010

4YEC..YR2#,3#

 1
35519 - PLATE, AUTOMATIC TRANSMISSION CAUTION
35519-28020

YR3#..4FC..USA

 1
36369 - LABEL, TRANSFER INFORMATION
36369-28040

YR3#..4FC..USA

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

YR2#,3#

 1
74559A - PLATE, FUEL CAUTION
74559-14050

YR2#,3#..USA

 1
74559A - PLATE, FUEL CAUTION
74559-14050

YR2#,3#..USA

 1
74571 - PLATE, BRAKE FLUID CAUTION
74571-28020

YR2#,3#

 1
