YR32LV-MRBEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

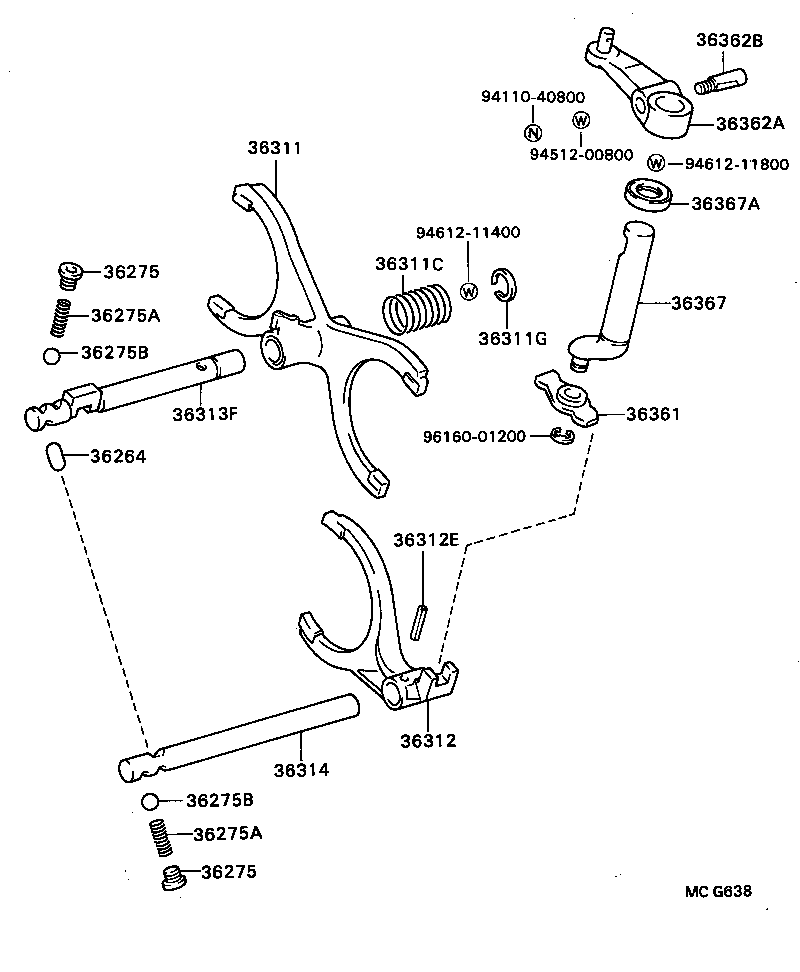

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10013 |
YR3# L=17.08,OD=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
YR3# |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
YR3# |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16094 |
YR3# L=38.4,HIGH&LOW SHIFT SIDE |
1 | ||
| 90501-12106 |
YR3# L=52.3,FR DRIVE SHIFT SIDE |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16094 |
YR3# L=38.4,HIGH&LOW SHIFT SIDE |
1 | ||
| 90501-12106 |
YR3# L=52.3,FR DRIVE SHIFT SIDE |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
YR3# OD=9.52,STEEL |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
YR3# OD=9.52,STEEL |
2 | ||
| 36311 - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36301-26010 |
YR3# |
1 | ||
| 36301-28010 |
YR3# |
1 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18071 |
YR3# |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13001 |
YR3# |
1 | ||
| 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-28010 |
YR3#..5F |
1 | ||
| 36312E - PIN, SLOTTED SPRING (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90254-05001 |
YR3# |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-28010 |
YR3#..5F |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-28020 |
YR3# |
1 | ||
| 36361 - LEVER, TRANSFER SHIFT, INNER | ||||
| 36361-28010 |
YR3#..5F |
1 | ||
| 36362A - LEVER, TRANSFER SHIFT, OUTER | ||||
| 36362-28011 |
YR3#..5F |
1 | ||
| 36362B - PIN, LEVER LOCK (FOR TRANSFER SHIFT LEVER OUTER) | ||||
| 33281-16020 |
YR3#..5F |
1 | ||
| 36367 - SHAFT, TRANSFER SHIFT INNER LEVER | ||||
| 36367-28010 |
YR3#..5F |
1 | ||
| 36367A - SEAL, OIL (FOR TRANSFER SHIFT INNER LEVER SHAFT) | ||||
| 90311-18006 |
YR3#..5F |
1 | ||
| Common parts | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-11400 | ||||
| 94612-11800 | ||||
| 96160-01200 | ||||

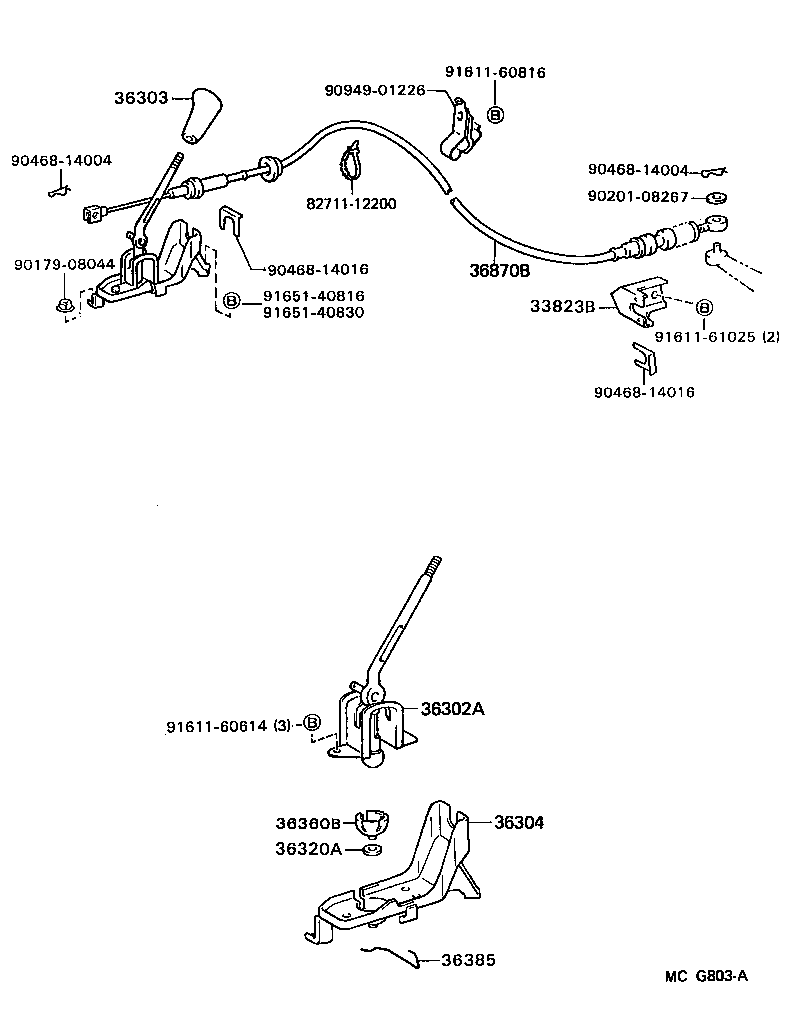

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33823B - BRACKET, TRANSFER CONTROL CABLE | ||||
| 33823-28100 |
YR3#..5F |
1 | ||
| 36302A - LEVER SUB-ASSY, TRANSFER SHIFT, NO.1 | ||||
| 33503-28110 |
YR3#..5F |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-2801003 |
YR3#..5F GRAY,TRIM1# |
1 | ||
| 36303-2801036 |
YR3#..5F BROWN,TRIM4# |
1 | ||
| 36303-2801004 |
YR3#..5F BLUE,TRIM8# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 33506-28080 |
YR3#..5F |
1 | ||
| 36320A - BUSH (FOR TRANSFER SHIFT LEVER) | ||||
| 90385-04001 |
YR3#..5F |
1 | ||
| 36360B - SEAT, TRANSFER SHIFT LEVER BALL | ||||
| 33556-28040 |
YR3#..5F |
1 | ||
| 36385 - SPRING, TRANSFER SHIFT LEVER TORSION | ||||
| 36385-28010 |
YR3#..5F |
1 | ||
| 36870B - CABLE ASSY, TRANSFER CONTROL | ||||
| 33820-28090 |
YR3#..5F |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90179-08044 | ||||
| 90201-08267 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01226 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91611-61025 | ||||
| 91651-40816 | ||||
| 91651-40830 | ||||
