YR32LV-MRBEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

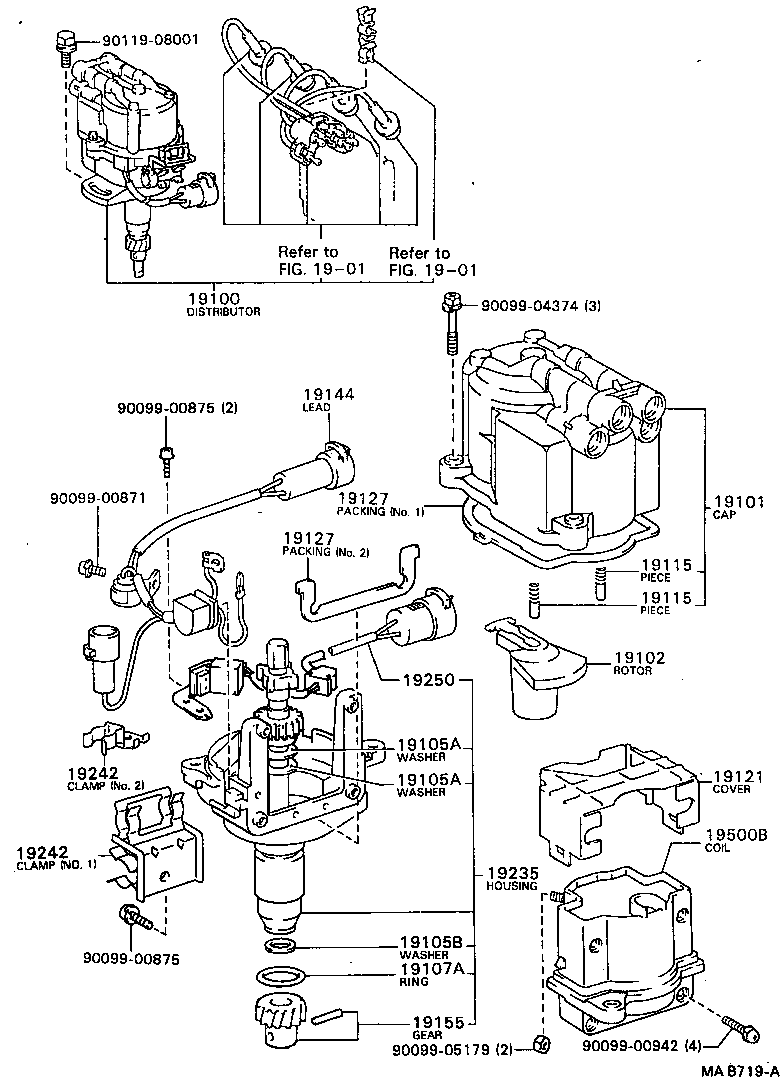

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19040-73010 |
4YEC..YR2#,3# |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-71010 |
4YEC..YR2#,3# |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-16060 |
4YEC..YR2#,3# |
1 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01487 |
4YEC..YR2#,3# T=0.4 |
2 | ||
| 90099-01489 |
4YEC..YR2#,3# T=0.5 |
2 | ||
| 90099-01486 |
4YEC..YR2#,3# T=0.3 |
2 | ||
| 90099-01488 |
4YEC..YR2#,3# T=0.6 |
2 | ||
| 19105A - WASHER(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01487 |
4YEC..YR2#,3# T=0.4 |
2 | ||
| 90099-01489 |
4YEC..YR2#,3# T=0.5 |
2 | ||
| 90099-01486 |
4YEC..YR2#,3# T=0.3 |
2 | ||
| 90099-01488 |
4YEC..YR2#,3# T=0.6 |
2 | ||
| 19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST) | ||||
| 90099-01429 |
4YEC..YR2#,3# |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 90099-14020 |
4YEC..YR2#,3# |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
4YEC..YR2#,3# |
2 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
4YEC..YR2#,3# |
2 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-63040 |
4YEC..YR2#,3# |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
4YEC..YR2#,3# NO.1 |
1 | ||
| 19127-63020 |
4YEC..YR2#,3# NO.2 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-63010 |
4YEC..YR2#,3# NO.1 |
1 | ||
| 19127-63020 |
4YEC..YR2#,3# NO.2 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-73020 |
4YEC..YR2#,3# |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-71010 |
4YEC..YR2#,3# |
1 | ||
| 19235 - HOUSING, DISTRIBUTOR | ||||
| 19235-73020 |
4YEC..YR2#,3# |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-73020 |
4YEC..YR2#,3# NO.1 |
1 | ||
| 19242-71060 |
4YEC..YR2#,3# NO.2 |
1 | ||
| 19242 - CLAMP, CORD | ||||
| 19242-73020 |
4YEC..YR2#,3# NO.1 |
1 | ||
| 19242-71060 |
4YEC..YR2#,3# NO.2 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19250-73010 |
4YEC..YR2#,3# |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02135 |
4YEC..YR2#,3# |
1 | ||
| Common parts | ||||
| 90099-00871 | ||||
| 90099-00875 | ||||
| 90099-00942 | ||||
| 90099-04374 | ||||
| 90099-05179 | ||||
| 90119-08001 | ||||
| Linked diagrams | ||||
| 1901 | ||||
