YR31LG-PQEK (1988)
Toyota Van

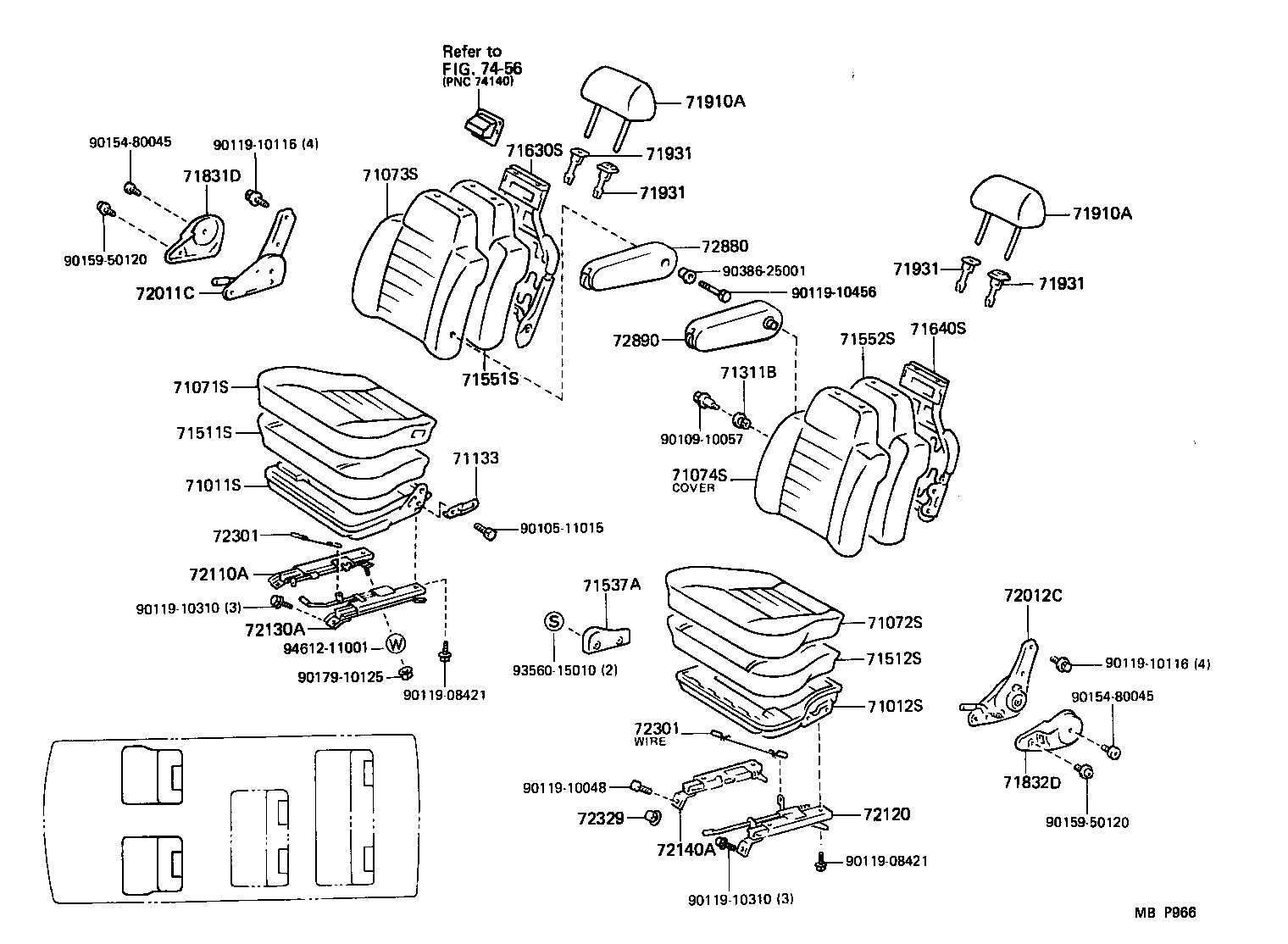

ILLUST NO. 1 OF 3(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-28020 |
YR22,31 |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-28030 |
YR22,31 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2802403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2802404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71071-2802406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71071-2804303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71071-2804306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71071-2804304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2802404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71072-2802403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2802406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71072-2804303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71072-2804306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71072-2804304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2803403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2803404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71073-2803406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71073-2806304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71073-2806303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71073-2806306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2803503 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71074-2803506 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71074-2806306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71074-2806304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71074-2803504 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71074-2806303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71133 - PLATE, FRONT SEAT CUSHION, NO.3 | ||||
| 71133-28010 |
YR22,31 |
1 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12018 |
YR2#,3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28011 |
YR22,31 |
1 | ||
| 71511-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-28011 |
YR2#,3# |
1 | ||
| 71512-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-2801003 |
YR2#,3# SHADOW GRAY,TRIM1# |
1 | ||
| 71537-2801016 |
YR2#,3# SABLE,TRIM4# |
1 | ||
| 71537-2801014 |
YR2#,3# BLUE,TRIM8# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-28030 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71551-28021 |
YR22,31..LE |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-28030 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71552-28021 |
YR22,31..LE |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-28060 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71630-28042 |
YR22,31..LE |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-28050 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71640-28042 |
YR22,31..LE |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-8700114 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 71831-8700103 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 71831-8700116 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71832-8700114 |
YR2#,3# BLUE,TRIM8# |
1 | ||
| 71832-8700103 |
YR2#,3# SHADOW GRAY,TRIM1# |
1 | ||
| 71832-8700116 |
YR2#,3# SABLE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2803303 |
YR22,31..LE SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2802303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2802306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
2 | ||
| 71910-2802304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
2 | ||
| 71910-2803304 |
YR22,31..LE BLUE,TRIM8# |
2 | ||
| 71910-2803306 |
YR22,31..LE SABLE,TRIM4# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2803303 |
YR22,31..LE SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2802303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
2 | ||
| 71910-2802306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
2 | ||
| 71910-2802304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
2 | ||
| 71910-2803304 |
YR22,31..LE BLUE,TRIM8# |
2 | ||
| 71910-2803306 |
YR22,31..LE SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8# |
2 | ||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1# |
2 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 72010-2801116 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 72010-2801104 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 72010-2801103 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 72020-2801103 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 72020-2801116 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 72020-2801104 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-28010 |
YR22,31 |
1 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-28020 |
YR2#,3# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-28010 |
YR22,31 |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-28020 |
YR2#,3# |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-28010 |
YR22,31 LH |
1 | ||
| 72301-28020 |
YR22,31 RH |
1 | ||
| 72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING | ||||
| 72301-28010 |
YR22,31 LH |
1 | ||
| 72301-28020 |
YR22,31 RH |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72880-2802203 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72880-2801303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 72880-2802204 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72880-2802206 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 72880-2801306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 72880-2801304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-95D0703 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72890-95D0704 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72890-2803306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 72890-2803303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 72890-2803304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 72890-95D0706 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-11015 | ||||
| 90109-10057 | ||||
| 90119-08421 | ||||
| 90119-10048 | ||||
| 90119-10116 | ||||
| 90119-10310 | ||||
| 90119-10456 | ||||
| 90154-80045 | ||||
| 90159-50120 | ||||
| 90179-10125 | ||||
| 90386-25001 | ||||
| 93560-15010 | ||||
| 94612-11001 | ||||
| Linked diagrams | ||||
| 7456 | ||||

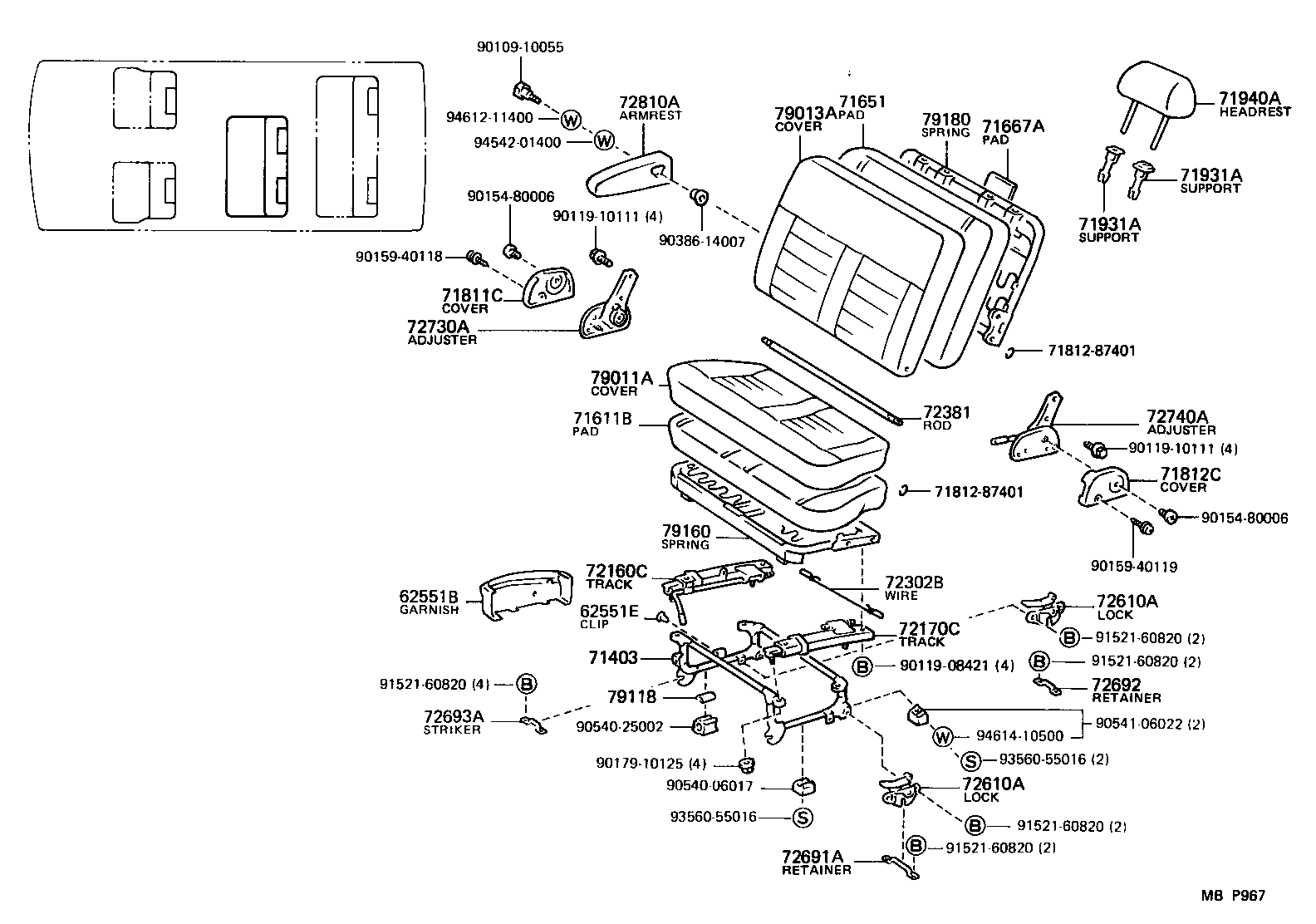

ILLUST NO. 2 OF 3(8808- )YR22,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62551B - GARNISH, REAR SEAT SIDE | ||||
| 62551-2802014 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 62551-2802003 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 62551-2802016 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 62551E - CLIP(FOR REAR SEAT SIDE GARNISH) | ||||
| 90467-1001743 |
YR22,31 SHADOW GRAY,TRIM1# |
3 | ||
| 90467-1001724 |
YR22,31 BLUE,TRIM8# |
3 | ||
| 90467-1001756 |
YR22,31 BROWN,TRIM4# |
3 | ||
| 71403 - LEG SUB-ASSY, REAR NO.1 SEAT | ||||
| 71403-28011 |
YR22,31 |
1 | ||
| 71611B - PAD, REAR NO.1 SEAT CUSHION | ||||
| 71611-28020 |
YR22,31 |
1 | ||
| 71611-28030 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71651-28030 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 71651-28020 |
YR22,31 |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-87001 |
YR22,31 |
3 | ||
| 71667-87001 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-2801003 |
YR22,31 GRAY,TRIM1# |
1 | ||
| 71811-2801026 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 71833-2802004 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71833-2802016 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71833-2802003 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71811-2801014 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-2801003 |
YR22,31 GRAY,TRIM1# |
1 | ||
| 71812-2801026 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 71812-2801014 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 71834-2801003 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71834-2801004 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71834-2801016 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1#,W(LOCK) |
2 | ||
| 71931-1001044 |
YR22,31 W/O(LOCK),DEEP BLUE,TRIM8#,W/O LOCK |
2 | ||
| 71930-1006044 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W(LOCK) |
3 | ||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8#,W(LOCK) |
2 | ||
| 71931-1001050 |
YR22,31 W/O(LOCK),BROWN,TRIM4#,W/O LOCK |
2 | ||
| 71930-1006050 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W(LOCK) |
3 | ||
| 71930-1006033 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W(LOCK) |
3 | ||
| 71931-1001033 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W/O LOCK |
3 | ||
| 71931-1001050 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W/O LOCK |
3 | ||
| 71931-1001044 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W/O LOCK |
3 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4#,W(LOCK) |
2 | ||
| 71931-1001033 |
YR22,31 W/O(LOCK),SHADOW GRAY,TRIM1#,W/O LOCK |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1#,W(LOCK) |
2 | ||
| 71931-1001044 |
YR22,31 W/O(LOCK),DEEP BLUE,TRIM8#,W/O LOCK |
2 | ||
| 71930-1006044 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W(LOCK) |
3 | ||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8#,W(LOCK) |
2 | ||
| 71931-1001050 |
YR22,31 W/O(LOCK),BROWN,TRIM4#,W/O LOCK |
2 | ||
| 71930-1006050 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W(LOCK) |
3 | ||
| 71930-1006033 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W(LOCK) |
3 | ||
| 71931-1001033 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W/O LOCK |
3 | ||
| 71931-1001050 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W/O LOCK |
3 | ||
| 71931-1001044 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W/O LOCK |
3 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4#,W(LOCK) |
2 | ||
| 71931-1001033 |
YR22,31 W/O(LOCK),SHADOW GRAY,TRIM1#,W/O LOCK |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-2807103 |
YR22,31..LE SHADOW GRAY,TRIM1# |
2 | ||
| 71940-2808104 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71940-2807104 |
YR22,31..LE BLUE,TRIM8# |
2 | ||
| 71940-2808103 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71940-2807106 |
YR22,31..LE SABLE,TRIM4# |
2 | ||
| 71940-2808106 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 72160C - TRACK ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 72160-87005 |
YR22,31 |
1 | ||
| 72170C - TRACK ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72170-87004 |
YR22,31 |
1 | ||
| 72302B - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING | ||||
| 72302-87001 |
YR22,31 |
1 | ||
| 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 | ||||
| 72381-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 72381-87001 |
YR22,31 |
1 | ||
| 72610A - STRIKER ASSY, REAR SEAT BACK LOCK | ||||
| 72610-28030 |
YR22,31 |
2 | ||
| 72610A - STRIKER ASSY, REAR SEAT BACK LOCK | ||||
| 72610-28030 |
YR22,31 |
2 | ||
| 72691A - STRIKER, REAR SEAT CUSHION LOCK, NO.1 | ||||
| 72691-28020 |
YR22,31 NO.1 SEAT |
1 | ||
| 72691-28020 |
YR22,31 NO.2 SEAT |
2 | ||
| 72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2 | ||||
| 72692-28020 |
YR22,31 |
1 | ||
| 72693A - STRIKER, REAR SEAT CUSHION LOCK, NO.3 | ||||
| 72693-28020 |
YR22,31 |
2 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-2804016 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 72730-2804003 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 72730-2805004 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 72730-2805016 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 72730-2805003 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 72730-2804014 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-2806003 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72740-28050 |
YR22,31 |
1 | ||
| 72740-2806016 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 72740-2806004 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-2802403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72810-2804306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
2 | ||
| 72810-2802406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 72810-2804303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
2 | ||
| 72810-2802404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72810-2804304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 71075-2804403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2804404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71075-2806303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2806306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71075-2806304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71075-2804406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 71077-2804403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2806304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71077-2806306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71077-2804404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71077-2804406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71077-2806303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 79118 - BRACKET, NO.1 SEAT LEG | ||||
| 79118-28010 |
YR22,31 |
1 | ||
| 79118-28010 |
YR22,31 |
2 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-28021 |
YR22,31 |
1 | ||
| 79160-28040 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 79180-28010 |
YR22,31 |
1 | ||
| Common parts | ||||
| 71812-87401 | ||||
| 90109-10055 | ||||
| 90119-08421 | ||||
| 90119-10111 | ||||
| 90154-80006 | ||||
| 90159-40118 | ||||
| 90159-40119 | ||||
| 90179-10125 | ||||
| 90386-14007 | ||||
| 90540-06017 | ||||
| 90540-25002 | ||||
| 90541-06022 | ||||
| 91521-60820 | ||||
| 93560-55016 | ||||
| 94542-01400 | ||||
| 94612-11400 | ||||
| 94614-10500 | ||||

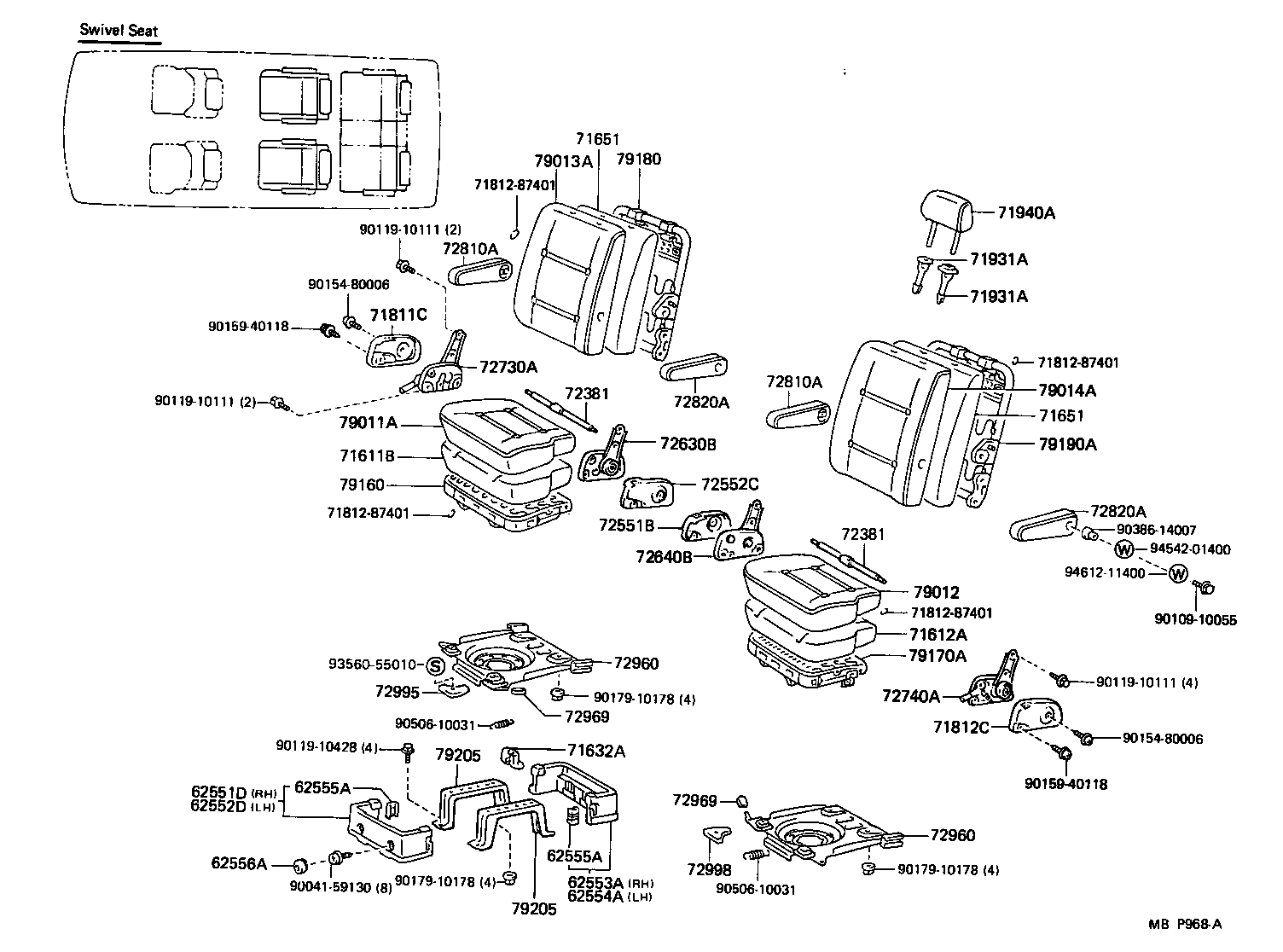

ILLUST NO. 2 OF 3(8808- )LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62551D - GARNISH, REAR SEAT SIDE, RH | ||||
| 62551-8700414 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 62551-8700403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 62551-8700416 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 62552D - GARNISH, REAR SEAT SIDE, LH | ||||
| 62552-8700414 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 62552-8700416 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 62552-8700403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 62553A - GARNISH, REAR SEAT SIDE, NO.2 RH | ||||
| 62553-8700303 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 62553-8700316 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 62553-8700314 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 62554A - GARNISH, REAR SEAT SIDE, NO.2 LH | ||||
| 62554-8700203 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 62554-8700214 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 62554-8700216 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 62555A - KNOB, REAR SEAT SIDE GARNISH | ||||
| 62555-87002 |
YR22,31..LE LH |
2 | ||
| 62555-87001 |
YR22,31..LE RH |
2 | ||
| 62555A - KNOB, REAR SEAT SIDE GARNISH | ||||
| 62555-87002 |
YR22,31..LE LH |
2 | ||
| 62555-87001 |
YR22,31..LE RH |
2 | ||
| 62556A - CAP, REAR SEAT SIDE GARNISH | ||||
| 62556-8700214 |
YR22,31..LE BLUE,TRIM8# |
8 | ||
| 62556-8700203 |
YR22,31..LE SHADOW GRAY,TRIM1# |
8 | ||
| 62556-8700216 |
YR22,31..LE SABLE,TRIM4# |
8 | ||
| 71611B - PAD, REAR NO.1 SEAT CUSHION | ||||
| 71611-28020 |
YR22,31 |
1 | ||
| 71611-28030 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-28020 |
YR22,31..LE |
1 | ||
| 71632A - COVER, REAR SEAT, OUTER | ||||
| 71632-8700303 |
YR22,31..LE SHADOW GRAY,TRIM1# |
4 | ||
| 71632-8700316 |
YR22,31..LE SABLE,TRIM4# |
4 | ||
| 71632-8700314 |
YR22,31..LE BLUE,TRIM8# |
4 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71651-28030 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 71651-28020 |
YR22,31 |
1 | ||
| 71651 - PAD, REAR NO.1 SEAT BACK | ||||
| 71651-28030 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 71651-28020 |
YR22,31 |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-2801003 |
YR22,31 GRAY,TRIM1# |
1 | ||
| 71811-2801026 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 71833-2802004 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71833-2802016 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71833-2802003 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71811-2801014 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-2801003 |
YR22,31 GRAY,TRIM1# |
1 | ||
| 71812-2801026 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 71812-2801014 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 71834-2801003 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71834-2801004 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71834-2801016 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1#,W(LOCK) |
2 | ||
| 71931-1001044 |
YR22,31 W/O(LOCK),DEEP BLUE,TRIM8#,W/O LOCK |
2 | ||
| 71930-1006044 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W(LOCK) |
3 | ||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8#,W(LOCK) |
2 | ||
| 71931-1001050 |
YR22,31 W/O(LOCK),BROWN,TRIM4#,W/O LOCK |
2 | ||
| 71930-1006050 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W(LOCK) |
3 | ||
| 71930-1006033 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W(LOCK) |
3 | ||
| 71931-1001033 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W/O LOCK |
3 | ||
| 71931-1001050 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W/O LOCK |
3 | ||
| 71931-1001044 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W/O LOCK |
3 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4#,W(LOCK) |
2 | ||
| 71931-1001033 |
YR22,31 W/O(LOCK),SHADOW GRAY,TRIM1#,W/O LOCK |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1#,W(LOCK) |
2 | ||
| 71931-1001044 |
YR22,31 W/O(LOCK),DEEP BLUE,TRIM8#,W/O LOCK |
2 | ||
| 71930-1006044 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W(LOCK) |
3 | ||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8#,W(LOCK) |
2 | ||
| 71931-1001050 |
YR22,31 W/O(LOCK),BROWN,TRIM4#,W/O LOCK |
2 | ||
| 71930-1006050 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W(LOCK) |
3 | ||
| 71930-1006033 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W(LOCK) |
3 | ||
| 71931-1001033 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W/O LOCK |
3 | ||
| 71931-1001050 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W/O LOCK |
3 | ||
| 71931-1001044 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W/O LOCK |
3 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4#,W(LOCK) |
2 | ||
| 71931-1001033 |
YR22,31 W/O(LOCK),SHADOW GRAY,TRIM1#,W/O LOCK |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-2807103 |
YR22,31..LE SHADOW GRAY,TRIM1# |
2 | ||
| 71940-2808104 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71940-2807104 |
YR22,31..LE BLUE,TRIM8# |
2 | ||
| 71940-2808103 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71940-2807106 |
YR22,31..LE SABLE,TRIM4# |
2 | ||
| 71940-2808106 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 | ||||
| 72381-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 72381-87001 |
YR22,31 |
1 | ||
| 72381 - ROD, RECLINING ADJUSTER EQUALIZING, NO.1 | ||||
| 72381-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 72381-87001 |
YR22,31 |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 71811-2803016 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71811-2803004 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71811-2803003 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72552C - COVER, RECLINING HINGE, LH | ||||
| 71812-2803016 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71812-2803004 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71812-2803003 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72630B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 72630-28030 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 72640B - ADJUSTER ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 72640-28030 |
YR22,31..LE |
1 | ||
| 72730A - ADJUSTER ASSY, REAR SEAT RECLINING, RH | ||||
| 72730-2804016 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 72730-2804003 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 72730-2805004 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 72730-2805016 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 72730-2805003 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 72730-2804014 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 72740A - ADJUSTER ASSY, REAR SEAT RECLINING, LH | ||||
| 72740-2806003 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72740-28050 |
YR22,31 |
1 | ||
| 72740-2806016 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 72740-2806004 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-2802403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72810-2804306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
2 | ||
| 72810-2802406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 72810-2804303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
2 | ||
| 72810-2802404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72810-2804304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
2 | ||
| 72810A - ARMREST ASSY, SEAT, RH | ||||
| 72810-2802403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72810-2804306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
2 | ||
| 72810-2802406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 72810-2804303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
2 | ||
| 72810-2802404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72810-2804304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
2 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-2802303 |
YR22,31..LE SHADOW GRAY,TRIM1# |
2 | ||
| 72820-2802304 |
YR22,31..LE BLUE,TRIM8# |
2 | ||
| 72820-2802306 |
YR22,31..LE SABLE,TRIM4# |
2 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-2802303 |
YR22,31..LE SHADOW GRAY,TRIM1# |
2 | ||
| 72820-2802304 |
YR22,31..LE BLUE,TRIM8# |
2 | ||
| 72820-2802306 |
YR22,31..LE SABLE,TRIM4# |
2 | ||
| 72960 - TABLE ASSY, REAR SEAT TURN | ||||
| 72960-28010 |
YR22,31..LE RH |
1 | ||
| 72970-28010 |
YR22,31..LE LH |
1 | ||
| 72960 - TABLE ASSY, REAR SEAT TURN | ||||
| 72960-28010 |
YR22,31..LE RH |
1 | ||
| 72970-28010 |
YR22,31..LE LH |
1 | ||
| 72969 - KNOB, REAR SEAT TURN LOCK | ||||
| 72969-28010 |
YR22,31..LE |
2 | ||
| 72969 - KNOB, REAR SEAT TURN LOCK | ||||
| 72969-28010 |
YR22,31..LE |
2 | ||
| 72995 - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-2802003 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72995-2802016 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 72995-2802004 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72998 - COVER, REAR SEAT CUSHION, LH | ||||
| 72998-2801003 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 72998-2801004 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 72998-2801016 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 71075-2804403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2804404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71075-2806303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2806306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71075-2806304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71075-2804406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71075-2806303 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71075-2806304 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71075-2806306 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 71077-2804403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71077-2806304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71077-2806306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71077-2804404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71077-2804406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71077-2806303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 79014A - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71078-2804304 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71078-2804303 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71078-2804306 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-28021 |
YR22,31 |
1 | ||
| 79160-28040 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 79170A - SPRING ASSY, NO.1 SEAT CUSUION, LH | ||||
| 79170-28030 |
YR22,31..LE |
1 | ||
| 79180 - SPRING ASSY, NO.1 SEAT BACK | ||||
| 79180-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 79180-28010 |
YR22,31 |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79180-28020 |
YR22,31..LE |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 71333-87004 |
YR22,31..LE INNER,W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 71334-87002 |
YR22,31..LE OUTER,W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 71333-87004 |
YR22,31..LE INNER,W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 71334-87002 |
YR22,31..LE OUTER,W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| Common parts | ||||
| 71812-87401 | ||||
| 90041-59130 | ||||
| 90109-10055 | ||||
| 90119-10111 | ||||
| 90119-10428 | ||||
| 90154-80006 | ||||
| 90159-40118 | ||||
| 90179-10178 | ||||
| 90386-14007 | ||||
| 90506-10031 | ||||
| 93560-55010 | ||||
| 94542-01400 | ||||
| 94612-11400 | ||||

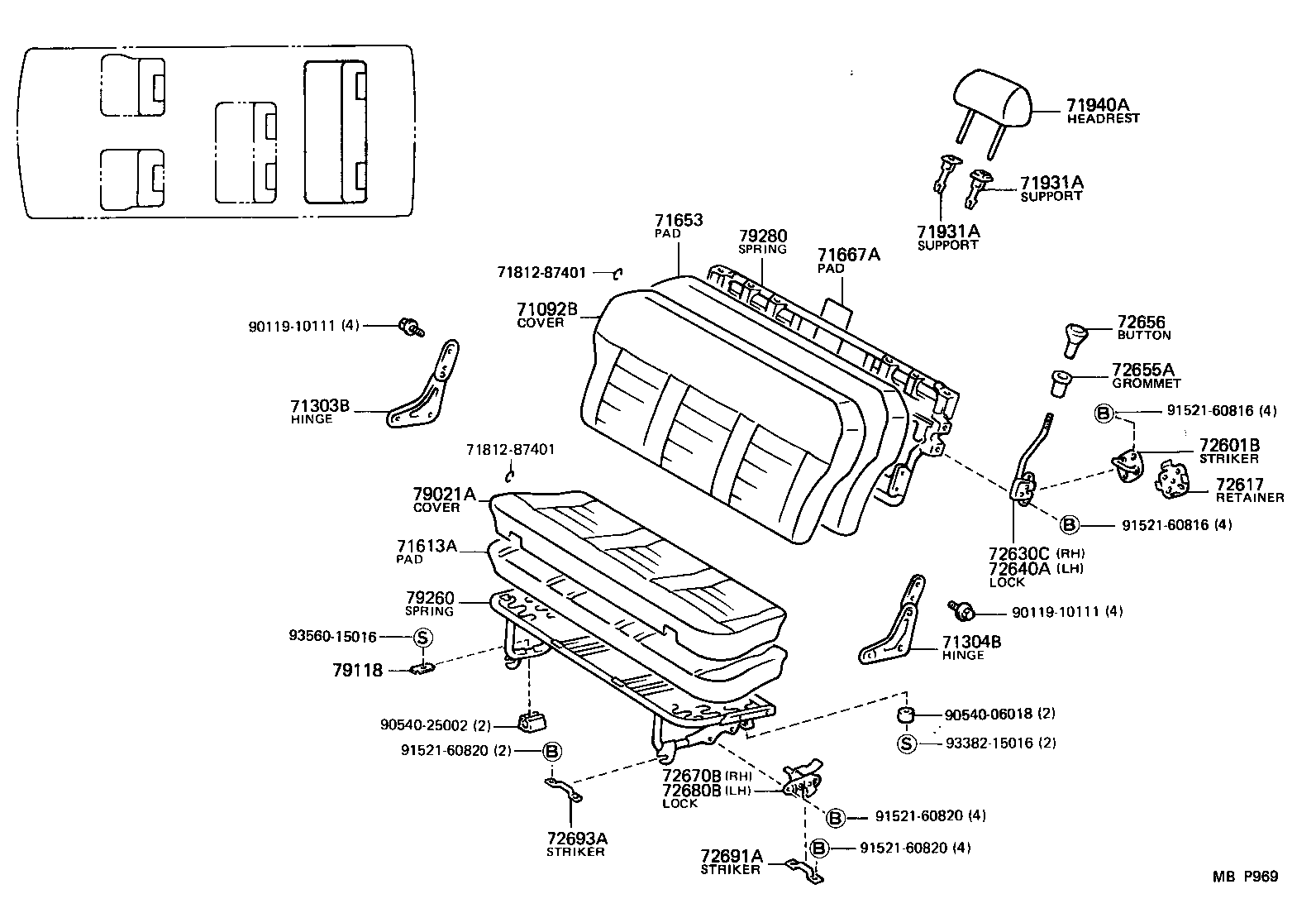

ILLUST NO. 3 OF 3(8808- )YR22,31
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71092B - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 71092-2803304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71092-2802406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 71092-2803306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 71092-2802404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 71092-2802403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71092-2803303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71303B - HINGE SUB-ASSY, REAR NO.2 SEAT, RH | ||||
| 71303-2801103 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 71303-2801116 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 71303-2801114 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 71304B - HINGE SUB-ASSY, REAR NO.2 SEAT, LH | ||||
| 71304-2801103 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 71304-2801116 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 71304-2801114 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 71613A - PAD, REAR NO.2 SEAT CUSHION | ||||
| 71613-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71613-28010 |
YR22,31 |
1 | ||
| 71653 - PAD, REAR NO.2 SEAT BACK | ||||
| 71653-28020 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
1 | ||
| 71653-28010 |
YR22,31 |
1 | ||
| 71667A - PAD, REAR SEAT BACK, CENTER A | ||||
| 71667-87001 |
YR22,31 |
3 | ||
| 71667-87001 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE) |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1#,W(LOCK) |
2 | ||
| 71931-1001044 |
YR22,31 W/O(LOCK),DEEP BLUE,TRIM8#,W/O LOCK |
2 | ||
| 71930-1006044 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W(LOCK) |
3 | ||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8#,W(LOCK) |
2 | ||
| 71931-1001050 |
YR22,31 W/O(LOCK),BROWN,TRIM4#,W/O LOCK |
2 | ||
| 71930-1006050 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W(LOCK) |
3 | ||
| 71930-1006033 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W(LOCK) |
3 | ||
| 71931-1001033 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W/O LOCK |
3 | ||
| 71931-1001050 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W/O LOCK |
3 | ||
| 71931-1001044 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W/O LOCK |
3 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4#,W(LOCK) |
2 | ||
| 71931-1001033 |
YR22,31 W/O(LOCK),SHADOW GRAY,TRIM1#,W/O LOCK |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006033 |
YR22,31 W(LOCK),SHADOW GRAY,TRIM1#,W(LOCK) |
2 | ||
| 71931-1001044 |
YR22,31 W/O(LOCK),DEEP BLUE,TRIM8#,W/O LOCK |
2 | ||
| 71930-1006044 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W(LOCK) |
3 | ||
| 71930-1006044 |
YR22,31 W(LOCK),DEEP BLUE,TRIM8#,W(LOCK) |
2 | ||
| 71931-1001050 |
YR22,31 W/O(LOCK),BROWN,TRIM4#,W/O LOCK |
2 | ||
| 71930-1006050 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W(LOCK) |
3 | ||
| 71930-1006033 |
YR22,31..LE W(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W(LOCK) |
3 | ||
| 71931-1001033 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#,W/O LOCK |
3 | ||
| 71931-1001050 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),BROWN,TRIM4#,W/O LOCK |
3 | ||
| 71931-1001044 |
YR22,31..LE W/O(LOCK),W(CAPTAIN SEAT = BELT DOWN TYPE),DEEP BLUE,TRIM8#,W/O LOCK |
3 | ||
| 71930-1006050 |
YR22,31 W(LOCK),BROWN,TRIM4#,W(LOCK) |
2 | ||
| 71931-1001033 |
YR22,31 W/O(LOCK),SHADOW GRAY,TRIM1#,W/O LOCK |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-2807103 |
YR22,31..LE SHADOW GRAY,TRIM1# |
2 | ||
| 71940-2808104 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71940-2807104 |
YR22,31..LE BLUE,TRIM8# |
2 | ||
| 71940-2808103 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 71940-2807106 |
YR22,31..LE SABLE,TRIM4# |
2 | ||
| 71940-2808106 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 72601B - STRIKER SUB-ASSY, REAR SEAT BACK LOCK | ||||
| 72601-16050 |
YR22,31 |
2 | ||
| 72617 - RETAINER, SEAT BACK LOCK STRIKER COVER | ||||
| 72617-28010 |
YR22,31 |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-28020 |
YR22,31 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-28020 |
YR22,31 |
1 | ||
| 72655A - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002023 |
YR22,31 GRAY,TRIM1# |
2 | ||
| 72655-2002020 |
YR22,31 BLUE,TRIM8# |
2 | ||
| 72655-2002057 |
YR22,31 BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001030 |
YR22,31 BLUE,TRIM8# |
2 | ||
| 72656-2001023 |
YR22,31 GRAY,TRIM1# |
2 | ||
| 72656-2001058 |
YR22,31 SABLE,TRIM4# |
2 | ||
| 72670B - LOCK ASSY, REAR SEAT CUSHION, RH | ||||
| 72670-28040 |
YR22,31 |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72680-28040 |
YR22,31 |
1 | ||
| 72691A - STRIKER, REAR SEAT CUSHION LOCK, NO.1 | ||||
| 72691-28020 |
YR22,31 NO.1 SEAT |
1 | ||
| 72691-28020 |
YR22,31 NO.2 SEAT |
2 | ||
| 72693A - STRIKER, REAR SEAT CUSHION LOCK, NO.3 | ||||
| 72693-28020 |
YR22,31 |
2 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 71091-2802406 |
YR22,31..LE SABLE,TRIM4# |
1 | ||
| 79021-2802304 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8# |
1 | ||
| 71091-2802403 |
YR22,31..LE SHADOW GRAY,TRIM1# |
1 | ||
| 71091-2802404 |
YR22,31..LE BLUE,TRIM8# |
1 | ||
| 79021-2802303 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1# |
1 | ||
| 79021-2802306 |
YR22,31..LE W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4# |
1 | ||
| 79118 - BRACKET, NO.1 SEAT LEG | ||||
| 79118-28010 |
YR22,31 |
1 | ||
| 79118-28010 |
YR22,31 |
2 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 79260-2801216 |
YR22,31 SABLE,TRIM4# |
1 | ||
| 79260-2801204 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 79280 - SPRING ASSY, NO.2 SEAT BACK | ||||
| 79280-28010 |
YR22,31 |
1 | ||
| Common parts | ||||
| 71812-87401 | ||||
| 90119-10111 | ||||
| 90540-06018 | ||||
| 90540-25002 | ||||
| 91521-60816 | ||||
| 91521-60820 | ||||
| 93382-15016 | ||||
| 93560-15016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
