YR31LG-PQEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

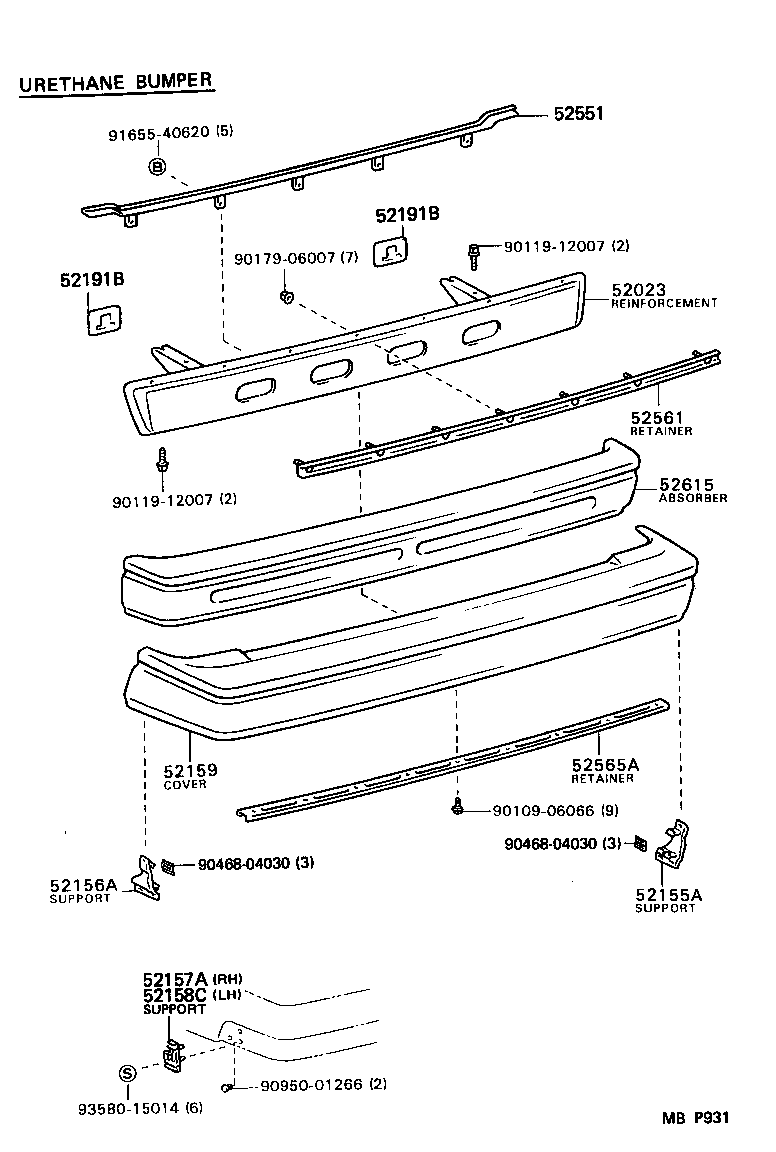

Click highlighted areas on diagram

diagram 52023 52155A 52156A 52157A 52158C 52159 52191B 52191B 52551 52561 52565A 52615 9010906066 9011912007 9011912007 9017906007 9046804030 9046804030 9095001266 9165540620 9358015014
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-28030

YR22,31

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-28020

YR22,31

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-28010

YR22,31

 1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-28030

YR22,31

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-28020

YR22,31

 1
52159 - COVER, REAR BUMPER
52159-28900

YR22,31..LE

 1
52191B - GROMMET, REAR BUMPER STAY
52191-28010

YR22,31

 2
52191B - GROMMET, REAR BUMPER STAY
52191-28010

YR22,31

 2
52551 - FILLER, REAR BUMPER
52551-28010

YR22,31

 1
52561 - RETAINER, REAR BUMPER, UPPER CENTER
52305-28010

YR22,31

 1
52565A - RETAINER, REAR BUMPER, LOWER
52565-28010

YR22,31

 1
52615 - ABSORBER, REAR BUMPER ENERGY
52615-28010

YR22,31

 1
Common parts
90109-06066
90119-12007
90179-06007
90468-04030
90950-01266
91655-40620
93580-15014
