YR31LG-PQEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )4FC

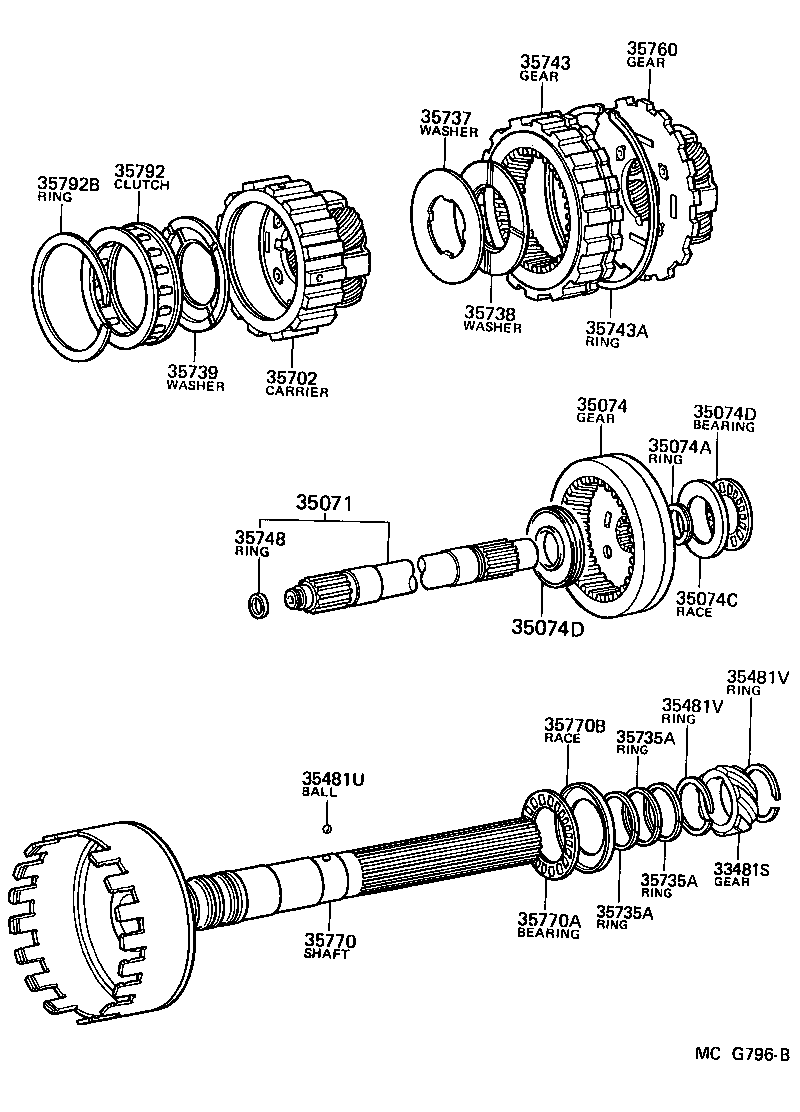

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE | ||||
| 35708-30041 |
YR2#,3#..4FC |
1 | ||
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-30030 |
YR2#,3#..4FC |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
YR2#,3#..4FC |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
YR2#,3#..4FC |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-28014 |
YR2#,3#..4FC FR |
1 | ||
| 90374-21001 |
YR2#,3#..4FC RR |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-28014 |
YR2#,3#..4FC FR |
1 | ||
| 90374-21001 |
YR2#,3#..4FC RR |
1 | ||
| 35702 - CARRIER SUB-ASSY, PLANETARY W/LOCK GEAR | ||||
| 35704-30040 |
YR2#,3#..4FC |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
YR2#,3#..4FC |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
YR2#,3#..4FC |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
YR2#,3#..4FC |
3 | ||
| 35737 - WASHER, PLANETARY CARRIER THRUST | ||||
| 35737-22010 |
YR2#,3#..4FC |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-30030 |
YR2#,3#..4FC |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-30020 |
YR2#,3#..4FC |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-30010 |
YR2#,3#..4FC |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
YR2#,3#..4FC |
1 | ||
| 35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL | ||||
| 35748-30010 |
YR2#,3#..4FC |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30040 |
YR2#,3#..4FC |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-28010 |
YR3#..4FC |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
YR2#,3#..4FC |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
YR2#,3#..4FC |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-30030 |
YR2#,3#..4FC |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
YR2#,3#..4FC |
1 | ||
