YR31LG-PQEK (1986)

Toyota Van

Production Aug 1986 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )YR3#

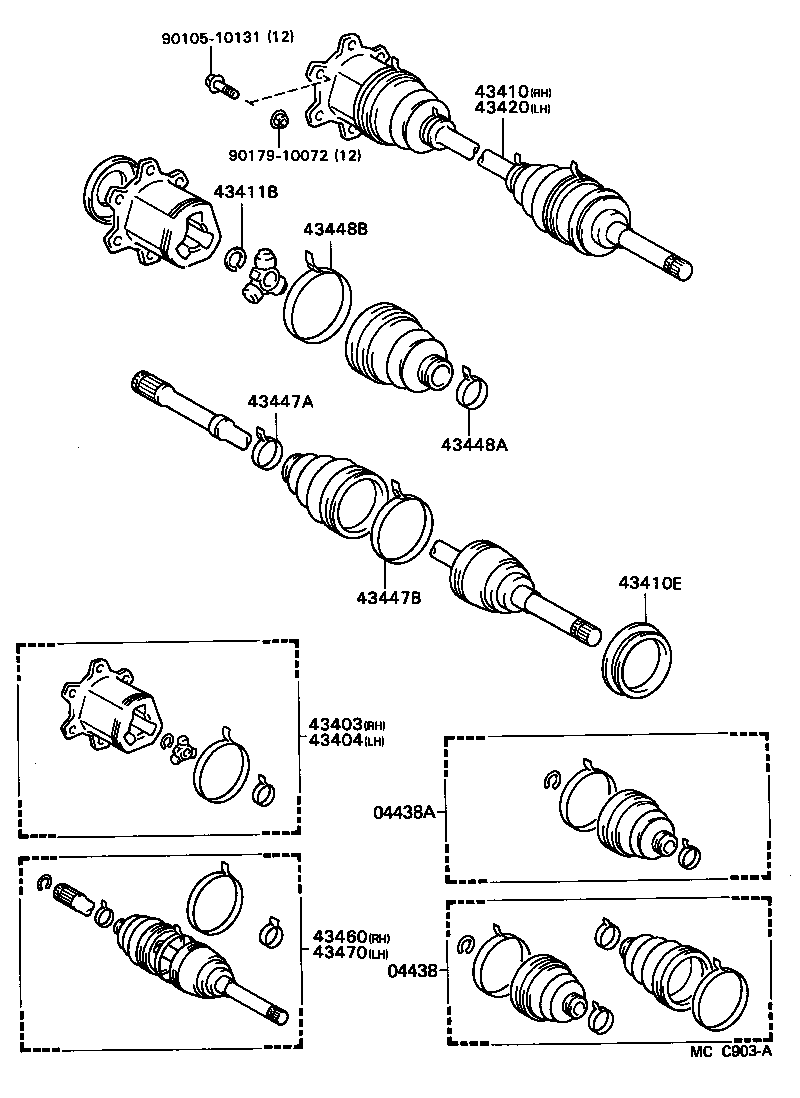

Click highlighted areas on diagram

diagram 04438 04438A 43403 43404 43410 43410E 43411B 43420 43447A 43447B 43448A 43448B 43460 43470 9010510131 9017910072
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04438-28021

YR3#

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-28011

YR3#

 2
43403 - JOINT SET, FRONT AXLE INBOARD, RH
43403-29015

YR3#

 1
43404 - JOINT SET, FRONT AXLE INBOARD, LH
43403-29015

YR3#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43430-28010

YR3#

 1
43410E - COVER, DUST (FOR FRONT DRIVE SHAFT)
90304-76001

YR3#

 2
90304-76002

YR3#

 2
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-26028

YR3#

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43430-28010

YR3#

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01221

YR3#

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
90949-01135

YR3#

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-14010

YR3#

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-30010

YR3#

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29055

YR3#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43460-29055

YR3#

 1
Common parts
90105-10131
90179-10072
