YR31LG-PQEK (1986)

Toyota Van

Production Aug 1986 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8608- )YR3#

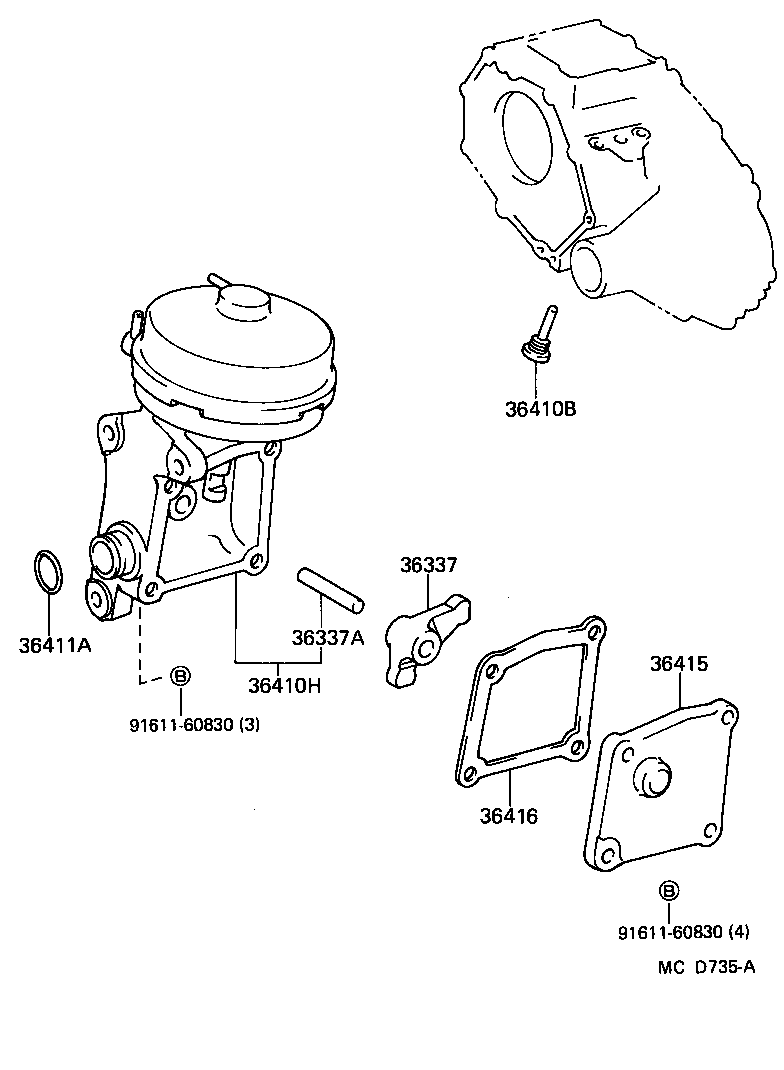

Click highlighted areas on diagram

diagram 36337 36337A 36410B 36410H 36411A 36415 36416 9161160830 9161160830
Part # Description Qty Price
36337 - LEVER, FRONT DRIVE SHIFT LINK
36337-28010

YR3#..4FC

 1
36337A - PIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER)
90250-10018

YR3#..4FC

 1
36410B - PLUG, W/HEAD STRAIGHT SCREW
90341-12021

YR3#..4FC

 1
36410H - ACTUATOR ASSY, TRANSFER VACUUM
36410-28010

YR3#..4FC

 1
36411A - RING, O (FOR DIAPHRAGM CYLINDER)
96721-24022

YR3#..4FC

 1
96711-24022

YR3#..4FC

 1
36415 - COVER, DIAPHRAGM CYLINDER
36415-28010

YR3#..4FC

 1
36416 - GASKET, DIAPHRAGM CYLINDER
36416-28010

YR3#..4FC

 1
Common parts
91611-60830
