YR31LG-PQEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YR3#

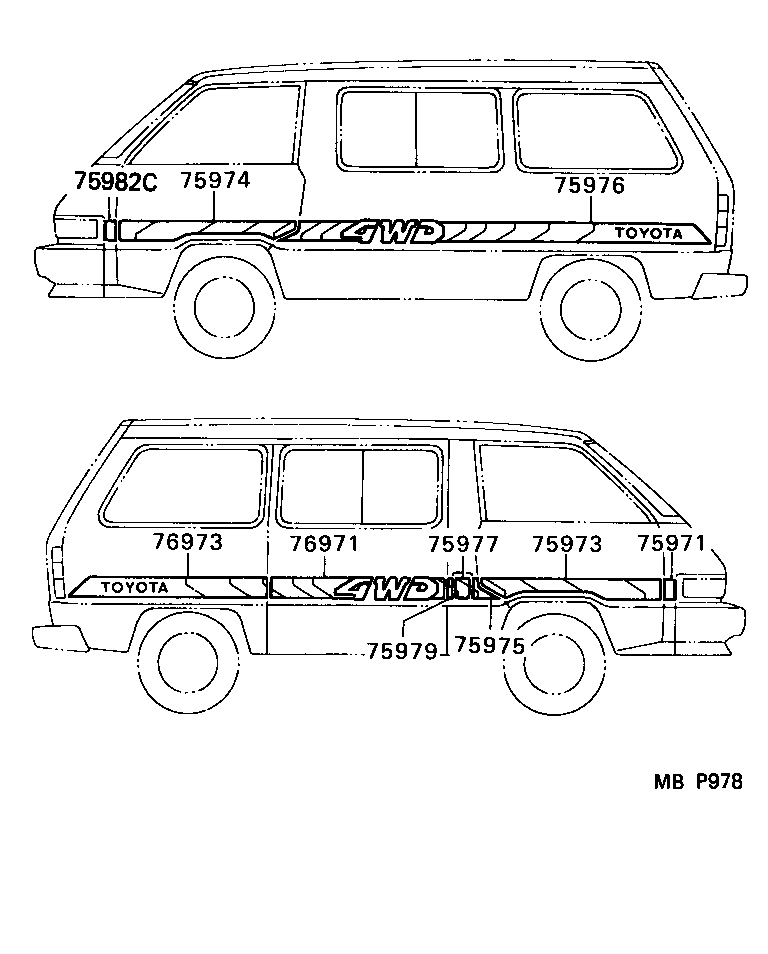

Click highlighted areas on diagram

diagram 75971 75973 75974 75975 75976 75977 75979 75982C 76971 76973
Part # Description Qty Price
75971 - STRIPE, SIDE, RH NO.1
75981-95D0003

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
75981-95D0006

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
75973 - STRIPE, SIDE, RH NO.2
75985-95D0006

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
75985-95D0003

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
75974 - STRIPE, CENTER PILLAR, LH NO.2
75986-95D0003

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
75986-95D0006

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
75975 - STRIPE, SIDE, RH UPR NO.3
75941-95D0003

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
75941-95D0006

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
75976 - STRIPE, SIDE, LH UPR
75992-95D0206

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
75992-95D0203

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
75977 - STRIPE, SIDE, RH NO.4
75942-95D0003

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
75942-95D0006

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
75979 - STRIPE, FUEL FILLER OPENING LID
76993-95D0006

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
76993-95D0003

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
75982C - STRIPE, FRONT FENDER, FRONT LH
75982-95D0006

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
75982-95D0003

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
76971 - STRIPE, SIDE, RH NO.5
75983-95D0003

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
75983-95D0006

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
76973 - STRIPE, SIDE, RH NO.6
75991-95D0206

YR3#

GOLD,045 ,148 ,22L ,4K5 ,4K7

 1
75991-95D0203

YR3#

SILVER,045 ,148 ,168 ,20L ,3H4 ,4J6 ,8D7 ,8D8

 1
