YR31LG-PQEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

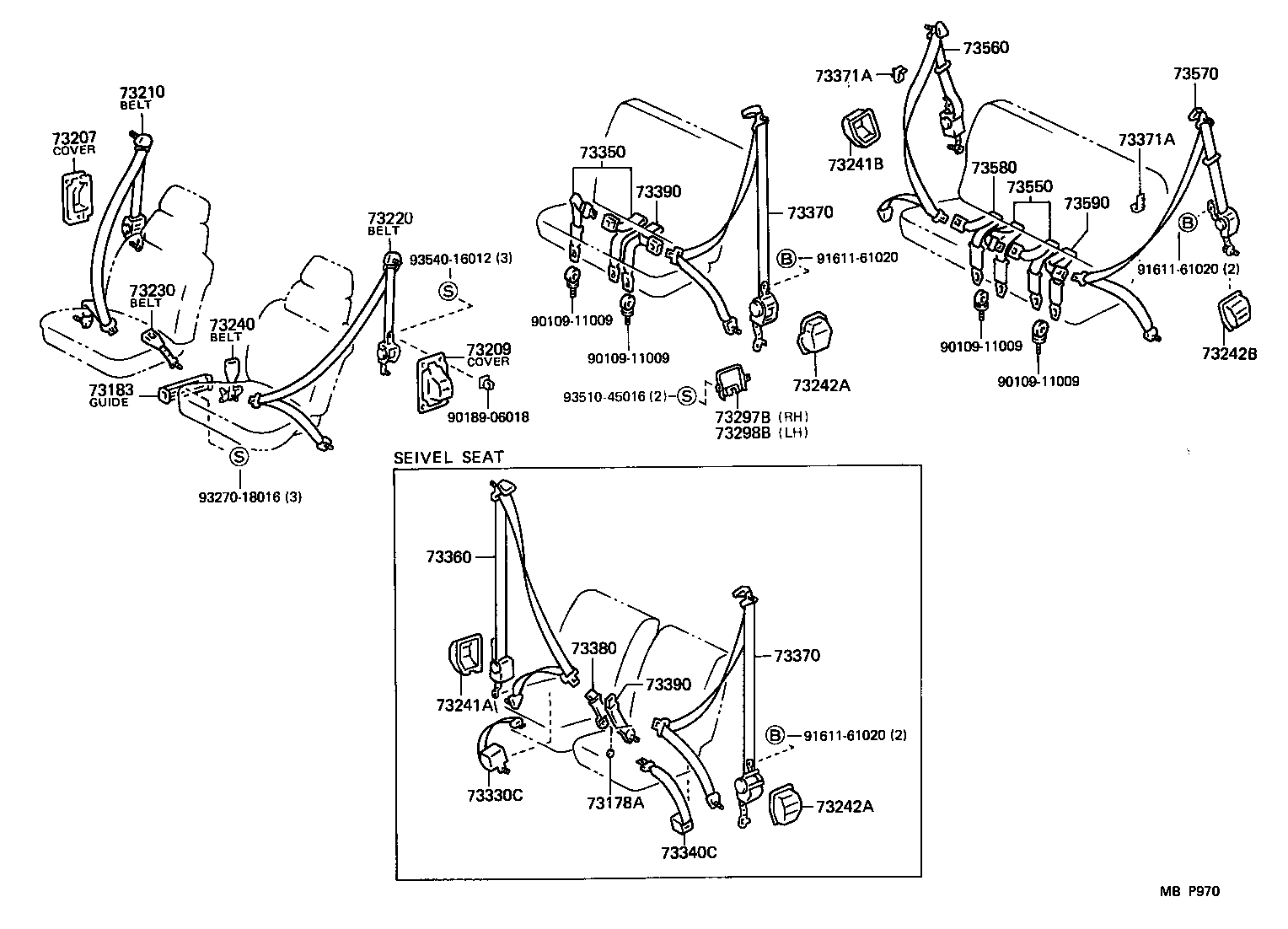

Click highlighted areas on diagram

diagram 73178A 73183 73207 73209 73210 73220 73230 73240 73241A 73241B 73242A 73242A 73242B 73297B 73298B 73330C 73340C 73350 73360 73370 73370 73371A 73371A 73380 73390 73390 73550 73560 73570 73580 73590 9010911009 9010911009 9010911009 9010911009 9018906018 9161161020 9161161020 9161161020 9327018016 9351045016 9354016012
Part # Description Qty Price
73178A - CAP, SEAT BELT ANCHOR COVER
73178-1601034

YR22,31..LE

BLUE,TRIM8#

 2
73178-1601056

YR22,31..LE

BROWNN,TRIM4#

 2
73178-1601013

YR22,31..LE

GRAY,TRIM1#

 2
73183 - GUIDE, FRONT SEAT LAP BELT, INNER
73183-28010

YR2#,3#

 1
73207 - COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
73207-87003

YR2#,3#

 1
73209 - COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
73209-28010

YR2#,3#

 1
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-2810004

YR22,31

BLUE,TRIM8#

 1
73210-2810003

YR22,31

SHADOW GRAY,TRIM1#

 1
73210-2810006

YR22,31

SABLE,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-2810004

YR2#,3#

BLUE,TRIM8#

 1
73220-2810006

YR2#,3#

SABLE,TRIM4#

 1
73220-2810003

YR2#,3#

SHADOW GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-2807116

YR22,31

SABLE,TRIM4#

 1
73230-2807103

YR22,31

SHADOW GRAY,TRIM1#

 1
73230-2807104

YR22,31

BLUE,TRIM8#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73240-2802204

YR2#,3#

BLUE,TRIM8#

 1
73240-2802216

YR2#,3#

SABLE,TRIM4#

 1
73240-2802203

YR2#,3#

SHADOW GRAY,TRIM1#

 1
73241A - CASE, SEAT BELT RETRACTOR, RH
73241-28040

YR22,31..LE

 1
73241B - CASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT)
73241-28020

YR22,31

 1
73242A - CASE, SEAT BELT RETRACTOR, LH
73242-28010

YR22,31

 1
73242A - CASE, SEAT BELT RETRACTOR, LH
73242-28010

YR22,31

 1
73242B - CASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT)
73242-28020

YR22,31

 1
73297B - COVER, QUARTER TRIM BELT HOLE, RH
73297-2801013

YR22,31..LE

SHADOW GRAY,TRIM1#

 1
73297-2801016

YR22,31..LE

SABLE,TRIM4#

 1
73297-2801014

YR22,31..LE

BLUE,TRIM8#

 1
73298B - COVER, QUARTER TRIM BELT HOLE, LH
73298-2801013

YR22,31

SHADOW GRAY,TRIM1#

 1
73298-2801016

YR22,31

SABLE,TRIM4#

 1
73298-2801014

YR22,31

BLUE,TRIM8#

 1
73330C - BELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73360-2809003

YR22,31..LE

SHADOW GRAY,TRIM1#

 1
73360-2809006

YR22,31..LE

SABLE,TRIM4#

 1
73360-2809004

YR22,31..LE

BLUE,TRIM8#

 1
73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH
73380-2809006

YR22,31..LE

SABLE,TRIM4#

 1
73380-2809003

YR22,31..LE

SHADOW GRAY,TRIM1#

 1
73380-2809004

YR22,31..LE

BLUE,TRIM8#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73350-2809004

YR22,31

BLUE,TRIM8#

 1
73350-2809006

YR22,31

SABLE,TRIM4#

 1
73350-2809003

YR22,31

SHADOW GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-2808003

YR22,31..LE

SHADOW GRAY,TRIM1#

 1
73360-2808006

YR22,31..LE

SABLE,TRIM4#

 1
73360-2808004

YR22,31..LE

BLUE,TRIM8#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-2808006

YR22,31

SABLE,TRIM4#

 1
73370-2808004

YR22,31

BLUE,TRIM8#

 1
73370-2808003

YR22,31

SHADOW GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-2808006

YR22,31

SABLE,TRIM4#

 1
73370-2808004

YR22,31

BLUE,TRIM8#

 1
73370-2808003

YR22,31

SHADOW GRAY,TRIM1#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-2001106

YR22,31

SABLE,TRIM4#

 2
73371-2001103

YR22,31

SHADOW GRAY,TRIM1#

 2
73371-2001016

YR22,31

BROWN,TRIM4#

 2
73371-2001104

YR22,31

DEEP BLUE,TRIM8#

 2
73371-2001003

YR22,31

SHADOW GRAY,TRIM1#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-2001106

YR22,31

SABLE,TRIM4#

 2
73371-2001103

YR22,31

SHADOW GRAY,TRIM1#

 2
73371-2001016

YR22,31

BROWN,TRIM4#

 2
73371-2001104

YR22,31

DEEP BLUE,TRIM8#

 2
73371-2001003

YR22,31

SHADOW GRAY,TRIM1#

 2
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-2809003

YR22,31..LE

SHADOW GRAY,TRIM1#

 1
73380-2809006

YR22,31..LE

SABLE,TRIM4#

 1
73380-2809004

YR22,31..LE

BLUE,TRIM8#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-2809004

YR22,31..LE

W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#

 1
73380-2809006

YR22,31..LE

W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#

 1
73390-2807006

YR22,31

SABLE,TRIM4#

 1
73390-2807004

YR22,31

BLUE,TRIM8#

 1
73390-2807003

YR22,31

SHADOW GRAY,TRIM1#

 1
73380-2809003

YR22,31..LE

W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-2809004

YR22,31..LE

W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#

 1
73380-2809006

YR22,31..LE

W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#

 1
73390-2807006

YR22,31

SABLE,TRIM4#

 1
73390-2807004

YR22,31

BLUE,TRIM8#

 1
73390-2807003

YR22,31

SHADOW GRAY,TRIM1#

 1
73380-2809003

YR22,31..LE

W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#

 1
73550 - BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
73550-2808003

YR22,31

SHADOW GRAY,TRIM1#

 1
73550-2808006

YR22,31

SABLE,TRIM4#

 1
73550-2808004

YR22,31

BLUE,TRIM8#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-2807004

YR22,31

BLUE,TRIM8#

 1
73560-2807006

YR22,31

SABLE,TRIM4#

 1
73560-2807003

YR22,31

SHADOW GRAY,TRIM1#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-2807006

YR22,31

SABLE,TRIM4#

 1
73570-2807004

YR22,31

BLUE,TRIM8#

 1
73570-2807003

YR22,31

SHADOW GRAY,TRIM1#

 1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-2804006

YR22,31

SABLE,TRIM4#

 1
73580-2804003

YR22,31

SHADOW GRAY,TRIM1#

 1
73580-2804004

YR22,31

BLUE,TRIM8#

 1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73590-2801004

YR22,31

BLUE,TRIM8#

 1
73590-2801006

YR22,31

SABLE,TRIM4#

 1
73590-2801003

YR22,31

SHADOW GRAY,TRIM1#

 1
Common parts
90109-11009
90189-06018
91611-61020
93270-18016
93510-45016
93540-16012
