YR31LG-PQEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

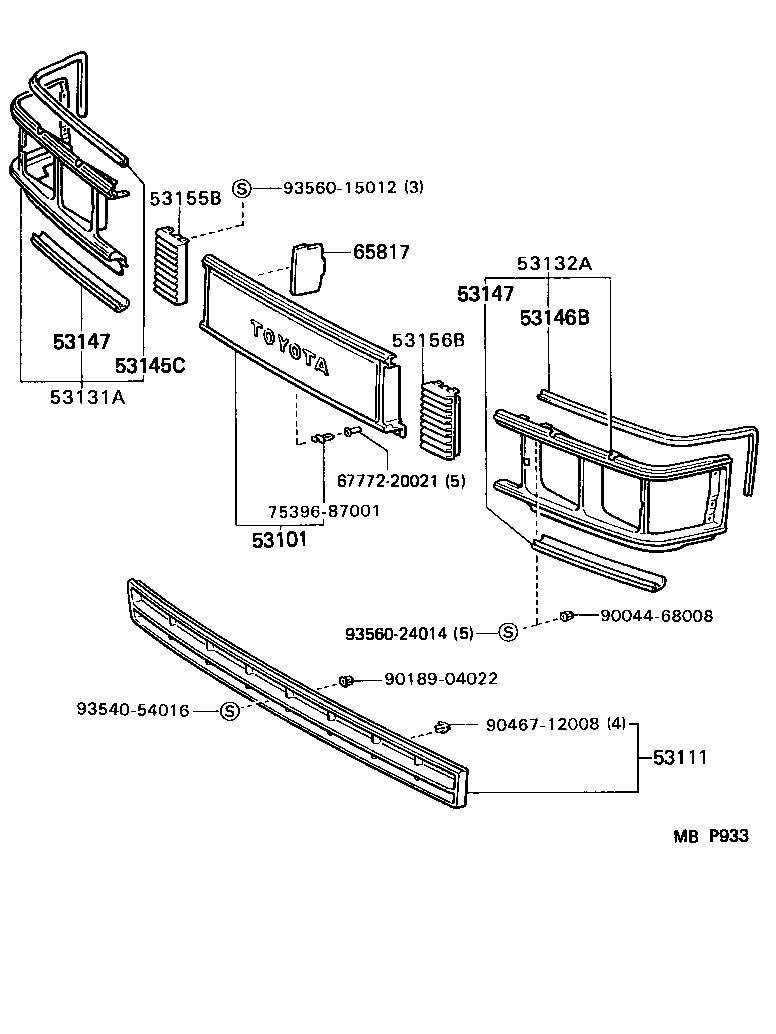

Click highlighted areas on diagram

diagram 53101 53111 53131A 53132A 53145C 53146B 53147 53147 53155B 53156B 65817 6777220021 7539687001 9004468008 9018904022 9046712008 9354054016 9356015012 9356024014
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53101-87012

YR22,31..LE

 1
53111 - GRILLE, RADIATOR
53111-2802003

YR22,31..LE

GRAY/BLACK,045 ,148 ,168 ,20L ,22L ,3H4 ,4J6 ,4K5 ,4K7 ,8D7 ,8D8

 1
53131A - DOOR, HEADLAMP, RH
53031-87028

YR22,31..LE

 1
53132A - DOOR, HEADLAMP, LH
53032-87027

YR22,31..LE

 1
53145C - PROTECTOR, HEADLAMP DOOR, SIDE RH
53145-87003

YR2#,3#

 1
53146B - PROTECTOR, HEADLAMP DOOR, SIDE LH
53146-87005

YR2#,3#

 1
53147 - WEATHERSTRIP, HEADLAMP ORNAMENT, NO.1
53147-87004

YR2#,3#

 2
53147 - WEATHERSTRIP, HEADLAMP ORNAMENT, NO.1
53147-87004

YR2#,3#

 2
53155B - BEZEL, HEADLAMP, OUTER RH
53155-87001

YR22,31

 1
53156B - BEZEL, HEADLAMP, OUTER LH
53156-87001

YR22,31

 1
65817 - PAD, COVER TOP PANEL END
65817-28010

YR2#,3#

 1
Common parts
67772-20021
75396-87001
90044-68008
90189-04022
90467-12008
93540-54016
93560-15012
93560-24014
