YR31LG-PQEA (1986)
Toyota Van
Production
Aug 1986
-
Aug 1988
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8608- )YR3#

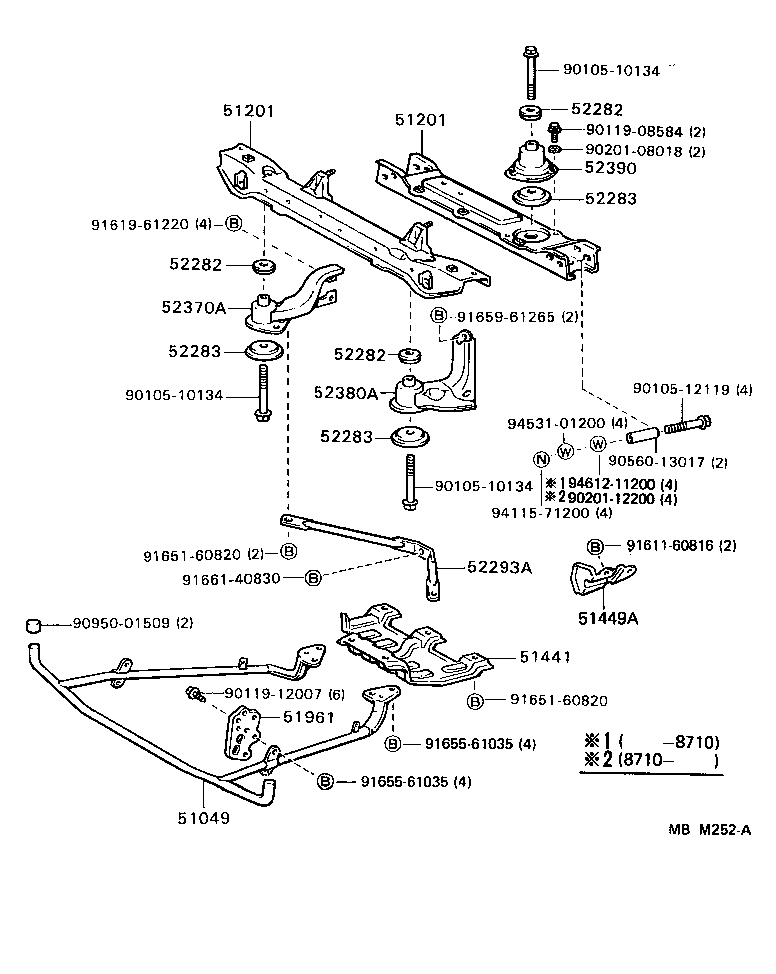

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51049 - BAR SUB-ASSY, UNDER GUARD, FRONT | ||||
| 51049-95D00 |
YR3# |
1 | ||
| 51049-95D02 |
YR3# |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-95D00 |
YR3# RR |
1 | ||
| 51201-95D01 |
YR3# FR |
1 | ||
| 51203-95D01 |
YR3# RR |
1 | ||
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51203-95D00 |
YR3# RR |
1 | ||
| 51201-95D01 |
YR3# FR |
1 | ||
| 51203-95D01 |
YR3# RR |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51441-95D00 |
YR3# |
1 | ||
| 51449A - COVER, ENGINE SIDE UNDER, LH | ||||
| 51449-95D00 |
YR3# |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51970-95D00 |
YR3# RH |
1 | ||
| 51980-95D00 |
YR3# LH |
1 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95D00 |
YR3# |
3 | ||
| 52282-95D01 |
YR3# |
3 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95D00 |
YR3# |
3 | ||
| 52282-95D01 |
YR3# |
3 | ||
| 52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER | ||||
| 52282-95D00 |
YR3# |
3 | ||
| 52282-95D01 |
YR3# |
3 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95D00 |
YR3# FR |
2 | ||
| 52283-95D03 |
YR3# RR |
1 | ||
| 52283-95D01 |
YR3# RR |
1 | ||
| 52283-95D02 |
YR3# FR |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95D00 |
YR3# FR |
2 | ||
| 52283-95D03 |
YR3# RR |
1 | ||
| 52283-95D01 |
YR3# RR |
1 | ||
| 52283-95D02 |
YR3# FR |
2 | ||
| 52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER | ||||
| 52283-95D00 |
YR3# FR |
2 | ||
| 52283-95D03 |
YR3# RR |
1 | ||
| 52283-95D01 |
YR3# RR |
1 | ||
| 52283-95D02 |
YR3# FR |
2 | ||
| 52293A - BRACE, FRONT DIFFERENTIAL SUPPORT | ||||
| 52293-95D00 |
YR3# |
1 | ||
| 52370A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT RH | ||||
| 52370-95D03 |
YR3# |
1 | ||
| 52370-95D02 |
YR3# |
1 | ||
| 52370-95D00 |
YR3# |
1 | ||
| 52380A - SUPPORT ASSY, FRONT DIFFERENTIAL, FRONT LH | ||||
| 52380-95D02 |
YR3# |
1 | ||
| 52380-95D00 |
YR3# |
1 | ||
| 52380-95D03 |
YR3# |
1 | ||
| 52390 - SUPPORT ASSY, FRONT DIFFERENTIAL, REAR | ||||
| 52390-95D00 |
YR3# |
1 | ||
| 52390-95D02 |
YR3# |
1 | ||
| 52390-95D03 |
YR3# |
1 | ||
| Common parts | ||||
| 90105-10134 | ||||
| 90105-12119 | ||||
| 90119-08584 | ||||
| 90119-12007 | ||||
| 90201-08018 | ||||
| 90201-12200 | ||||
| 90560-13017 | ||||
| 90950-01509 | ||||
| 91611-60816 | ||||
| 91619-61220 | ||||
| 91651-60820 | ||||
| 91655-61035 | ||||
| 91659-61265 | ||||
| 91661-40830 | ||||
| 94115-71200 | ||||
| 94531-01200 | ||||
| 94612-11200 | ||||
