YR31LG-PDEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

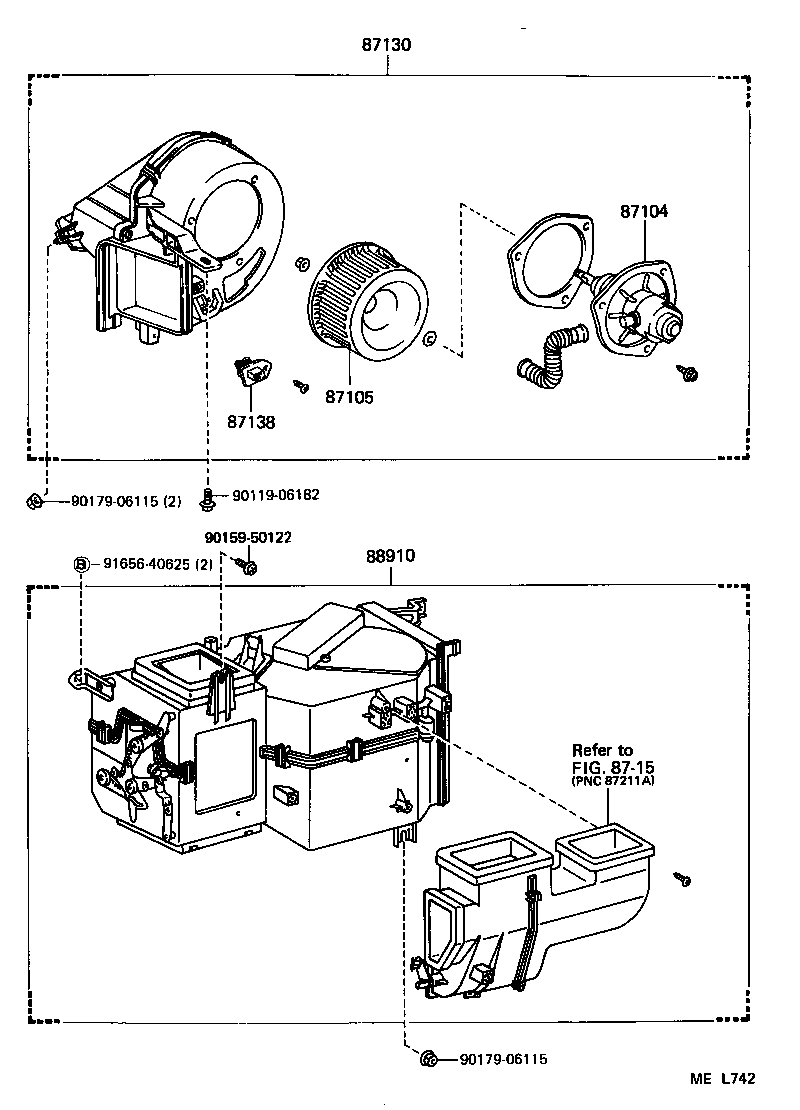

ILLUST NO. 1 OF 3(8808- )
Click highlighted areas on diagram
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-28010 |
YR2#,3# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12060 |
YR2#,3# |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28030 |
YR2#,3#..CND |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28051 |
YR2#,3# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-87009 |
YR2#,3# |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-28160 |
YR2#,3#..CND |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90159-50122 | ||||
| 90179-06115 | ||||
| 91656-40625 | ||||
| Linked diagrams | ||||
| 8715 | ||||

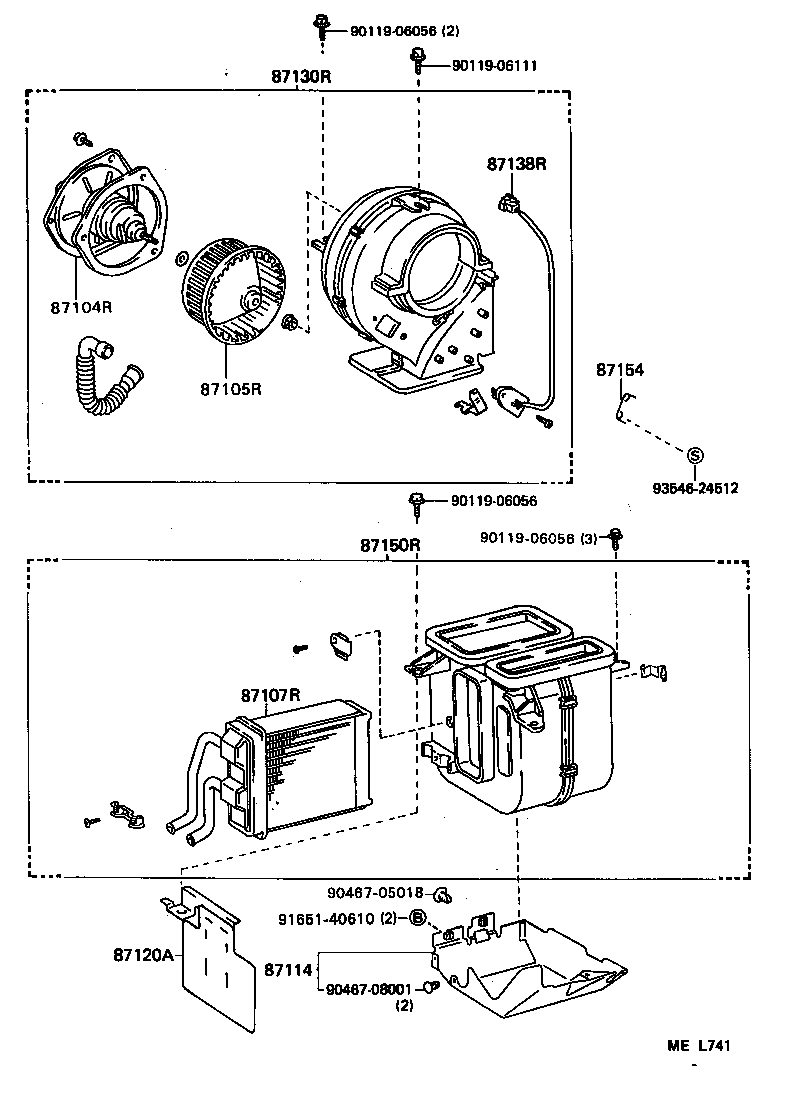

ILLUST NO. 2 OF 3(8808- )
Click highlighted areas on diagram
REAR HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-87007 |
YR22,31..CND |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-14020 |
YR22,31..CND |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-95D01 |
YR31..CND |
1 | ||
| 87114 - COVER, HEATER | ||||
| 55074-87005 |
YR22,31..CND |
1 | ||
| 87120A - COVER, REAR HEATER | ||||
| 55077-87001 |
YR22,31..CND |
1 | ||
| 87130R - BLOWER ASSY, REAR HEATER | ||||
| 87130-28032 |
YR31..CND W(DUAL AIR CONDITIONER) |
1 | ||
| 87130-28022 |
YR22,31..CND |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-87008 |
YR22,31..CND |
1 | ||
| 87150R - RADIATOR ASSY, REAR HEATER | ||||
| 87150-95D03 |
YR31..CND |
1 | ||
| 87154 - SHAFT, DAMPER | ||||
| 87154-28010 |
YR22,31..CND |
1 | ||
| Common parts | ||||
| 90119-06056 | ||||
| 90119-06111 | ||||
| 90467-05018 | ||||
| 90467-08001 | ||||
| 91651-40610 | ||||
| 93546-24512 | ||||

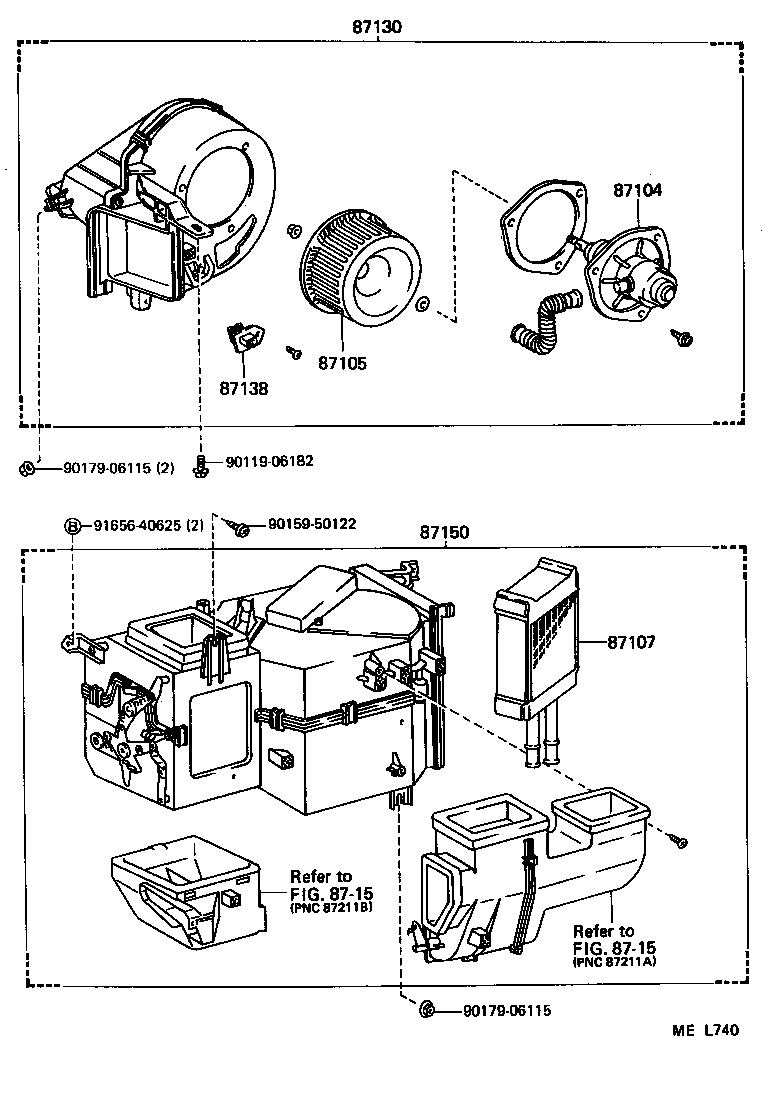

ILLUST NO. 3 OF 3(8808- )
Click highlighted areas on diagram
BOOST VENTILATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-28010 |
YR2#,3# |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12060 |
YR2#,3# |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28051 |
YR2#,3# |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-87009 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90159-50122 | ||||
| 90179-06115 | ||||
| 91656-40625 | ||||
| Linked diagrams | ||||
| 8715 | ||||
