YR31LG-PDEK (1988)
Toyota Van

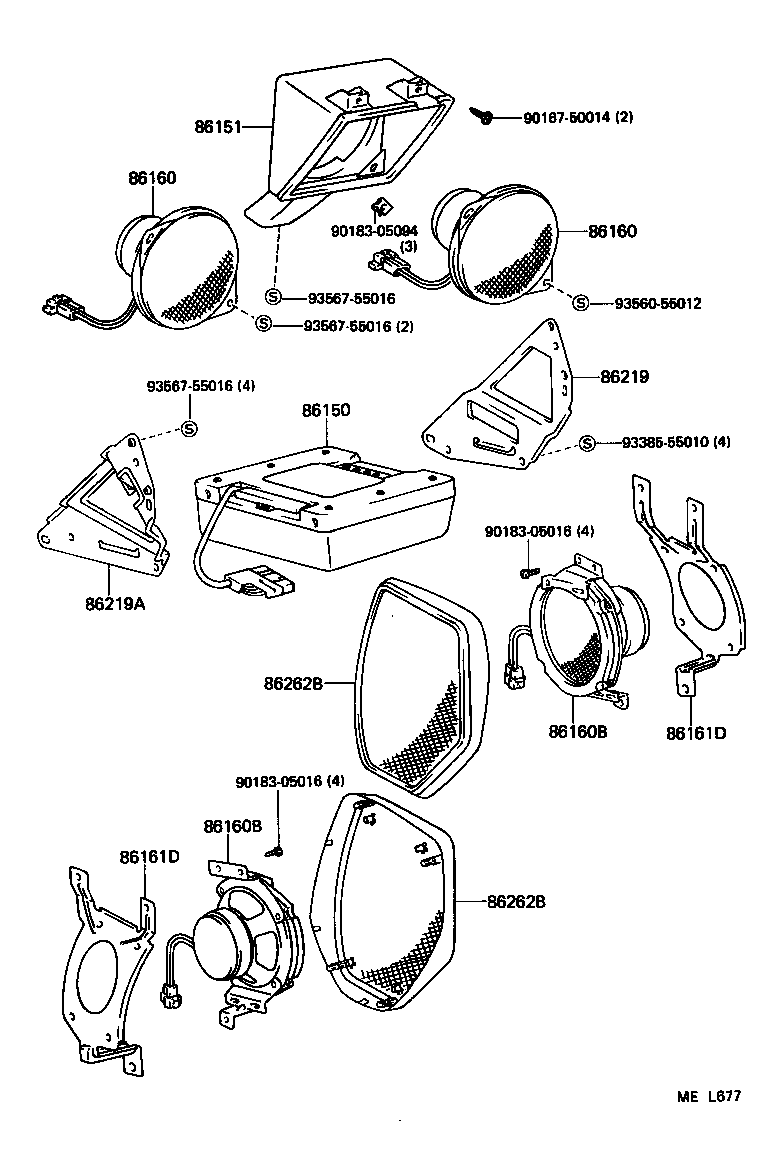

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-87011 |
YR31..DLX;YR22..DLX..CND |
1 | ||
| 86151 - BOX, SPEAKER | ||||
| 86151-87001 |
YR31..DLX;YR22..DLX..CND |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-87011 |
YR31..DLX;YR22..DLX..CND BOX SPEAKER |
1 | ||
| 86160-10140 |
YR31..DLX;YR22..DLX..CND |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-87011 |
YR31..DLX;YR22..DLX..CND BOX SPEAKER |
1 | ||
| 86160-10140 |
YR31..DLX;YR22..DLX..CND |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-28050 |
YR22,31..CND;YR31..DLX..USA RH |
1 | ||
| 86160-28060 |
YR22,31..CND;YR31..DLX..USA LH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-28050 |
YR22,31..CND;YR31..DLX..USA RH |
1 | ||
| 86160-28060 |
YR22,31..CND;YR31..DLX..USA LH |
1 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-28010 |
YR31..DLX;YR22..DLX..CND RH |
1 | ||
| 86161-28020 |
YR31..DLX;YR22..DLX..CND LH |
1 | ||
| 86161-28010 |
YR22,31..CND;YR31..DLX..USA RH |
1 | ||
| 86161-28020 |
YR22,31..CND;YR31..DLX..USA LH |
1 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-28010 |
YR31..DLX;YR22..DLX..CND RH |
1 | ||
| 86161-28020 |
YR31..DLX;YR22..DLX..CND LH |
1 | ||
| 86161-28010 |
YR22,31..CND;YR31..DLX..USA RH |
1 | ||
| 86161-28020 |
YR22,31..CND;YR31..DLX..USA LH |
1 | ||
| 86219 - BRACKET, STEREO COMPONENT SPEAKER, NO.1 | ||||
| 86219-28010 |
YR31..DLX;YR22..DLX..CND |
1 | ||
| 86219A - BRACKET, STEREO COMPONENT SPEAKER, NO.2 | ||||
| 86219-28020 |
YR31..DLX;YR22..DLX..CND |
1 | ||
| 86262B - COVER, SPEAKER, REAR | ||||
| 86225-2801004 |
YR31..DLX;YR22..DLX..CND BLUE,TRIM8#,RH |
1 | ||
| 86225-2801006 |
YR31..DLX;YR22..DLX..CND BROWN,TRIM4#,RH |
1 | ||
| 86225-2801003 |
YR31..DLX;YR22..DLX..CND SHADOW GRAY,TRIM1#,RH |
1 | ||
| 86226-2801004 |
YR31..DLX;YR22..DLX..CND BLUE,TRIM8#,LH |
1 | ||
| 86226-2801006 |
YR31..DLX;YR22..DLX..CND BROWN,TRIM4#,LH |
1 | ||
| 86226-2801003 |
YR31..DLX;YR22..DLX..CND SHADOW GRAY,TRIM1#,LH |
1 | ||
| 86225-2801004 |
YR22,31..CND;YR31..DLX..USA BLUE,TRIM8#,RH |
1 | ||
| 86226-2801004 |
YR22,31..CND;YR31..DLX..USA BLUE,TRIM8#,LH |
1 | ||
| 86226-2801003 |
YR22,31..CND;YR31..DLX..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 86225-2801006 |
YR22,31..CND;YR31..DLX..USA BROWN,TRIM4#,RH |
1 | ||
| 86226-2801006 |
YR22,31..CND;YR31..DLX..USA BROWN,TRIM4#,LH |
1 | ||
| 86225-2801003 |
YR22,31..CND;YR31..DLX..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| 86262B - COVER, SPEAKER, REAR | ||||
| 86225-2801004 |
YR31..DLX;YR22..DLX..CND BLUE,TRIM8#,RH |
1 | ||
| 86225-2801006 |
YR31..DLX;YR22..DLX..CND BROWN,TRIM4#,RH |
1 | ||
| 86225-2801003 |
YR31..DLX;YR22..DLX..CND SHADOW GRAY,TRIM1#,RH |
1 | ||
| 86226-2801004 |
YR31..DLX;YR22..DLX..CND BLUE,TRIM8#,LH |
1 | ||
| 86226-2801006 |
YR31..DLX;YR22..DLX..CND BROWN,TRIM4#,LH |
1 | ||
| 86226-2801003 |
YR31..DLX;YR22..DLX..CND SHADOW GRAY,TRIM1#,LH |
1 | ||
| 86225-2801004 |
YR22,31..CND;YR31..DLX..USA BLUE,TRIM8#,RH |
1 | ||
| 86226-2801004 |
YR22,31..CND;YR31..DLX..USA BLUE,TRIM8#,LH |
1 | ||
| 86226-2801003 |
YR22,31..CND;YR31..DLX..USA SHADOW GRAY,TRIM1#,LH |
1 | ||
| 86225-2801006 |
YR22,31..CND;YR31..DLX..USA BROWN,TRIM4#,RH |
1 | ||
| 86226-2801006 |
YR22,31..CND;YR31..DLX..USA BROWN,TRIM4#,LH |
1 | ||
| 86225-2801003 |
YR22,31..CND;YR31..DLX..USA SHADOW GRAY,TRIM1#,RH |
1 | ||
| Common parts | ||||
| 90167-50014 | ||||
| 90183-05016 | ||||
| 90183-05094 | ||||
| 93385-55010 | ||||
| 93560-55012 | ||||
| 93567-55016 | ||||

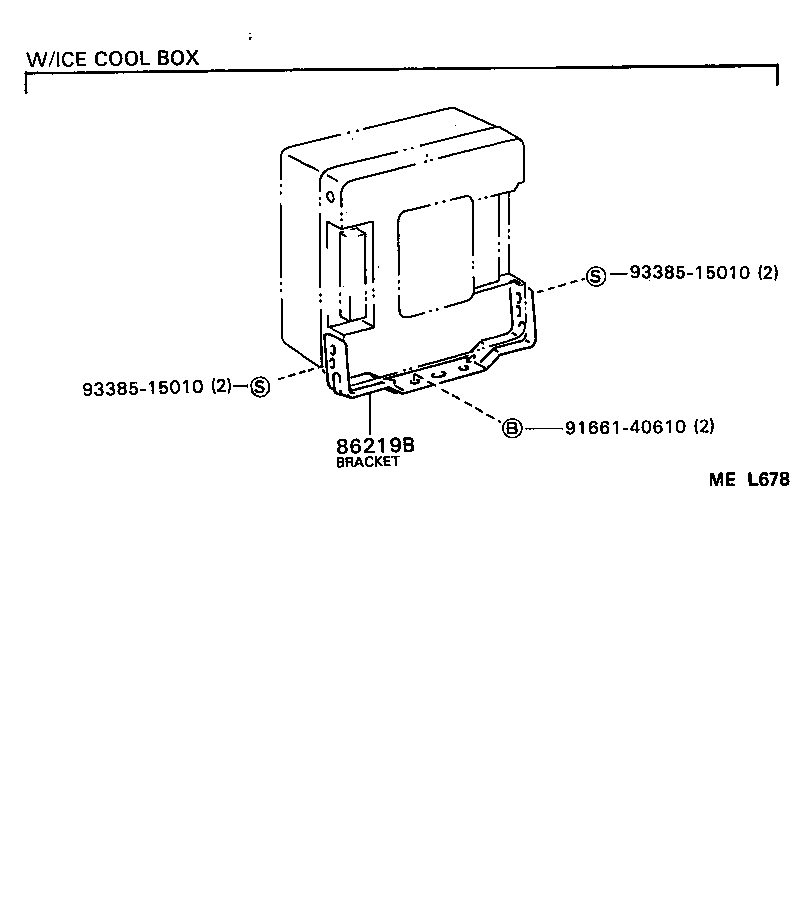

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86219B - BRACKET, STEREO COMPONENT SPEAKER, NO.3 | ||||
| 86219-87001 |
YR31..DLX;YR22..DLX..CND |
1 | ||
| Common parts | ||||
| 91661-40610 | ||||
| 93385-15010 | ||||
