YR31LG-PDEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

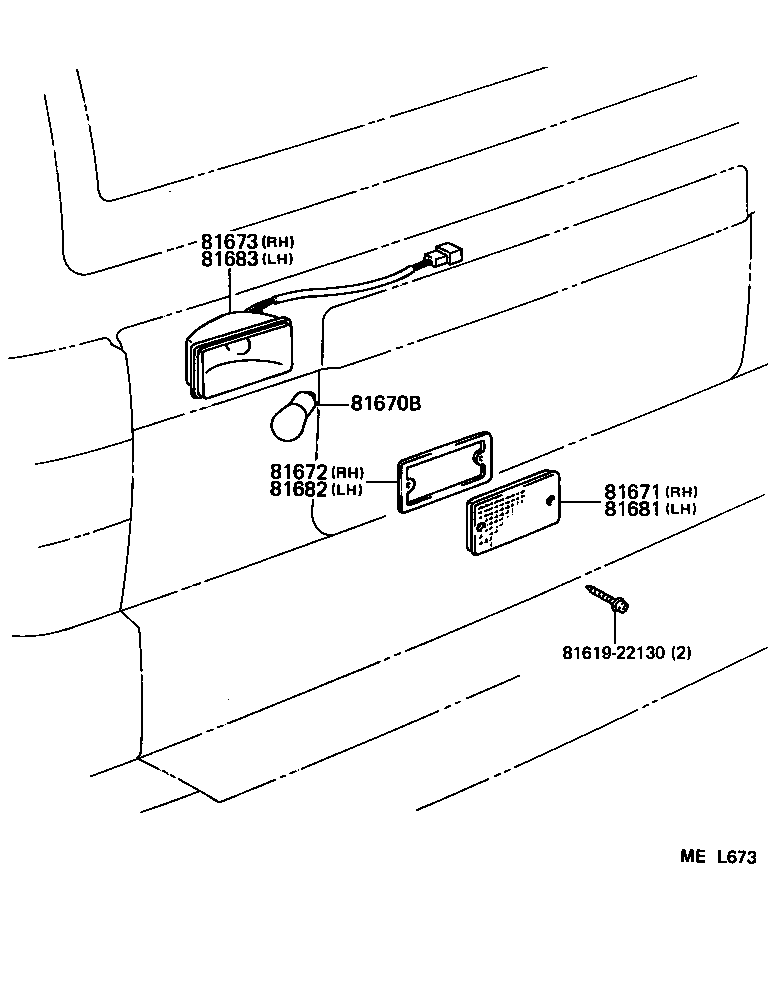

Click highlighted areas on diagram

diagram 8161922130 81670B 81671 81672 81673 81681 81682 81683
Part # Description Qty Price
81670B - BULB(FOR BACK-UP LAMP)
99132-11270

YR22,31

12V 27W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-87001

YR22,31

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-87001

YR22,31

 1
81673 - BODY, BACK-UP LAMP, RH
81673-28010

YR22,31

 1
81681 - LENS, BACK-UP LAMP, LH
81681-87001

YR22,31

 1
81682 - GASKET, BACK UP LAMP LENS, LH
81672-87001

YR22,31

 1
81683 - BODY, BACK UP LAMP, LH
81683-28010

YR22,31

 1
Common parts
81619-22130
