YR31LG-PDEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

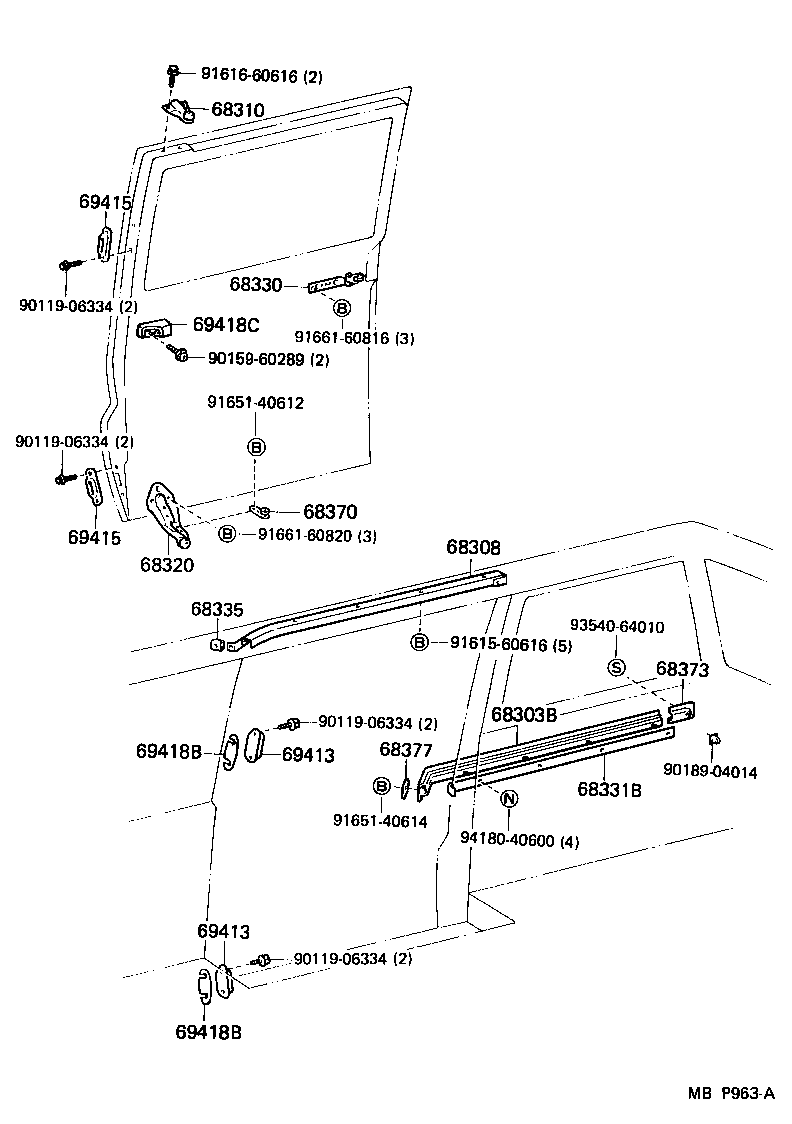

Click highlighted areas on diagram

diagram 68303B 68308 68310 68320 68330 68331B 68335 68370 68373 68377 69413 69413 69415 69415 69418B 69418B 69418C 9011906334 9011906334 9011906334 9011906334 9015960289 9018904014 9161560616 9161660616 9165140612 9165140614 9166160816 9166160820 9354064010 9418040600
Part # Description Qty Price
68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68303-87001

YR2#,3#

 1
68308 - RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68308-87001

YR2#,3#

 1
68310 - ROLLER ASSY, SLIDE DOOR, UPPER
68310-87001

YR2#,3#

 1
68320 - ROLLER ASSY, SLIDE DOOR, LOWER
68350-87001

YR2#,3#

 1
68330 - ROLLER ASSY, SLIDE DOOR, CENTER
68330-87002

YR2#,3#

 1
68331B - PAD, SLIDE DOOR CENTER RAIL
68367-87002

YR2#,3#

 1
68335 - PAD, SLIDE DOOR UPPER RAIL
69243-87002

YR2#,3#

 1
68370 - ROLLER ASSY, SLIDE DOOR, LOWER SUB
68350-87002

YR2#,3#

 1
68373 - MOULDING, SLIDE RAIL END, RH
68373-87001

YR2#,3#

 1
68377 - PAD, SLIDE DOOR CENTER RAIL, FRONT
68377-87001

YR2#,3#

 1
69413 - STOP, SLIDE DOOR DOWN MALE
69416-87002

YR22,31..DLX;YR29,32..USA

W(POWER DOOR LOCK)

 1
69416-87002

YR2#,3#..DLX,STD

 2
69413 - STOP, SLIDE DOOR DOWN MALE
69416-87002

YR22,31..DLX;YR29,32..USA

W(POWER DOOR LOCK)

 1
69416-87002

YR2#,3#..DLX,STD

 2
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-87003

YR2#,3#..DLX,STD

 2
69415-87003

YR22,31..DLX;YR29,32..USA

W(POWER DOOR LOCK)

 1
69415 - STOPPER, SLIDE DOOR DOWN FEMALE
69415-87003

YR2#,3#..DLX,STD

 2
69415-87003

YR22,31..DLX;YR29,32..USA

W(POWER DOOR LOCK)

 1
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700

YR2#,3#

 1
69418B - SHIM, SLIDE DOOR DOWN STOP MALE
69418-95700

YR2#,3#

 1
69418C - STOPPER, BACK DOOR MALE, LOWER
69418-87003

YR2#,3#

 1
Common parts
90119-06334
90159-60289
90189-04014
91615-60616
91616-60616
91651-40612
91651-40614
91661-60816
91661-60820
93540-64010
94180-40600
