YR29LV-PREA (1988)
Toyota Van
ILLUST NO. 3 OF 5(8808- )

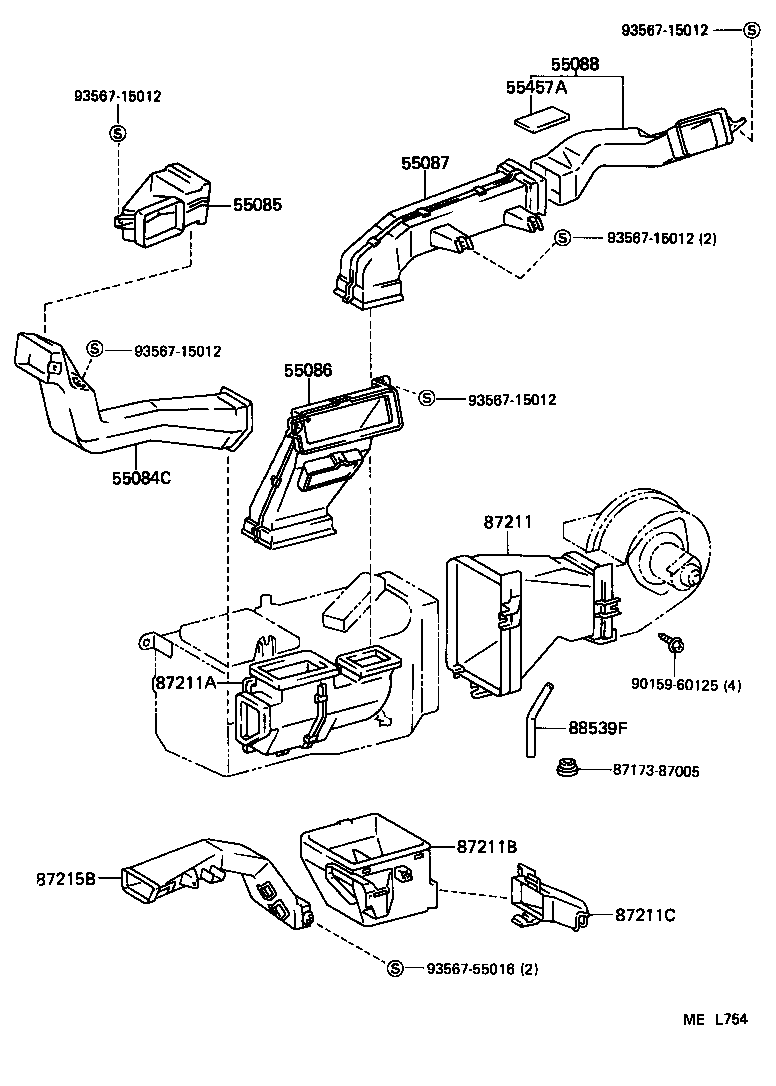

FRONT DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084C - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-28020 |
YR2#,3# |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-28020 |
YR2#,3# |
1 | ||
| 55086 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.3 | ||||
| 55086-28030 |
YR2#,3# |
1 | ||
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55087-28020 |
YR2#,3# |
1 | ||
| 55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5 | ||||
| 55088-28010 |
YR2#,3# |
1 | ||
| 55457A - SPACER, INSTRUMENT PANEL SAFETY PAD | ||||
| 55457-22030 |
YR2#,3# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-28020 |
YR2#,3# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-28010 |
YR2#,3# |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87201-28030 |
YR2#,3# |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-28010 |
YR2#,3# |
1 | ||
| 87215B - DUCT, AIR, SIDE NO.3 LH | ||||
| 87211-28021 |
YR2#,3# |
1 | ||
| 88539F - HOSE, DRAIN | ||||
| 88539-12010 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 87173-87005 | ||||
| 90159-60125 | ||||
| 93567-15012 | ||||
| 93567-55016 | ||||
ILLUST NO. 5 OF 5(8808- )YR2#,31
W(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-87003 |
YR29..USA LOWER |
1 | ||
| 88565-8700103 |
YR22,31;YR29..USA UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 88565-8700104 |
YR22,31;YR29..USA UPPER,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 88565-8700104 |
YR29..USA LIGHT BLUE,TRIM8#,UPPER |
3 | ||
| 88565-8700106 |
YR22,31;YR29..USA UPPER,LIGHT BROWN,LIGHT BROWN,TRIM4# |
1 | ||
| 88565-8700106 |
YR29..USA LIGHT BROWN,TRIM4#,UPPER |
3 | ||
| 87226-87003 |
YR22,31;YR29..USA LOWER |
1 | ||
| 88565-8700103 |
YR29..USA GRAY,TRIM1#,UPPER |
3 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-2801104 |
YR29..USA LIGHT BLUE,TRIM8# |
3 | ||
| 88566-2801103 |
YR22,31;YR29..USA GRAY,TRIM1# |
1 | ||
| 88566-2801104 |
YR22,31;YR29..USA LIGHT BLUE,TRIM8# |
1 | ||
| 88566-2801106 |
YR29..USA LIGHT BROWN,TRIM4# |
3 | ||
| 88566-2801103 |
YR29..USA GRAY,TRIM1# |
3 | ||
| 88566-2801106 |
YR22,31;YR29..USA LIGHT BROWN,TRIM4# |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-2801003 |
YR29..USA GRAY,TRIM1# |
6 | ||
| 88570-2801004 |
YR22,31;YR29..USA LIGHT BLUE,TRIM8# |
2 | ||
| 88570-2801004 |
YR29..USA LIGHT BLUE,TRIM8# |
6 | ||
| 88570-2801006 |
YR29..USA LIGHT BROWN,TRIM4# |
6 | ||
| 88570-2801003 |
YR22,31;YR29..USA GRAY,TRIM1# |
2 | ||
| 88570-2801006 |
YR22,31;YR29..USA LIGHT BROWN,TRIM4# |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-2801003 |
YR29..USA GRAY,TRIM1# |
6 | ||
| 88570-2801004 |
YR22,31;YR29..USA LIGHT BLUE,TRIM8# |
2 | ||
| 88570-2801004 |
YR29..USA LIGHT BLUE,TRIM8# |
6 | ||
| 88570-2801006 |
YR29..USA LIGHT BROWN,TRIM4# |
6 | ||
| 88570-2801003 |
YR22,31;YR29..USA GRAY,TRIM1# |
2 | ||
| 88570-2801006 |
YR22,31;YR29..USA LIGHT BROWN,TRIM4# |
2 | ||
| 88688H - BRACKET, COOLER AIR DUCT, NO.1 | ||||
| 88688-87014 |
YR22,31;YR29..USA |
2 | ||
| Common parts | ||||
| 90099-01514 | ||||
| 90099-02212 | ||||
| 90179-06035 | ||||
| 91655-40616 | ||||
| 93530-25025 | ||||
| 93540-45014 | ||||
ILLUST NO. 1 OF 5(8808- )

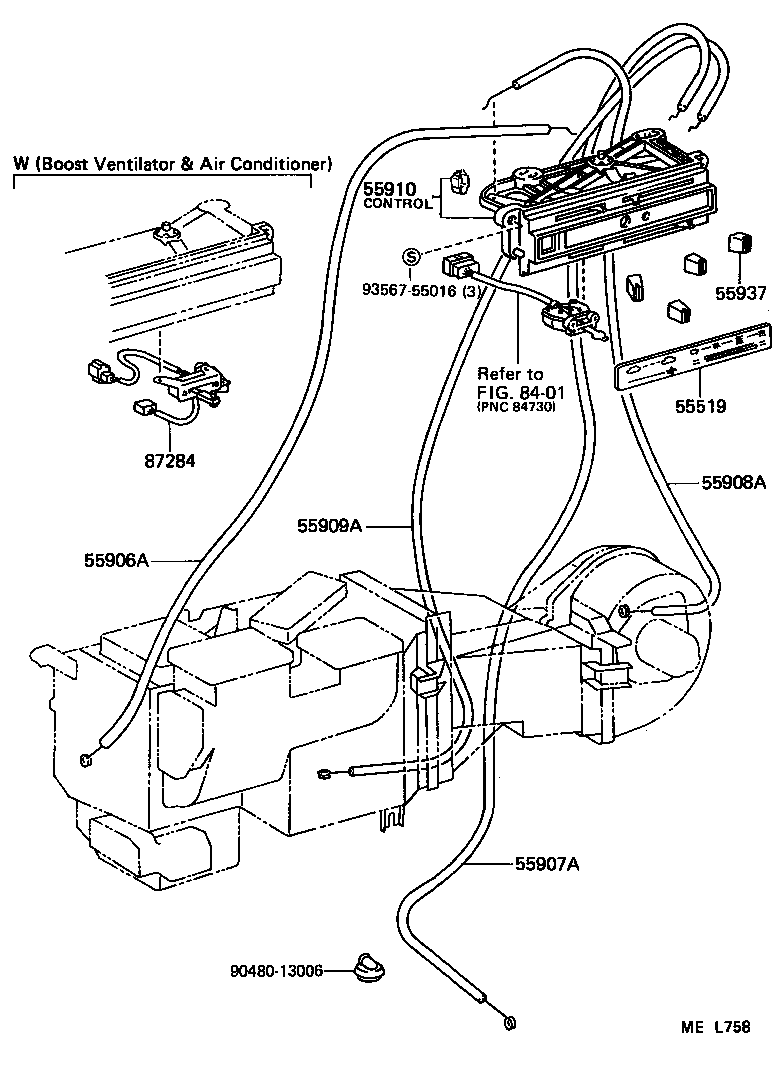

FRONT CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-28101 |
YR29..USA W(DUAL AIR CONDITIONER) |
1 | ||
| 55519-28071 |
YR2#,3# |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28030 |
YR2#,3# |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-28011 |
YR2#,3# |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-87004 |
YR2#,3# |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28011 |
YR2#,3# |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-28030 |
YR2#,3# |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
YR2#,3# |
4 | ||
| Common parts | ||||
| 90480-13006 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 5(8808- )
REAR CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-28140 |
YR29..USA W(REAR COOLER) |
1 | ||
| 55519-28051 |
YR2#,3#..USA |
1 | ||
| 55906R - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-28020 |
YR29..USA |
1 | ||
| 55909R - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28023 |
YR29,32..USA |
1 | ||
| 55909-28022 |
YR29,32..USA |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55910-2802103 |
YR2#,3#..USA SHADOW GRAY,TRIM1# |
1 | ||
| 55910-2802114 |
YR2#,3#..USA BLUE,TRIM8# |
1 | ||
| 55910-2802116 |
YR2#,3#..USA SABLE,TRIM4# |
1 | ||
| 55910-2802204 |
YR2#,3#..USA BLUE,TRIM8# |
1 | ||
| 55910-2802203 |
YR2#,3#..USA SHADOW GRAY,TRIM1# |
1 | ||
| 55910-2802206 |
YR2#,3#..USA SABLE,TRIM4# |
1 | ||
| 55937R - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89110 |
YR29..USA |
1 | ||
| 55905-89110 |
YR29,32;YR22,31..USA W(REAR HEATER) |
2 | ||
| 55937R - KNOB, HEATER CONTROL LEVER | ||||
| 55905-89110 |
YR29..USA |
1 | ||
| 55905-89110 |
YR29,32;YR22,31..USA W(REAR HEATER) |
2 | ||
| Common parts | ||||
| 56933-28010 | ||||
| 82711-12200 | ||||
| 90480-14338 | ||||
| 93546-25512 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 5(8808- )

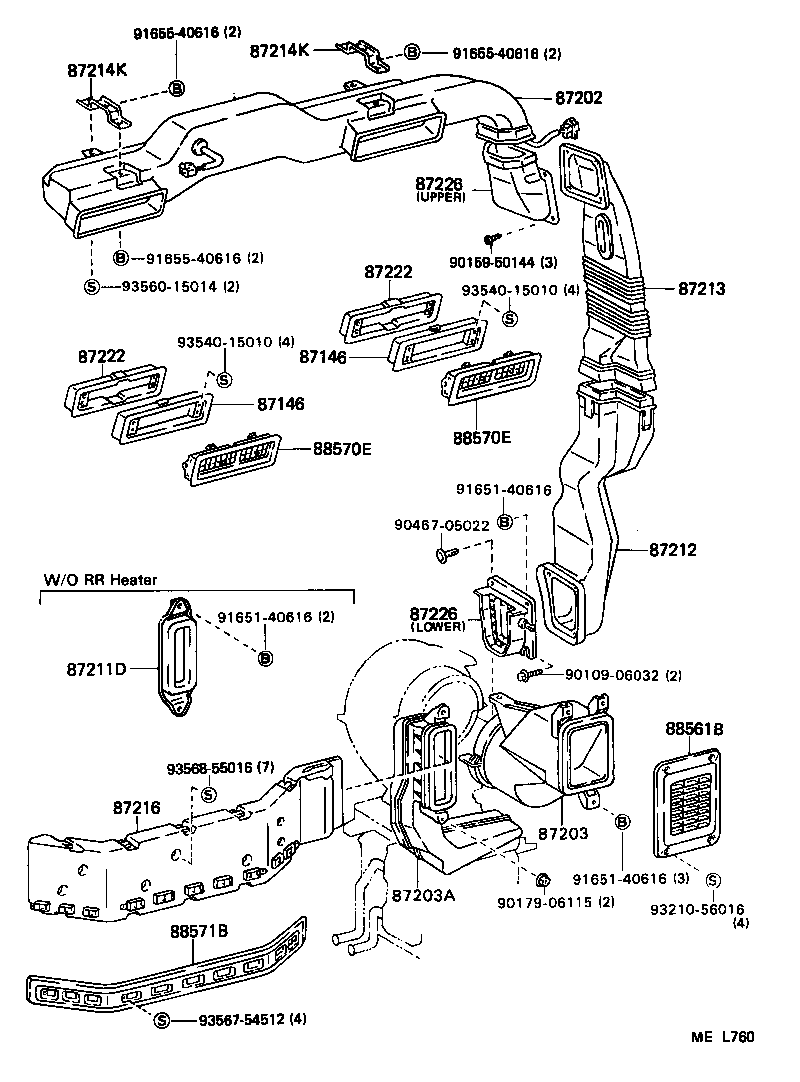

REAR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87203 - DUCT, HEATER AIR, REAR NO.1 | ||||
| 87202-87001 |
YR29;YR22..USA |
1 | ||
| 87203A - DUCT ASSY, HEATER AIR, REAR | ||||
| 87212-87008 |
YR2#..USA W(FRONT HEATER-CORE SIZE 49MM) |
1 | ||
| 87212-87007 |
YR2#,32..USA |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-87003 |
YR29..USA |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-87001 |
YR29..USA |
1 | ||
| 87216 - DUCT, HEATER INTERIOR AIR (TO REAR) | ||||
| 87213-28010 |
YR2#..(DLX,STD)..USA W(FRONT HEATER-CORE SIZE 49MM) |
1 | ||
| 87213-87002 |
YR2#,32..(DLX,STD)..USA |
1 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-87003 |
YR29..USA LOWER |
1 | ||
| 88565-8700103 |
YR22,31;YR29..USA UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 88565-8700104 |
YR22,31;YR29..USA UPPER,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 88565-8700104 |
YR29..USA LIGHT BLUE,TRIM8#,UPPER |
3 | ||
| 88565-8700106 |
YR22,31;YR29..USA UPPER,LIGHT BROWN,LIGHT BROWN,TRIM4# |
1 | ||
| 88565-8700106 |
YR29..USA LIGHT BROWN,TRIM4#,UPPER |
3 | ||
| 87226-87003 |
YR22,31;YR29..USA LOWER |
1 | ||
| 88565-8700103 |
YR29..USA GRAY,TRIM1#,UPPER |
3 | ||
| 87226 - ADAPTER, AIR DUCT | ||||
| 87226-87003 |
YR29..USA LOWER |
1 | ||
| 88565-8700103 |
YR22,31;YR29..USA UPPER,GRAY,GRAY,TRIM1# |
1 | ||
| 88565-8700104 |
YR22,31;YR29..USA UPPER,LIGHT BLUE,LIGHT BLUE,TRIM8# |
1 | ||
| 88565-8700104 |
YR29..USA LIGHT BLUE,TRIM8#,UPPER |
3 | ||
| 88565-8700106 |
YR22,31;YR29..USA UPPER,LIGHT BROWN,LIGHT BROWN,TRIM4# |
1 | ||
| 88565-8700106 |
YR29..USA LIGHT BROWN,TRIM4#,UPPER |
3 | ||
| 87226-87003 |
YR22,31;YR29..USA LOWER |
1 | ||
| 88565-8700103 |
YR29..USA GRAY,TRIM1#,UPPER |
3 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88560-8700213 |
YR2#..USA SHADOW GRAY,TRIM1# |
1 | ||
| 88560-8700216 |
YR2#..USA SABLE,TRIM4# |
1 | ||
| 88560-8700214 |
YR2#..USA BLUE,TRIM8# |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-2801003 |
YR29..USA GRAY,TRIM1# |
6 | ||
| 88570-2801004 |
YR22,31;YR29..USA LIGHT BLUE,TRIM8# |
2 | ||
| 88570-2801004 |
YR29..USA LIGHT BLUE,TRIM8# |
6 | ||
| 88570-2801006 |
YR29..USA LIGHT BROWN,TRIM4# |
6 | ||
| 88570-2801003 |
YR22,31;YR29..USA GRAY,TRIM1# |
2 | ||
| 88570-2801006 |
YR22,31;YR29..USA LIGHT BROWN,TRIM4# |
2 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-2801003 |
YR29..USA GRAY,TRIM1# |
6 | ||
| 88570-2801004 |
YR22,31;YR29..USA LIGHT BLUE,TRIM8# |
2 | ||
| 88570-2801004 |
YR29..USA LIGHT BLUE,TRIM8# |
6 | ||
| 88570-2801006 |
YR29..USA LIGHT BROWN,TRIM4# |
6 | ||
| 88570-2801003 |
YR22,31;YR29..USA GRAY,TRIM1# |
2 | ||
| 88570-2801006 |
YR22,31;YR29..USA LIGHT BROWN,TRIM4# |
2 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 88571-8700116 |
YR29;YR22..USA BROWN,TRIM4# |
1 | ||
| 88571-8700113 |
YR29;YR22..USA SHADOW GRAY,TRIM1# |
1 | ||
| 88571-8700114 |
YR29;YR22..USA BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90109-06032 | ||||
| 90159-50144 | ||||
| 90179-06115 | ||||
| 90467-05022 | ||||
| 91651-40616 | ||||
| 91655-40616 | ||||
| 93210-56016 | ||||
| 93540-15010 | ||||
| 93560-15014 | ||||
| 93567-54512 | ||||
| 93568-55016 | ||||
