YR29LV-PREA (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

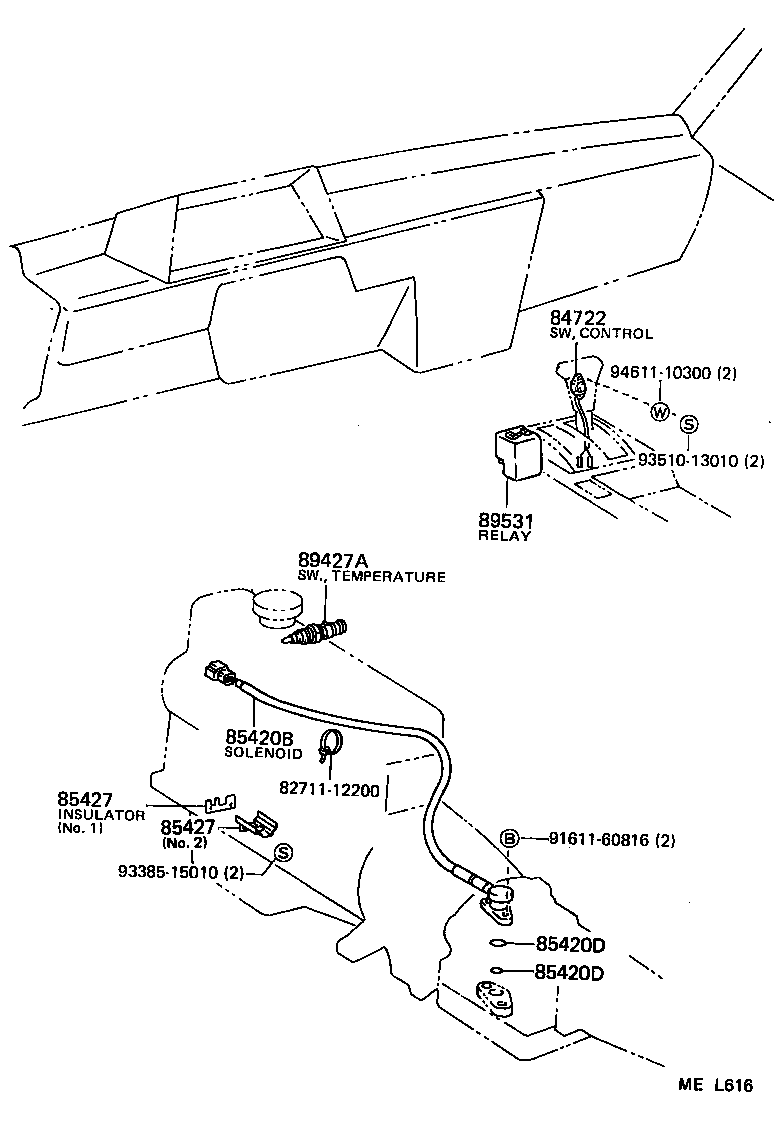

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-2004024 |
YR29,32..4FC..USA BLUE,TRIM8# |
1 | ||
| 84722-32010 |
YR29,32..4FC CHROME PLATING |
1 | ||
| 84722-2004003 |
YR29,32..4FC..USA GRAY,TRIM1# |
1 | ||
| 84722-2004016 |
YR29,32..4FC..USA BROWN,TRIM4# |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-28020 |
YR2#,3#..4FC |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
YR2#,3#..4FC ID=10 |
1 | ||
| 90301-23001 |
YR2#,3#..4FC ID=23 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
YR2#,3#..4FC ID=10 |
1 | ||
| 90301-23001 |
YR2#,3#..4FC ID=23 |
1 | ||
| 85427 - INSULATOR, OVERDRIVE SOLENOID | ||||
| 85427-28030 |
YR2#..4FC NO.2 |
1 | ||
| 85427-28020 |
YR2#..4FC NO.1 |
1 | ||
| 85427 - INSULATOR, OVERDRIVE SOLENOID | ||||
| 85427-28030 |
YR2#..4FC NO.2 |
1 | ||
| 85427-28020 |
YR2#..4FC NO.1 |
1 | ||
| 89427A - SWITCH, TEMPERATURE | ||||
| 89428-20050 |
YR2#,3#..4FC |
1 | ||
| 89531 - RELAY, TRANSMISSION CONTROL | ||||
| 89531-28010 |
YR2#..4FC |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 91611-60816 | ||||
| 93385-15010 | ||||
| 93510-13010 | ||||
| 94611-10300 | ||||
