YR29LV-PREA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

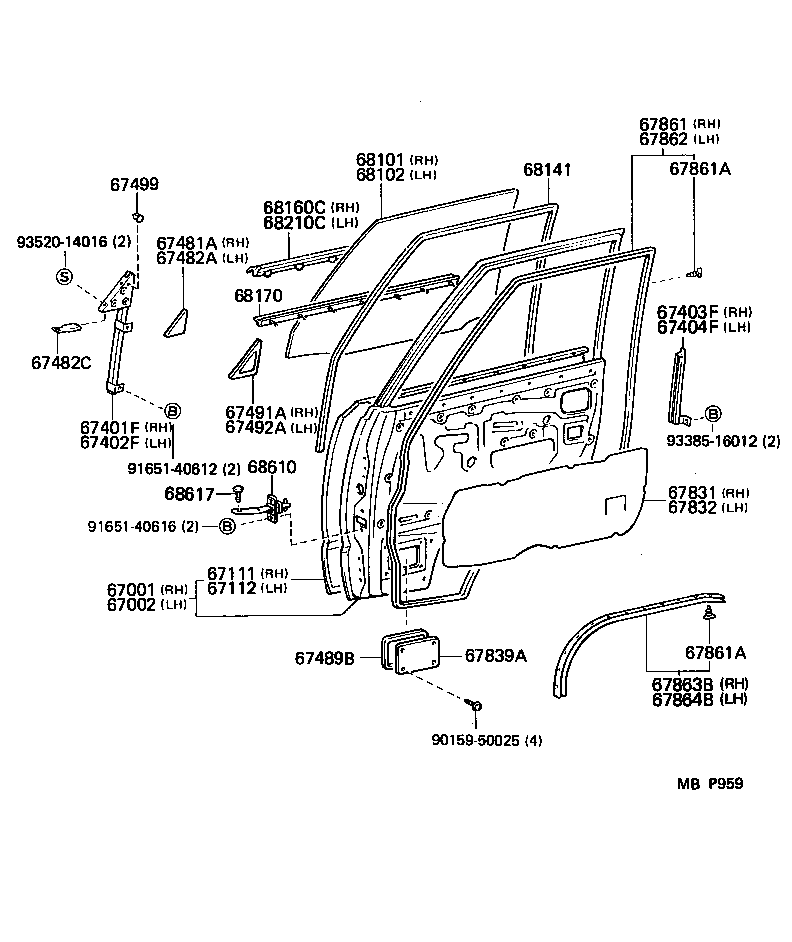

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67403F 67404F 67481A 67482A 67482C 67489B 67491A 67492A 67499 67831 67832 67839A 67861 67861A 67861A 67862 67863B 67864B 68101 68102 68141 68160C 68170 68210C 68610 68617 9015950025 9165140612 9165140616 9338516012 9352014016
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-28020

YR29,32

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-28020

YR29,32

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-87004

YR2#,3#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-87003

YR2#,3#

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-87003

YR2#,3#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-87002

YR2#,3#

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-28010

YR2#,3#

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-28010

YR2#,3#

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-16130

YR2#,3#

 1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67481-16130

YR2#,3#

 1
67482C - PACKING, FRONT DOOR FRONT LOWER FRAME
67482-28010

YR2#,3#

 2
67489B - PACKING, FRONT DOOR LOWER COVER
67489-87001

YR2#,3#

 2
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-87001

YR2#,3#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-87001

YR2#,3#

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30010

YR2#,3#

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-87002

YR2#,3#..DLX,STD

 1
67801-28020

YR29,32..USA

W(POWER WINDOW)

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-87002

YR2#,3#..DLX,STD

 1
67802-28030

YR29,32..USA

W(POWER WINDOW)

 1
67839A - COVER, FRONT DOOR SERVICE HOLE, LOWER
67839-87001

YR2#,3#

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-87003

YR2#,3#

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

YR2#,3#

LH

 42
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

YR2#,3#

LH

 42
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-87003

YR2#,3#

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-87001

YR2#,3#

 1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-87001

YR2#,3#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-87004

YR29..VSG

*TT,T=4.0

 1
68111-87002

YR2#,3#..DLX,STD

*TEM,T=4.0

 1
68111-87005

YR29..VSG;YR22,31..LE

*TT,T=4.0,BRONZE

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-87002

YR2#,3#..DLX,STD

*TEM,T=4.0

 1
68112-87004

YR29..VSG;YR22,31..LE

*TT,T=4.0,BRONZE

 1
68112-87003

YR29..VSG

*TT,T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-87006

YR2#,3#

 2
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68160-87001

YR2#,3#..DLX,STD

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-87005

YR29,32

 2
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68160-87001

YR2#,3#..DLX,STD

 1
68610 - CHECK ASSY, FRONT DOOR
68610-12030

YR2#,3#

 2
68617 - PIN, FRONT DOOR CHECK
68617-90A00

YR2#,3#

 2
Common parts
90159-50025
91651-40612
91651-40616
93385-16012
93520-14016

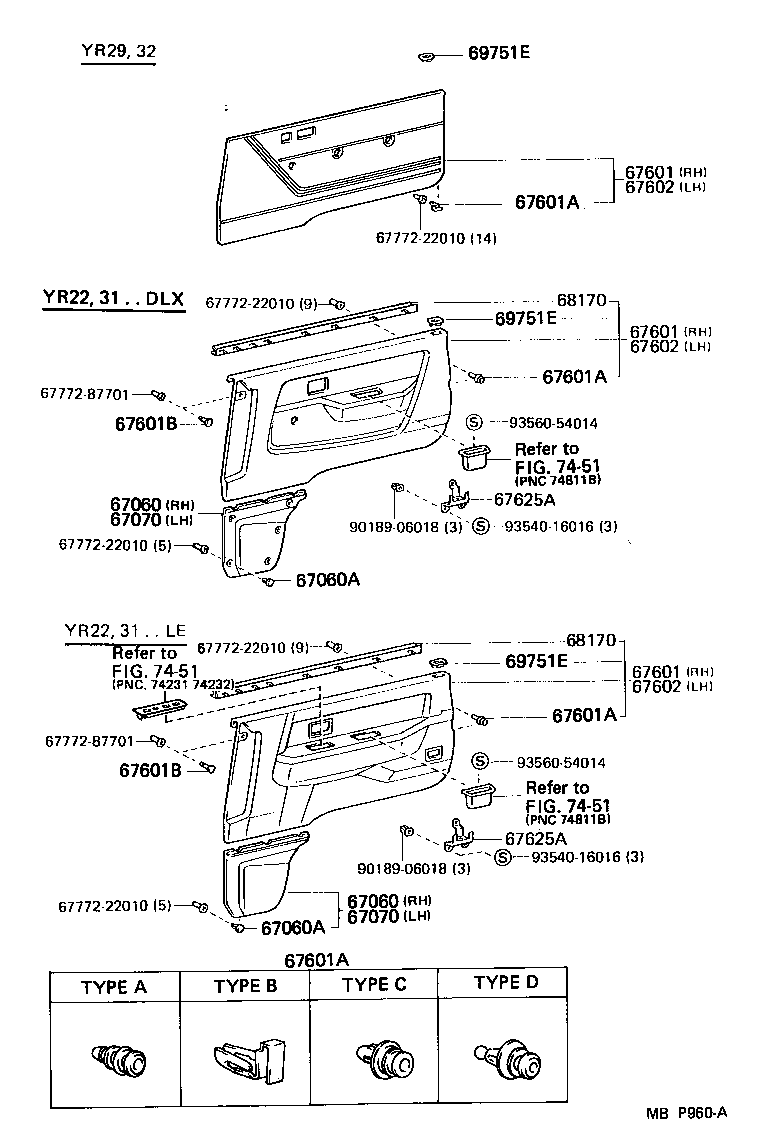

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 67060 67060 67060A 67060A 67070 67070 67601 67601 67601 67601A 67601A 67601A 67601A 67601B 67601B 67602 67602 67602 67625A 67625A 6777222010 6777222010 6777222010 6777222010 6777222010 6777287701 6777287701 68170 68170 69751E 69751E 69751E 7451 7451 7451 9018906018 9018906018 9354016016 9354016016 9356054014 9356054014
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2806204

YR29,32..USA

W(POWER WINDOW),BLUE,TRIM8#

 1
67610-2806203

YR29,32..USA

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-2807104

YR29,32

BLUE,TRIM8#

 1
67610-2806206

YR29,32..USA

W(POWER WINDOW),SABLE,TRIM4#

 1
67610-2807106

YR29,32

SABLE,TRIM4#

 1
67610-2807103

YR29,32

SHADOW GRAY,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2806204

YR29,32..USA

W(POWER WINDOW),BLUE,TRIM8#

 1
67610-2806203

YR29,32..USA

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-2807104

YR29,32

BLUE,TRIM8#

 1
67610-2806206

YR29,32..USA

W(POWER WINDOW),SABLE,TRIM4#

 1
67610-2807106

YR29,32

SABLE,TRIM4#

 1
67610-2807103

YR29,32

SHADOW GRAY,TRIM1#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-2806204

YR29,32..USA

W(POWER WINDOW),BLUE,TRIM8#

 1
67610-2806203

YR29,32..USA

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67610-2807104

YR29,32

BLUE,TRIM8#

 1
67610-2806206

YR29,32..USA

W(POWER WINDOW),SABLE,TRIM4#

 1
67610-2807106

YR29,32

SABLE,TRIM4#

 1
67610-2807103

YR29,32

SHADOW GRAY,TRIM1#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-20022

YR29,32..USA

 28
67771-20022

YR29,32

TYPE A

 28
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-20022

YR29,32..USA

 28
67771-20022

YR29,32

TYPE A

 28
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-20022

YR29,32..USA

 28
67771-20022

YR29,32

TYPE A

 28
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-20022

YR29,32..USA

 28
67771-20022

YR29,32

TYPE A

 28
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2806204

YR29,32..USA

W(POWER WINDOW),BLUE,TRIM8#

 1
67620-2806203

YR29,32..USA

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67620-2806206

YR29,32..USA

W(POWER WINDOW),SABLE,TRIM4#

 1
67620-2807104

YR29,32

BLUE,TRIM8#

 1
67620-2807106

YR29,32

BROWN,TRIM4#

 1
67620-2807103

YR29,32

SHADOW GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2806204

YR29,32..USA

W(POWER WINDOW),BLUE,TRIM8#

 1
67620-2806203

YR29,32..USA

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67620-2806206

YR29,32..USA

W(POWER WINDOW),SABLE,TRIM4#

 1
67620-2807104

YR29,32

BLUE,TRIM8#

 1
67620-2807106

YR29,32

BROWN,TRIM4#

 1
67620-2807103

YR29,32

SHADOW GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-2806204

YR29,32..USA

W(POWER WINDOW),BLUE,TRIM8#

 1
67620-2806203

YR29,32..USA

W(POWER WINDOW),SHADOW GRAY,TRIM1#

 1
67620-2806206

YR29,32..USA

W(POWER WINDOW),SABLE,TRIM4#

 1
67620-2807104

YR29,32

BLUE,TRIM8#

 1
67620-2807106

YR29,32

BROWN,TRIM4#

 1
67620-2807103

YR29,32

SHADOW GRAY,TRIM1#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-87005

YR29,32

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-87005

YR29,32

 2
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2003101

YR29,32

BLACK,TRIM1#,4#

 2
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2003101

YR29,32

BLACK,TRIM1#,4#

 2
69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB
69751-2003101

YR29,32

BLACK,TRIM1#,4#

 2
Common parts
67772-22010
67772-87701
90189-06018
93540-16016
93560-54014
Linked diagrams
7451
