YR29LV-PRBEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )YR29,32

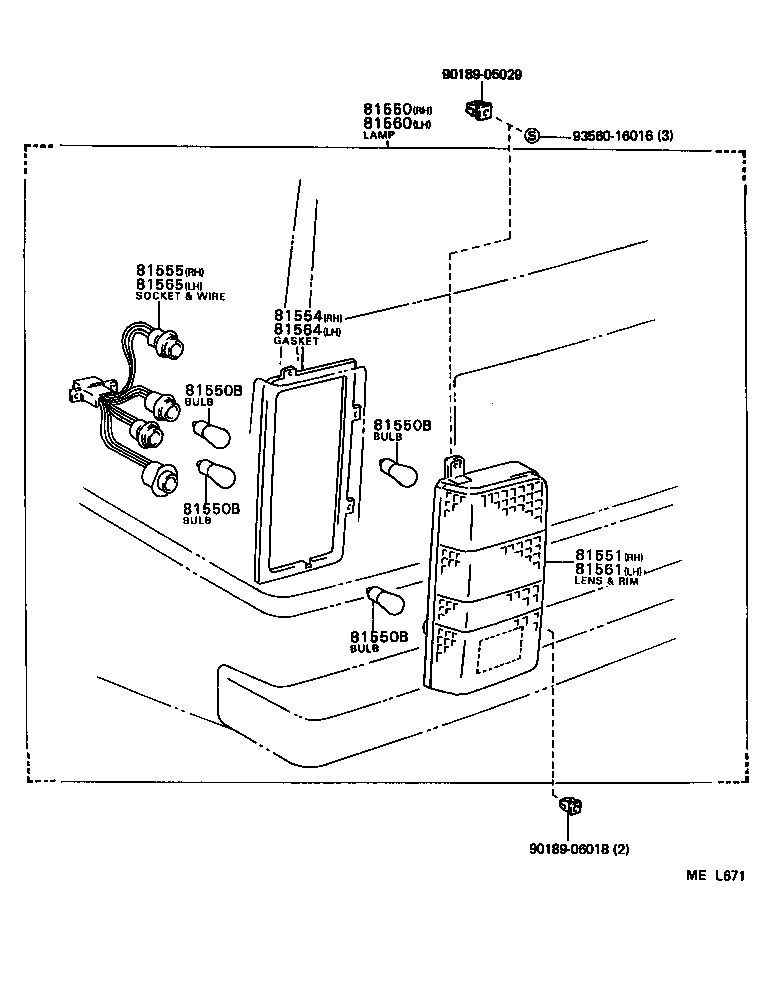

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-28010 |
YR29,32 |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
YR29,32 12V 27W |
4 | ||
| 99132-21270 |
YR2#,3# 12V 27/8W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
YR29,32 12V 27W |
4 | ||
| 99132-21270 |
YR2#,3# 12V 27/8W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
YR29,32 12V 27W |
4 | ||
| 99132-21270 |
YR2#,3# 12V 27/8W |
4 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11270 |
YR29,32 12V 27W |
4 | ||
| 99132-21270 |
YR2#,3# 12V 27/8W |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-28010 |
YR29,32 |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-87003 |
YR29,32 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-28010 |
YR29,32 |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-28010 |
YR29,32 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-28010 |
YR29,32 |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81564-87003 |
YR29,32 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-28010 |
YR29,32 |
1 | ||
| Common parts | ||||
| 90189-05029 | ||||
| 90189-06018 | ||||
| 93560-16016 | ||||
