YR29LV-PRBEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )YR29,32

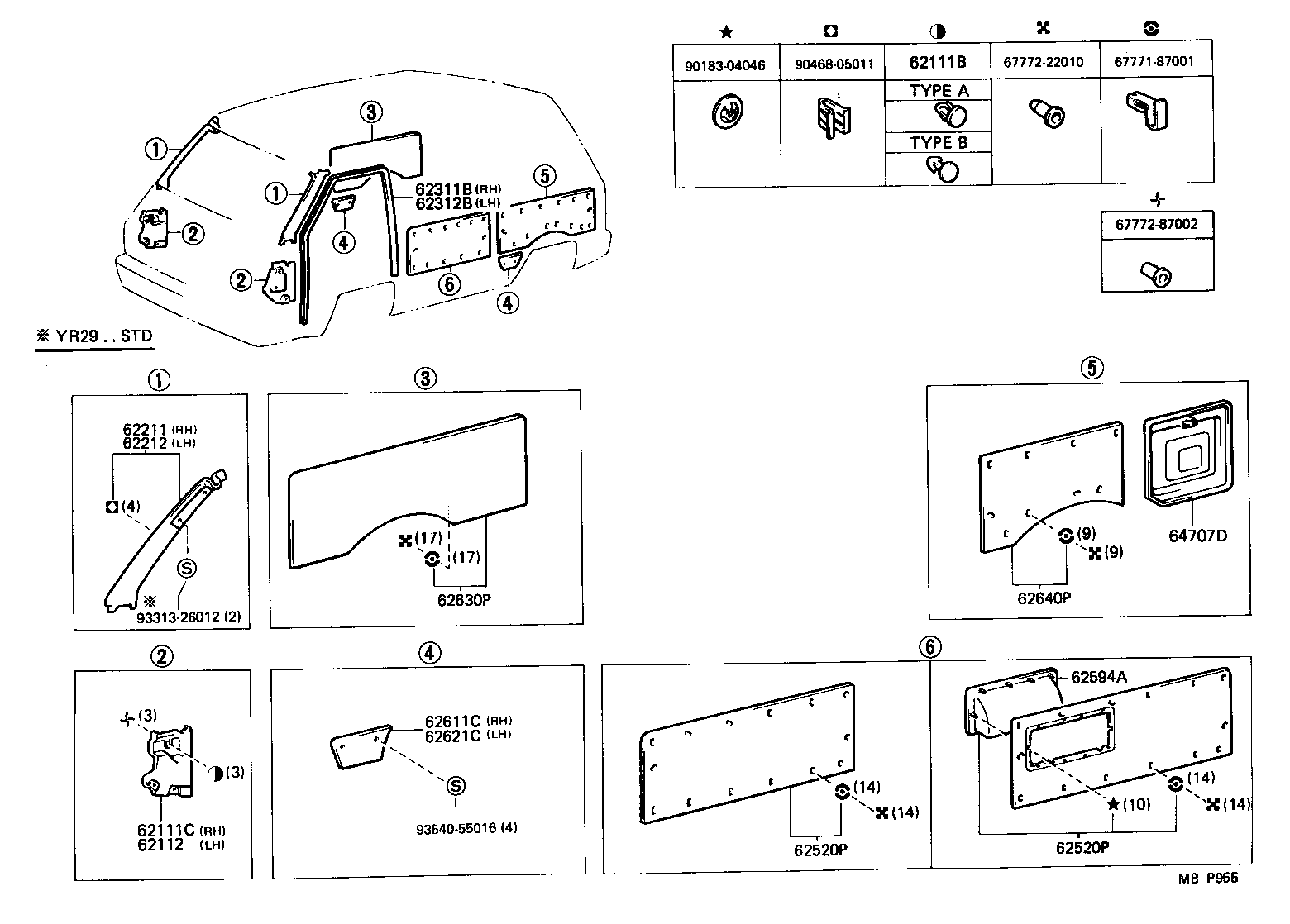

Click highlighted areas on diagram

diagram 62111B 62111C 62112 62211 62212 62311B 62312B 62520P 62520P 62594A 62611C 62621C 62630P 62640P 64707D 6777187001 6777222010 6777287002 9018304046 9046805011 9331326012 9354055016
Part # Description Qty Price
62111B - CLIP(FOR COWL SIDE TRIM)
90467-0806514

YR2#,3#

BLUE,TRIM8#,TYPE A

 5
90467-0806516

YR2#,3#

BROWN,TRIM4#,TYPE A

 5
90467-0806503

YR2#,3#

SHADOW GRAY,TRIM1#,TYPE A

 5
90467-1207813

YR2#,3#

SHADOW GRAY,TRIM1#,TYPE B

 1
90467-1207856

YR2#,3#

BROWN,TRIM4#,TYPE B

 1
90467-1207834

YR2#,3#

BLUE,TRIM8#,TYPE B

 1
62111C - BOARD, COWL SIDE TRIM, RH
62111-2801016

YR2#,3#

SABLE,TRIM4#

 1
62111-2801014

YR2#,3#

BLUE,TRIM8#

 1
62111-2801013

YR2#,3#

SHADOW GRAY,TRIM1#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-8700314

YR2#,3#

BLUE,TRIM8#

 1
62112-8700316

YR2#,3#

SABLE,TRIM4#

 1
62112-8700313

YR2#,3#

SHADOW GRAY,TRIM1#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-2802004

YR2#,3#..DLX,STD

LIGHT BLUE,TRIM8#

 1
62211-2802003

YR2#,3#..DLX,STD

GRAY,TRIM1#

 1
62211-2802006

YR2#,3#..DLX,STD

LIGHT SABLE,TRIM4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-2802003

YR2#,3#..DLX,STD

GRAY,TRIM1#

 1
62212-2802006

YR2#,3#..DLX,STD

LIGHT SABLE,TRIM4#

 1
62212-2802004

YR2#,3#..DLX,STD

LIGHT BLUE,TRIM8#

 1
62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62311-2803004

YR2#,3#

LIGHT BLUE,TRIM8#

 1
62311-2803003

YR2#,3#

GRAY,TRIM1#

 1
62311-2803006

YR2#,3#

LIGHT SABLE,TRIM4#

 1
62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62312-2803004

YR2#,3#

LIGHT BLUE,TRIM8#

 1
62312-2803006

YR2#,3#

LIGHT SABLE,TRIM4#

 1
62312-2803003

YR2#,3#

GRAY,TRIM1#

 1
62520P - PANEL ASSY, QUARTER TRIM, FRONT LH
62520-28080

YR29,32

 1
62520-2809016

YR29,32

SABLE,TRIM4#

 1
62520-2809004

YR29,32

BLUE,TRIM8#

 1
62520-2809003

YR29,32

SHADOW GRAY,TRIM1#

 1
62520P - PANEL ASSY, QUARTER TRIM, FRONT LH
62520-28080

YR29,32

 1
62520-2809016

YR29,32

SABLE,TRIM4#

 1
62520-2809004

YR29,32

BLUE,TRIM8#

 1
62520-2809003

YR29,32

SHADOW GRAY,TRIM1#

 1
62594A - POCKET, QUARTER TRIM, NO.1
62594-8700314

YR29,32

BLUE,TRIM8#

 1
62594-8700316

YR29,32

SABLE,TRIM4#

 1
62594-8700303

YR29,32

SHADOW GRAY,TRIM1#

 1
62611C - BOARD, SIDE TRIM NO.1, RH
62611-28010

YR29,32

 1
62621C - BOARD, SIDE TRIM NO.1, LH
62621-28010

YR29,32

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62630-28070

YR29,32

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62640-28080

YR29,32

 1
64707D - COVER SUB-ASSY, QUARTER TRIM JACK
64707-8700203

YR2#,3#

GRAY,TRIM1#

 1
64707-8700206

YR2#,3#

LIGHT SABLE,TRIM4#

 1
64707-8700204

YR2#,3#

LIGHT BLUE,TRIM8#

 1
Common parts
67771-87001
67772-22010
67772-87002
90183-04046
90468-05011
93313-26012
93540-55016
