YR29LV-PRBEK (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

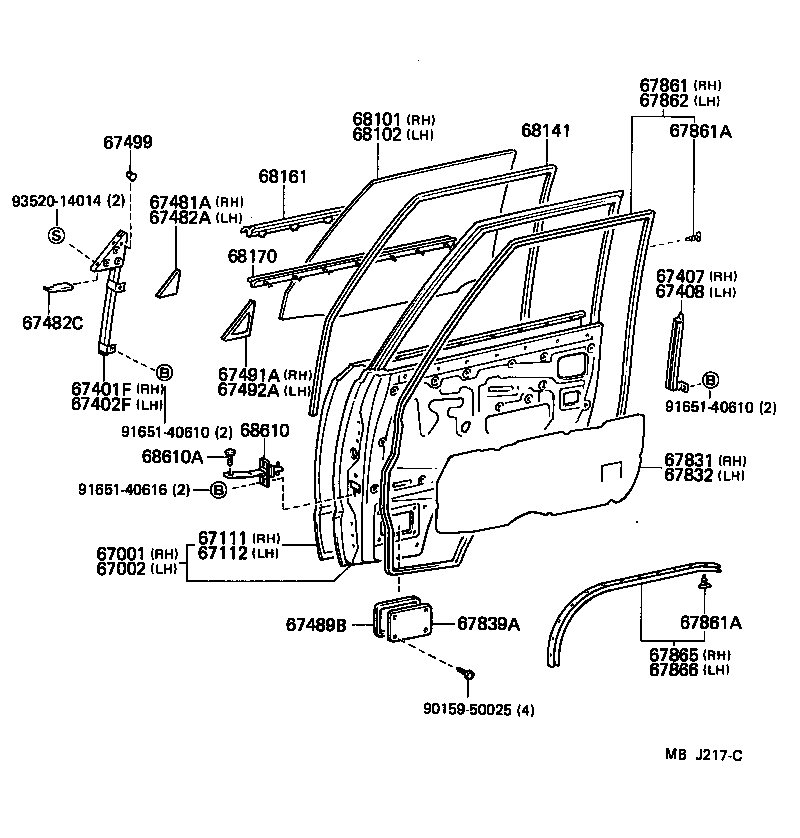

ILLUST NO. 1 OF 2(8508- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401F 67402F 67407 67408 67481A 67482A 67482C 67489B 67491A 67492A 67499 67831 67832 67839A 67861 67861A 67861A 67862 67865 67866 68101 68102 68141 68161 68170 68610 68610A 9015950025 9165140610 9165140610 9165140616 9352014014
Part # Description Qty Price
67111 - PANEL, FRONT DOOR, OUTER RH
67111-87004

YR2#,3#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-87003

YR2#,3#

 1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-87001

YR2#

 1
67401-87003

YR2#,3#

 1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-87002

YR2#,3#

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-28010

YR2#,3#

 1
67403-87001

YR2#

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-87001

YR2#

 1
67404-28010

YR2#,3#

 1
67481A - SEAL, FRONT DOOR FRONT LOWER FRAME, RH
67481-16130

YR2#,3#

 1
67482A - SEAL, FRONT DOOR FRONT LOWER FRAME, LH
67481-16130

YR2#,3#

 1
67482C - PACKING, FRONT DOOR FRONT LOWER FRAME
67482-28010

YR2#,3#

 2
67489B - PACKING, FRONT DOOR LOWER COVER
67489-87001

YR2#,3#

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-87001

YR2#,3#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-87001

YR2#,3#

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30010

YR2#,3#

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-87002

YR2#,3#..DLX,STD

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-87002

YR2#,3#..DLX,STD

 1
67839A - COVER, FRONT DOOR SERVICE HOLE, LOWER
67839-87001

YR2#,3#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-87003

YR2#,3#

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

YR2#,3#

 84
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-30040

YR2#,3#

 84
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-87003

YR2#,3#

 1
67865 - WEATHERSTRIP, FRONT DOOR, LOWER RH
67863-87001

YR2#,3#

 1
67866 - WEATHERSTRIP, FRONT DOOR LOWER, LH
67864-87001

YR2#,3#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-87002

YR2#,3#..DLX,STD

*TEM,T=4.0,*TEM,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-87002

YR2#,3#..DLX,STD

*TEM,T=4.0,*TEM,T=4.0

 1
68141 - RUN, FRONT DOOR GLASS
68141-87001

YR2#

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-87001

YR2#,3#..DLX,STD

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-87005

YR21,27,29,32

 2
68610 - CHECK ASSY, FRONT DOOR
68610-12030

YR2#,3#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-22010

YR2#

 2
Common parts
90159-50025
91651-40610
91651-40616
93520-14014

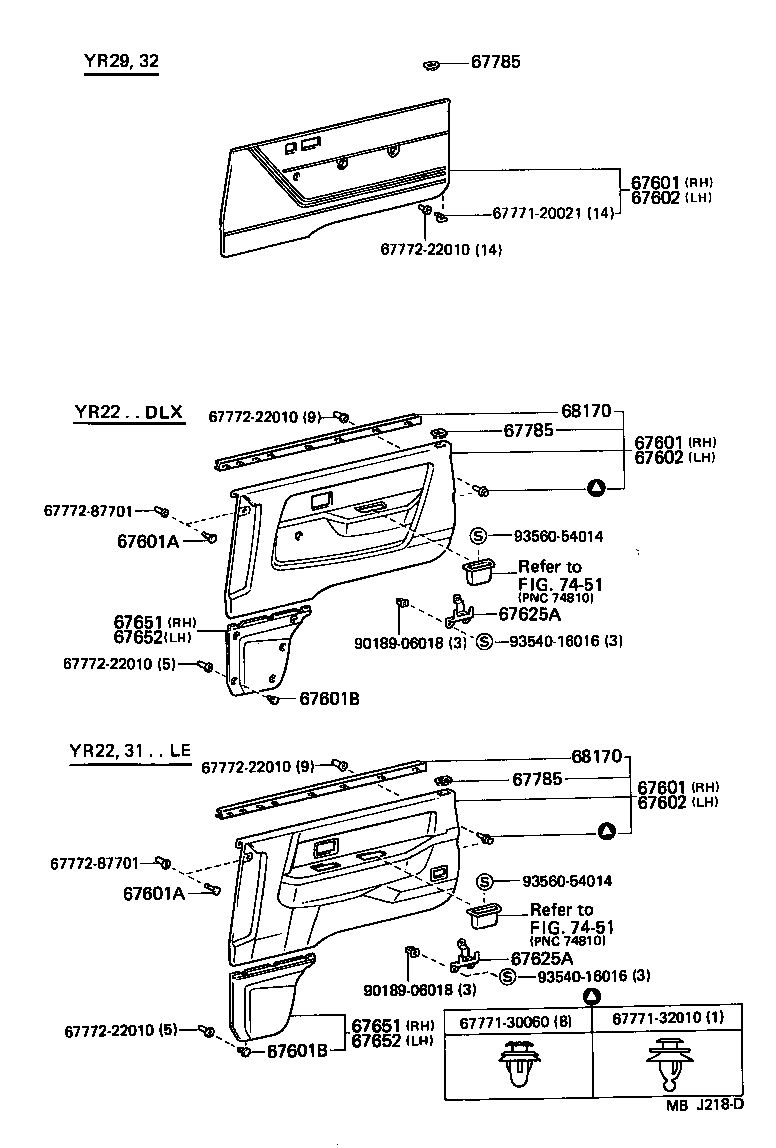

ILLUST NO. 2 OF 2(8508- )

Click highlighted areas on diagram

diagram 67601 67601 67601 67601A 67601A 67601B 67601B 67602 67602 67602 67625A 67625A 67651 67651 67652 67652 6777120021 6777130060 6777132010 6777222010 6777222010 6777222010 6777222010 6777222010 6777287701 6777287701 67785 67785 67785 68170 68170 7451 7451 9018906018 9018906018 9354016016 9354016016 9356054014 9356054014
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-87024

YR2#..DLX,STD

BEIGE

 1
67610-2807105

YR29,32

BEIGE,BEIGE,TRIM4#

 1
67610-2807103

YR29,32

GRAY,SHADOW GRAY,TRIM1#,4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-87024

YR2#..DLX,STD

BEIGE

 1
67610-2807105

YR29,32

BEIGE,BEIGE,TRIM4#

 1
67610-2807103

YR29,32

GRAY,SHADOW GRAY,TRIM1#,4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-87024

YR2#..DLX,STD

BEIGE

 1
67610-2807105

YR29,32

BEIGE,BEIGE,TRIM4#

 1
67610-2807103

YR29,32

GRAY,SHADOW GRAY,TRIM1#,4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-87008

YR2#..DLX,STD

BEIGE

 1
67620-2807105

YR29,32

BEIGE,BEIGE,TRIM4#

 1
67620-2807103

YR29,32

GRAY,SHADOW GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-87008

YR2#..DLX,STD

BEIGE

 1
67620-2807105

YR29,32

BEIGE,BEIGE,TRIM4#

 1
67620-2807103

YR29,32

GRAY,SHADOW GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-87008

YR2#..DLX,STD

BEIGE

 1
67620-2807105

YR29,32

BEIGE,BEIGE,TRIM4#

 1
67620-2807103

YR29,32

GRAY,SHADOW GRAY,TRIM1#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-87005

YR21,27,29,32

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-87005

YR21,27,29,32

 2
Common parts
67771-20021
67771-30060
67771-32010
67772-22010
67772-87701
90189-06018
93540-16016
93560-54014
Linked diagrams
7451
