YR29LV-PRBEK (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )YR29,32..CND

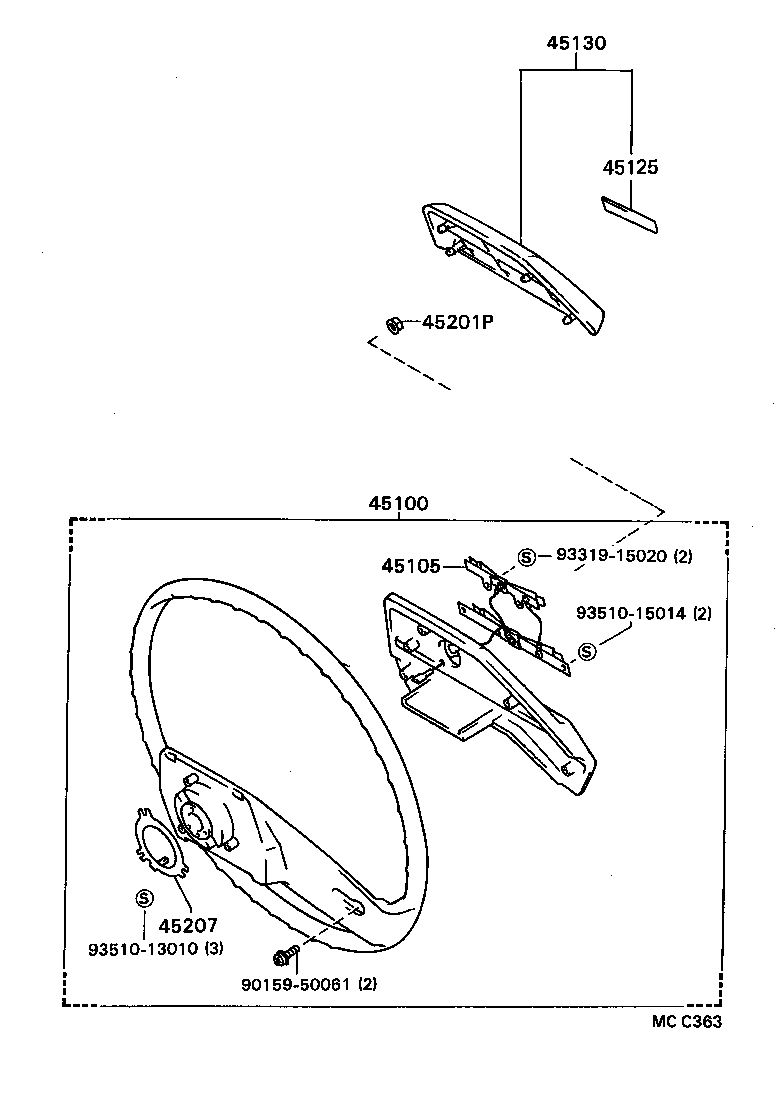

Click highlighted areas on diagram

diagram 45100 45105 45125 45130 45201P 45207 9015950061 9331915020 9351013010 9351015014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-3206014

YR29..CND

BLUE,BLUE,TRIM4#

 1
45100-3206003

YR29,32..CND

GRAY,SHADOW GRAY,TRIM1#,4#

 1
45100-3206005

YR29,32..CND

BEIGE,BEIGE,TRIM4#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-32040

YR29,32..CND

 1
45125 - MARK, STEERING WHEEL PAD
45125-28120

YR29,32..CND

 1
45130 - BUTTON ASSY, HORN
45130-2807003

YR29,32..CND

GRAY,GRAY,TRIM1#,4#

 1
45130-2807006

YR29,32..CND

BROWN,BROWN,TRIM4#

 1
45130-2807004

YR29..CND

BLUE,BLUE,TRIM4#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

YR2#,3#

 1
Common parts
90159-50061
93319-15020
93510-13010
93510-15014
