YR29LV-MRBEK (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

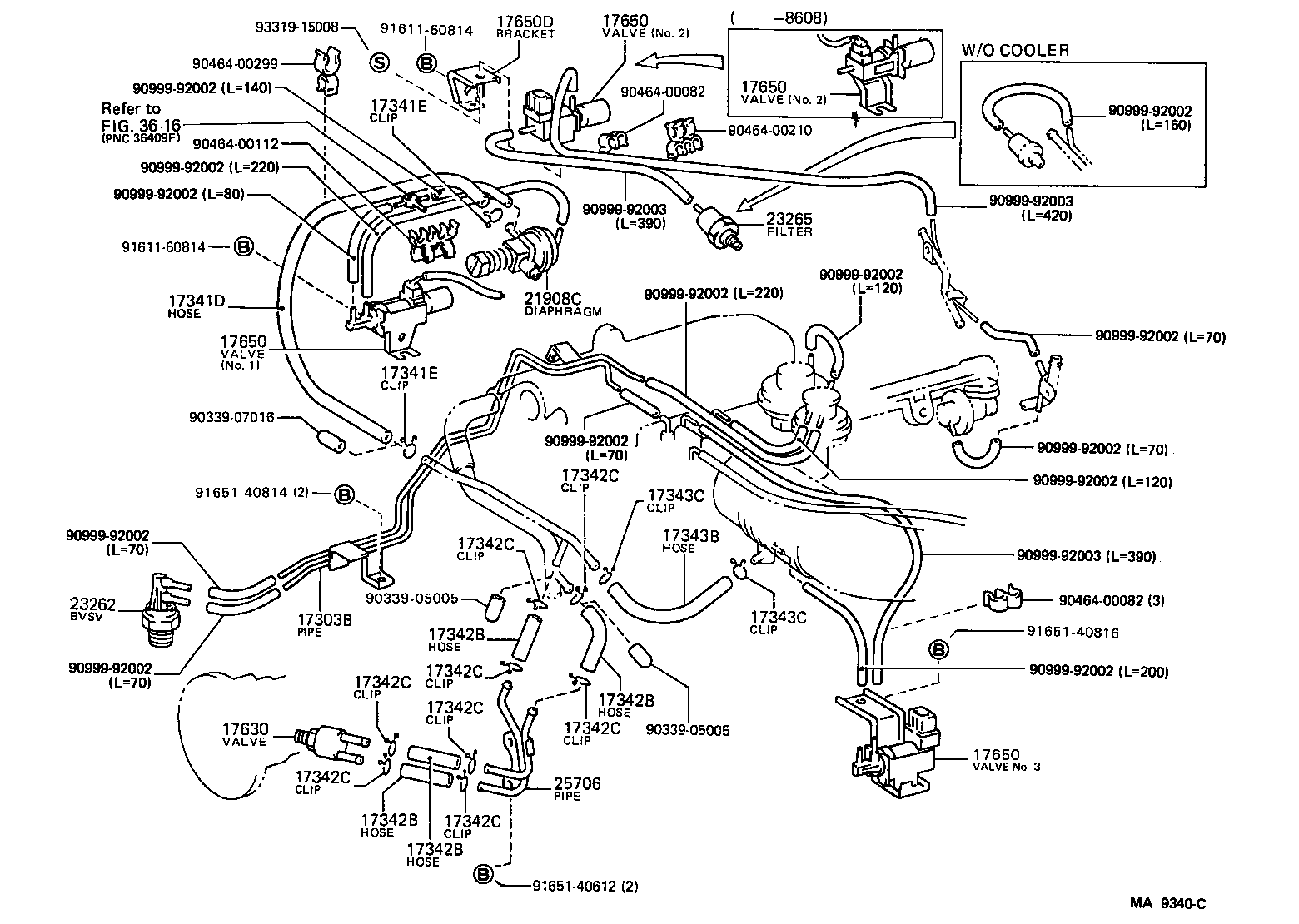

Click highlighted areas on diagram

diagram 17303B 17341D 17341E 17341E 17342B 17342B 17342B 17342B 17342C 17342C 17342C 17342C 17342C 17342C 17342C 17342C 17343B 17343C 17343C 17630 17650 17650 17650 17650 17650D 21908C 23262 23265 25706 3616 9033905005 9033905005 9033907016 9046400082 9046400082 9046400112 9046400210 9046400299 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992003 9161160814 9161160814 9165140612 9165140814 9165140816 9331915008
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-73011

4YEC..YR2#,3#

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-73020

3YEC,4YEC..YR2#,3#

W/COOLER,W/PS & COOLER

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-11085

3YEC,4YEC..YR2#

W/O PS

 2
90467-12058

3YEC,4YEC..YR2#,3#

 2
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-11085

3YEC,4YEC..YR2#

W/O PS

 2
90467-12058

3YEC,4YEC..YR2#,3#

 2
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-12127

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 4
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-12127

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 4
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-12127

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 4
17342B - HOSE, NO.2(FOR IDLE-UP)
90445-12127

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 4
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

 8
17343B - HOSE, NO.3(FOR IDLE-UP)
90445-12130

3YEC,4YEC..YR2#,3#

W/PS OR COOLER

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

W/PS OR COOLER

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-12058

3YEC,4YEC..YR2#,3#

W/PS OR COOLER

 2
17630 - VALVE ASSY, AIR CONTROL
17630-28010

3YEC,4YEC..YR2#,3#

W/PS,W/PS & COOLER

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12005

4YEC..YR2#,3#

NO.3

 1
90910-12043

4YEC..YR2#,3#

W/COOLER,NO.2

 1
90910-12004

4YEC..YR2#

W/COOLER,NO.2

 1
90910-12043

4YEC..YR2#,3#

NO.2

 1
90910-12003

4YEC..YR2#,3#

W/COOLER,NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12005

4YEC..YR2#,3#

NO.3

 1
90910-12043

4YEC..YR2#,3#

W/COOLER,NO.2

 1
90910-12004

4YEC..YR2#

W/COOLER,NO.2

 1
90910-12043

4YEC..YR2#,3#

NO.2

 1
90910-12003

4YEC..YR2#,3#

W/COOLER,NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12005

4YEC..YR2#,3#

NO.3

 1
90910-12043

4YEC..YR2#,3#

W/COOLER,NO.2

 1
90910-12004

4YEC..YR2#

W/COOLER,NO.2

 1
90910-12043

4YEC..YR2#,3#

NO.2

 1
90910-12003

4YEC..YR2#,3#

W/COOLER,NO.1

 1
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12005

4YEC..YR2#,3#

NO.3

 1
90910-12043

4YEC..YR2#,3#

W/COOLER,NO.2

 1
90910-12004

4YEC..YR2#

W/COOLER,NO.2

 1
90910-12043

4YEC..YR2#,3#

NO.2

 1
90910-12003

4YEC..YR2#,3#

W/COOLER,NO.1

 1
17650D - BRACKET, VACUUM SWITCHING VALVE
25861-73010

4YEC..YR2#,3#

 1
21908C - DIAPHRAGM SUB-ASSY, IDLE-UP
88606-28010

3YEC,4YEC..YR2#,3#

W/COOLER,W/PS & COOLER

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05017

3YEC,4YEC..YR2#,3#

 1
23265 - FILTER, GAS, NO.1
90917-11022

3YEC,4YEC..YR2#,3#

W/COOLER

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
17645-73011

4YEC..YR2#,3#

W/PS,W/PS & COOLER

 1
Common parts
90339-05005
90339-07016
90464-00082
90464-00112
90464-00210
90464-00299
90999-92002
90999-92003
91611-60814
91651-40612
91651-40814
91651-40816
93319-15008
Linked diagrams
3616
