YR29LV-MRBEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

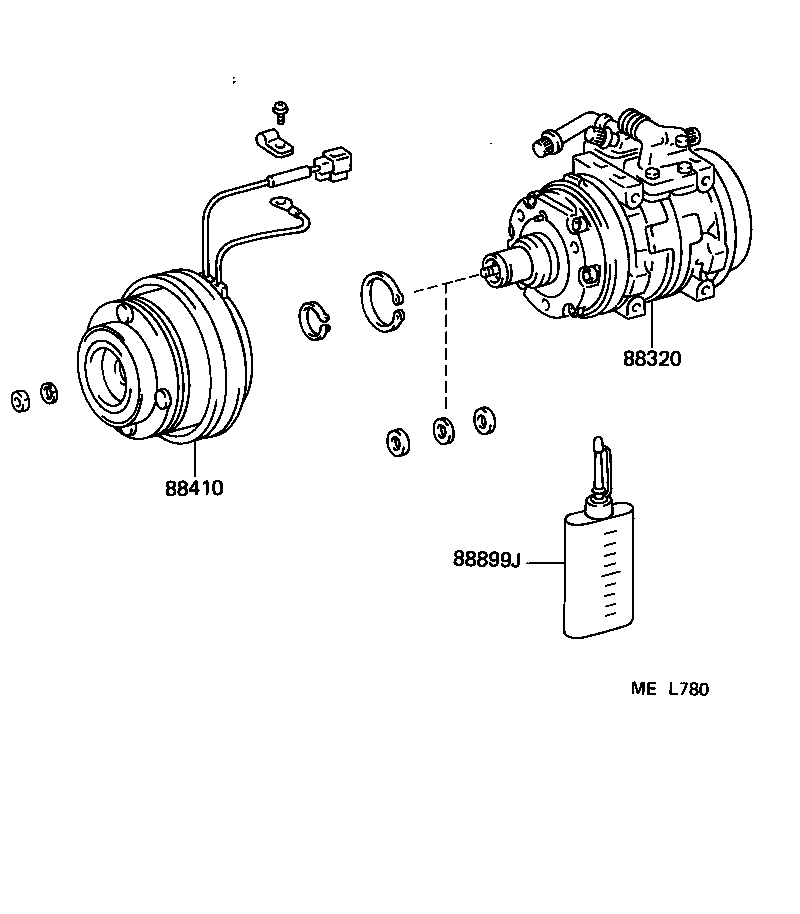

ILLUST NO. 2 OF 2(8808- )YR2#,31
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-28150 |
YR29..CND |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-28030 |
YR29..CND |
1 | ||

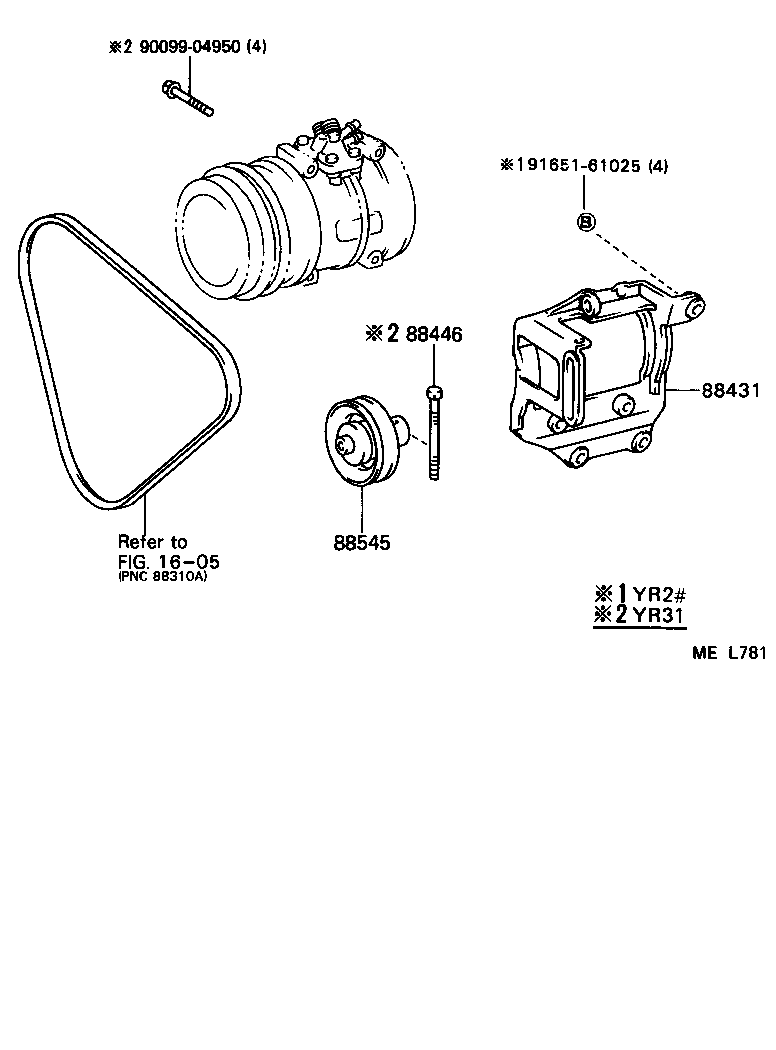

ILLUST NO. 1 OF 2(8808- )YR2#,31
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-35160 |
YR29..CND |
1 | ||
| 88545 - PULLEY ASSY, IDLE | ||||
| 88440-35020 |
YR29..CND |
1 | ||
| Common parts | ||||
| 90099-04950 | ||||
| 91651-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
