YR29LV-MRBEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

Click highlighted areas on diagram

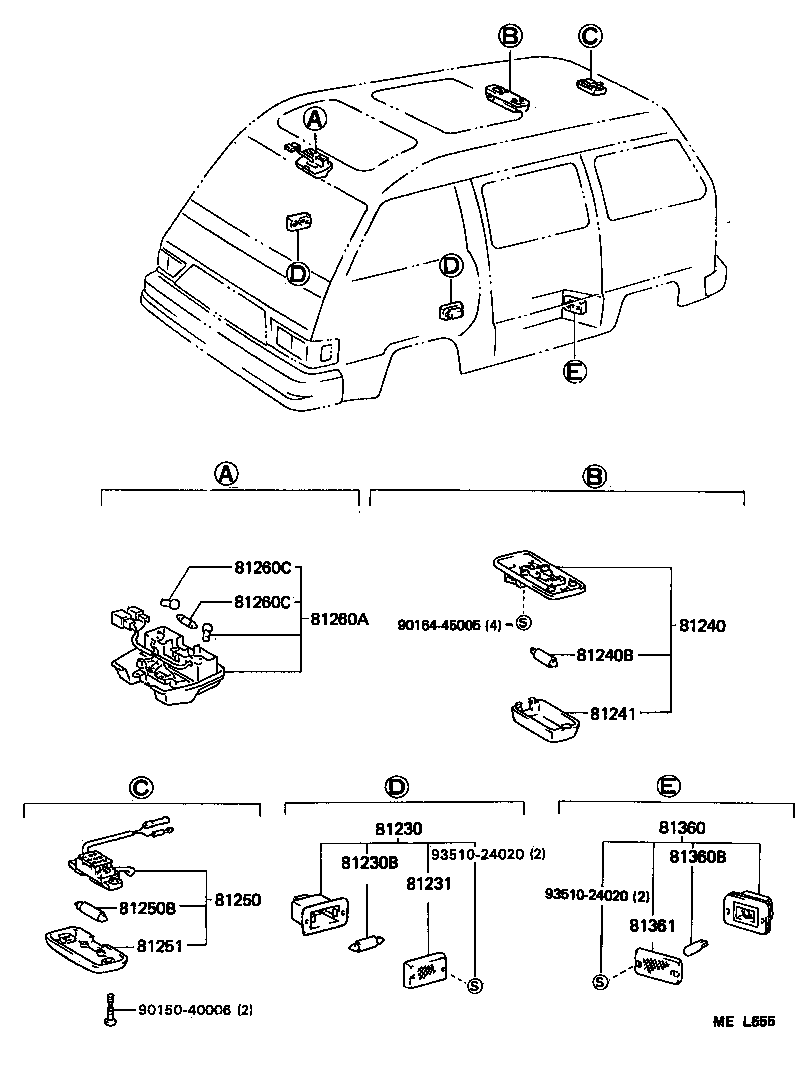

diagram 81230 81230B 81231 81240 81240B 81241 81250 81250B 81251 81260A 81260C 81260C 81360 81360B 81361 9015040006 9016445005 9351024020 9351024020
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-2207026

YR2#,3#

LIGHT BROWN,TRIM4#

 1
81240-2207003

YR2#,3#

GRAY,TRIM1#

 1
81240-2207024

YR2#,3#

DEEP BLUE,TRIM8#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

YR2#,3#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-20060

YR2#,3#

 1
Common parts
90150-40006
90164-45005
93510-24020
